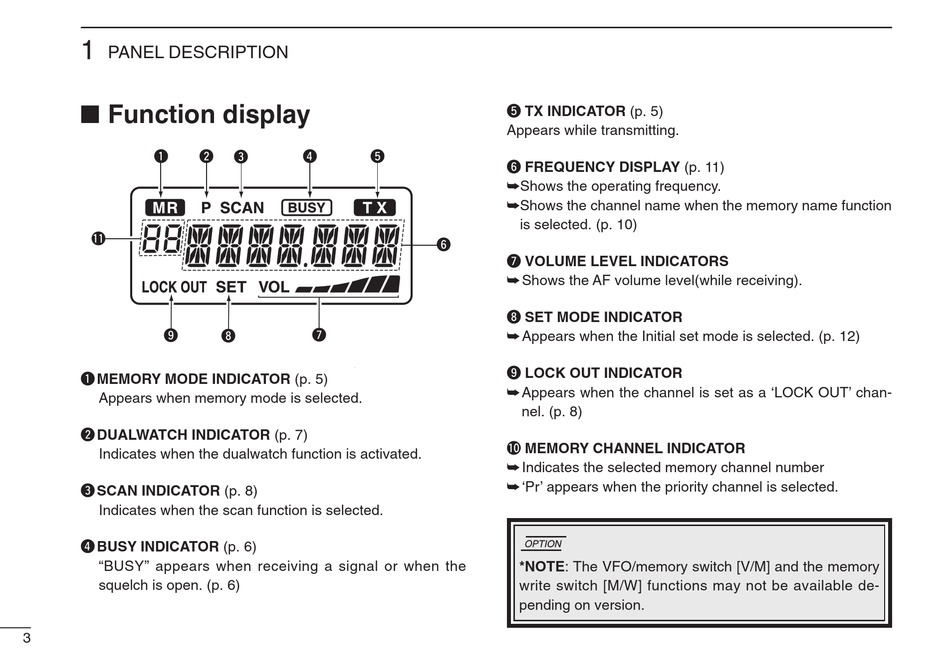

PANEL DESCRIPTION
I Function display
q
w
!1
o
q MEMORY MODE INDICATOR (p. 5)
Appears when memory mode is selected.
w DUALWATCH INDICATOR (p. 7)
Indicates when the dualwatch function is activated.
e SCAN INDICATOR (p. 8)
Indicates when the scan function is selected.
r BUSY INDICATOR (p. 6)
"BUSY" appears when receiving a signal or when the
squelch is open. (p. 6)
3
e
r
t
u
i
t TX INDICATOR (p. 5)
Appears while transmitting.
y FREQUENCY DISPLAY (p. 11)
➥Shows the operating frequency.
➥Shows the channel name when the memory name function
is selected. (p. 10)
y
u VOLUME LEVEL INDICATORS
➥ Shows the AF volume level(while receiving).
i SET MODE INDICATOR
➥ Appears when the Initial set mode is selected. (p. 12)
o LOCK OUT INDICATOR
➥ Appears when the channel is set as a 'LOCK OUT' chan-
nel. (p. 8)
!0 MEMORY CHANNEL INDICATOR
➥ Indicates the selected memory channel number
➥ 'Pr' appears when the priority channel is selected.
*NOTE: The VFO/memory switch [V/M] and the memory
write switch [M/W] functions may not be available de-
pending on version.
