9
OPC-871

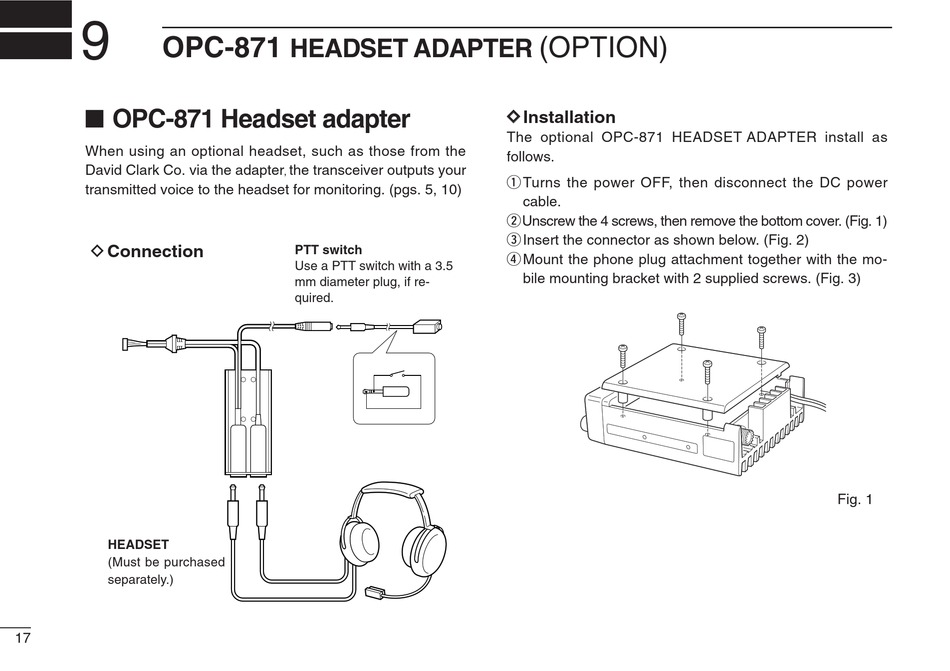

I OPC-871 Headset adapter

When using an optional headset, such as those from the
David Clark Co. via the adapter
transmitted voice to the headset for monitoring. (pgs. 5, 10)
D Connection
HEADSET
(Must be purchased
separately.)
17
HEADSET ADAPTER
the transceiver outputs your
,
PTT switch
Use a PTT switch with a 3.5
mm diameter plug, if re-
quired.
(OPTION)
D D Installation
The optional OPC-871 HEADSET ADAPTER install as
follows.
q Turns the power OFF, then disconnect the DC power
cable.
wUnscrew the 4 screws, then remove the bottom cover. (Fig. 1)
e Insert the connector as shown below. (Fig. 2)
r Mount the phone plug attachment together with the mo-
bile mounting bracket with 2 supplied screws. (Fig. 3)
Fig. 1
