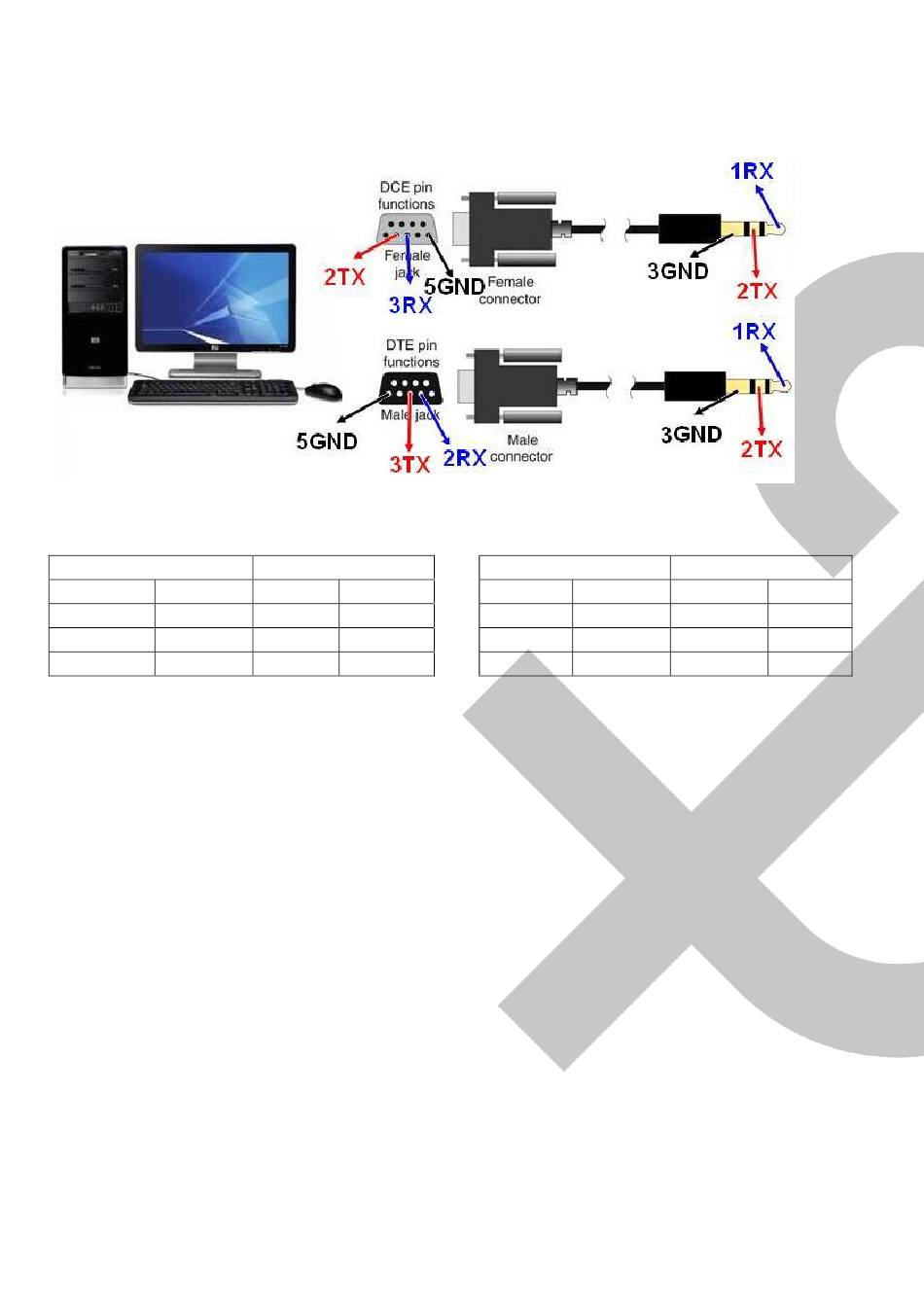

RS232 Define
DB9(F)/3.5mm STEREO PHONE JACK
RS232
Footprint Define
Pin 2 RX
Pin 3 TX
Pin 5 GND

Power Saving Mode

When there is no HDMI video signal input or TV is not connected or power off, this product will enter a
power saving mode to save power consumption; under a power saving mode still provides, RS-232 (Less
9600bps), IR, and CEC signal transmission.
Caution
1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave,
radio equipment, fluorescent lamp, high voltage power lines.
2. The cable must pull in straight to avoid any crosstalk interference and the transmission
Stability.
3. This device HDBaseT port is not general Ethernet signal; do not connect with Network devices to avoid
damage.
4. IR transmitter do not put near from receiver to avoid mutual interference.
DB9(F)/3.5mm STEREO PHONE JACK
DB9(M)/3.5mm STEREO PHONE JACK
3.5 mm Phone Jack
Footprint Define
Pin 1 TX
Pin 2 RX
Pin 3 GND
DB9(M)/3.5mm STEREO PHONE JACK
RS232
Footprint Define
Pin 2 TX
Pin 3 RX
Pin 5 GND
User Manual
VHE02EIP
3.5 mm Phone Jack
Footprint Define
Pin 1 TX
Pin 2 RX
Pin 3 GND
4
