SC&T VW01HA Vga

High Resolution VGA & Stereo Audio CAT5 Extender
ITEM NO.: VW01HA, VW02HA, VE01HA
VW01HA, VW02HA, VE01HA are designed for high resolution 1920x 1200 VGA signal with
audio over cost effective CAT5 cable to instead of VGA and Audio cable. No power requested
at receiver unit for easy installation at monitor side.
Wall Plate type or metal box type are available for different combination and installation Built
in stereo audio as AV extender, the most efficient way to move multimedia content from
player to display and could be used in shopping malls, public address systems, airports, train
& bus station, boardrooms, trade shows, computer based training application.

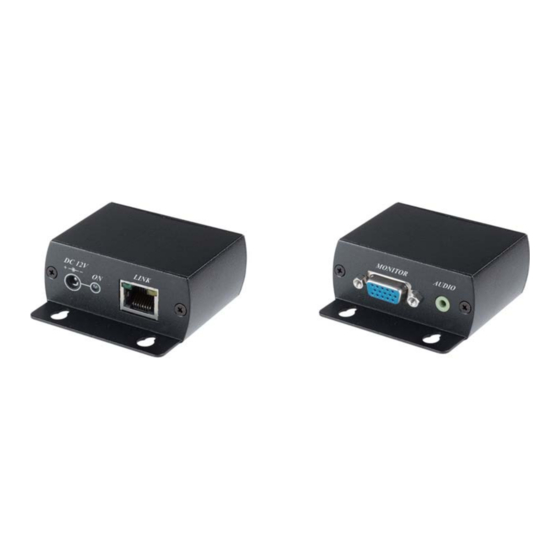

VE01HA Active High Resolution VGA CAT5 Extender With Stereo Audio
Active type, including VE01HAT transmitter and VE01HAR receiver.

Built in stereo audio.

Audio by digital encoding process for sound undistorted.

Supports high resolution up to 1920 x 1200 at 70 meters.

Use 4 pairs CAT5 UTP cable instead of VGA cable.

External power required at transmitter unit, no power requested at receiver unit.

Compatible with wall plate type, VW01HA, VW02HA.

VW01HA Wall Plate Hi Resolution VGA CAT5 Extender With Stereo Audio
Identical to VE01HA, but wall plate type.

Transmitter unit power could be sending from PCB inside 12VDC terminal or external 12V

DC Jack.
Wall Plate outer dimension: 70 x 115.

Compatible with metal box type VE01HA.

VW02HA Wall Plate Hi Resolution VGA CAT5 Extender With Stereo Audio
Identical to VW01HA, but wall plate outer dimension: 86 x 86 for European type.

Transmitter unit power could be sending from PCB inside 12VDC terminal or external 12V

DC Jack.
Compatible with metal box type VE01HA.

