SC&T VKM03T Manual

VGA & USB, AUDIO, RS232, IR CAT5 Extender
ITEM NO.: VKM03 VGA & USB with Stereo Audio, RS232, and IR CAT5 Extender
The VKM03 VGA, USB with Stereo Audio, RS232, and IR CAT5 extender design for extends all signals
over one CAT5 up to 140 meters, with local VGA monitor output. It provides superior video quality up
to 1920 x 1080 resolutions, and using cost effective Cat5e cable, instead of VGA, audio, RS232 cables,
for an easy, neater and reliable installation. Using a standard Gigabit Ethernet LAN system and add a
Gigabit switch could do multiple display.
network integration, and industrial control, hospital, education, security, and KVM extension.
Features:
Extend VGA, stereo audio, RS232, IR and USB signals over one CAT5E/CAT6 cable.

USB port support USB 2.0, USB 1.0 & USB 1.1

Full Duplex data communication.

Transmitter unit built in VGA loop output.

Receiver unit with 4 ports USB devices, to extend USB 2.0 peripheral devices, such as flash disk,

hard disk, keyboard, mouse, etc.
Supports up to 1920 x 1080.

Transmission range up to 140 meters over CAT5e, 180M over CAT6.

Support point to point and point to multi-display connections via Gigabit network switch.

Plug and play for easy operation.

Perfect for control remote machines and security monitoring systems, digital signage application.

Optional model: SR01 signal repeater for longer distance application.


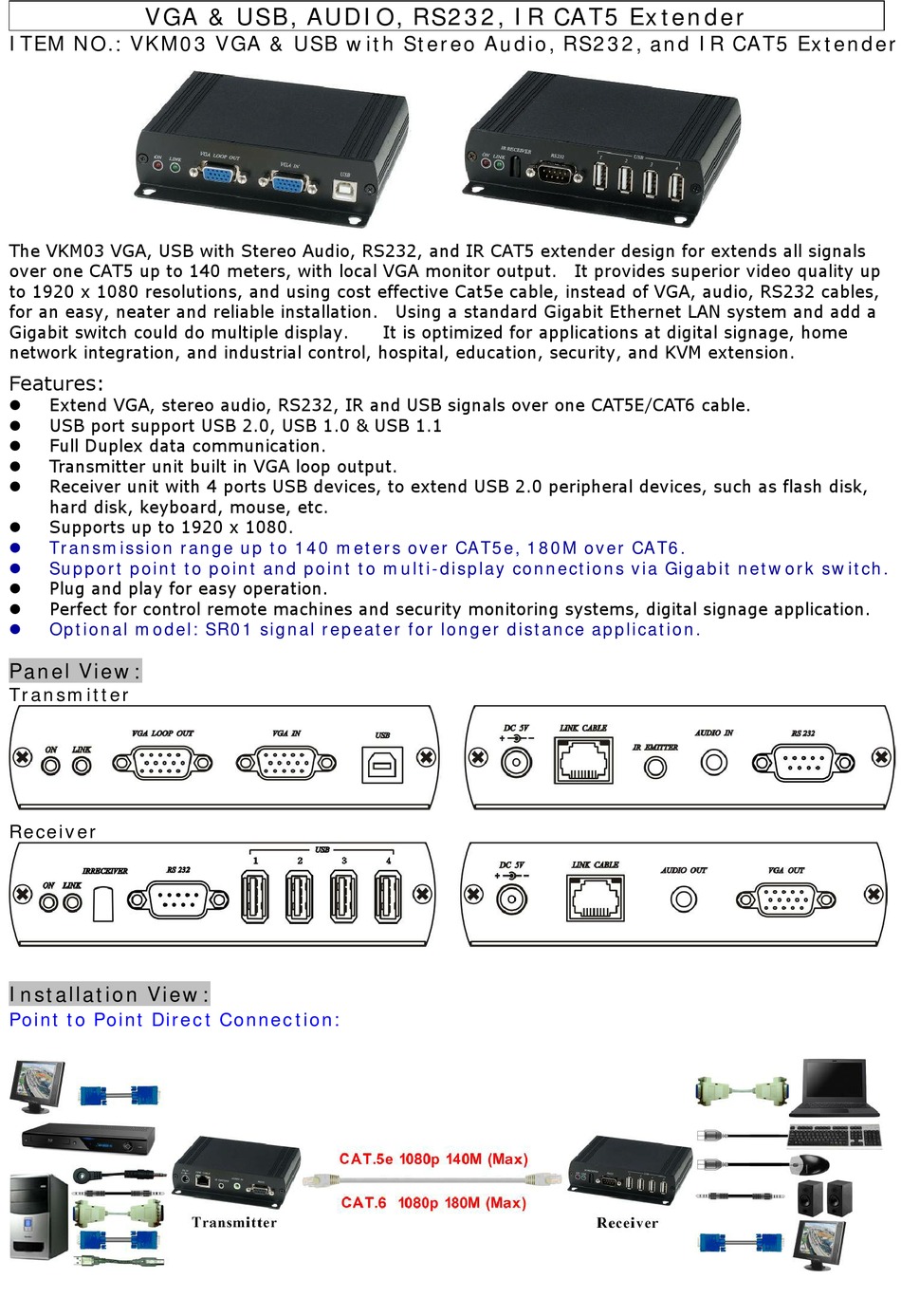

Panel View:

Transmitter
Receiver
Installation View:
Point to Point Direct Connection:
It is optimized for applications at digital signage, home
