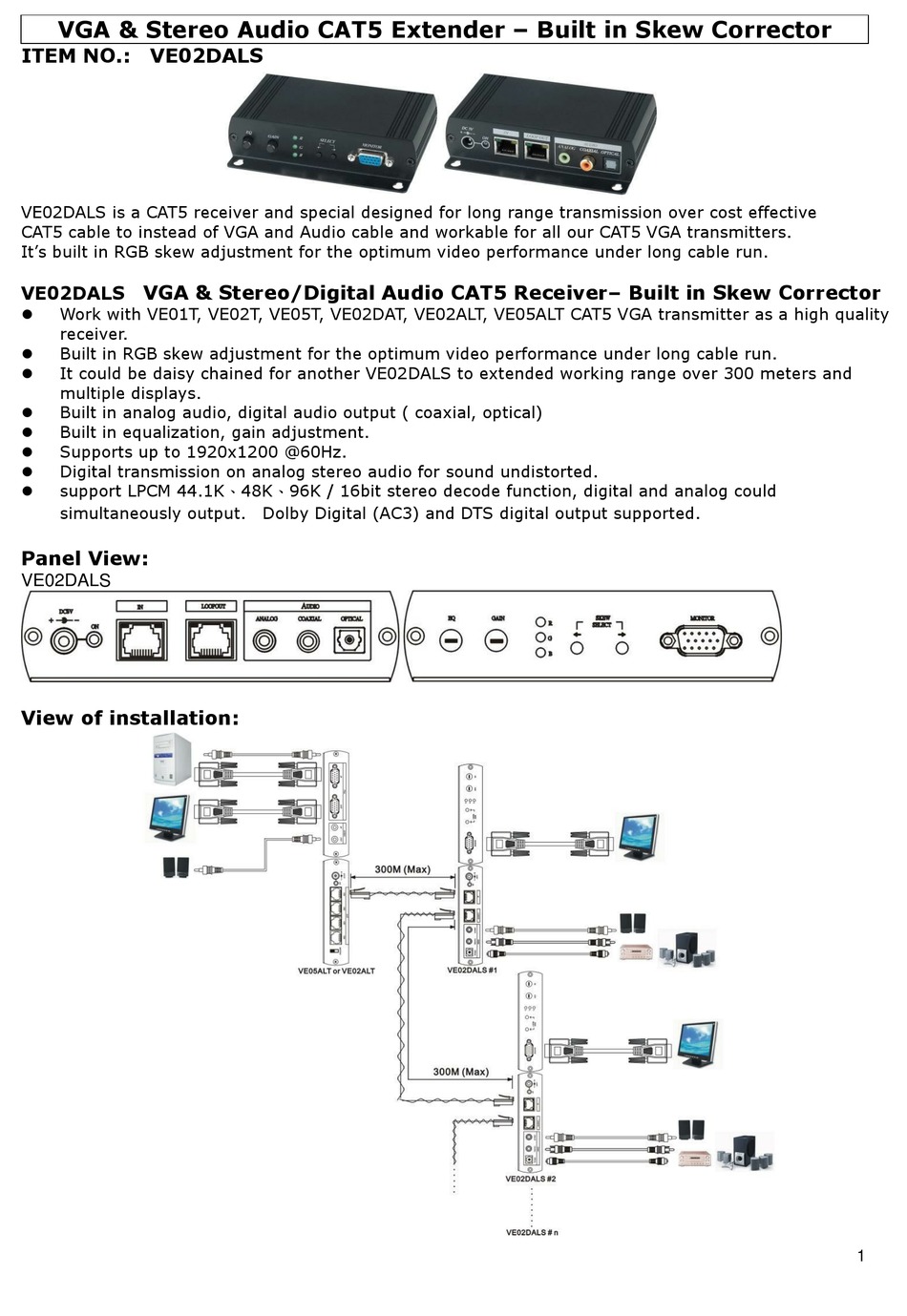

SC&T VE02DALS Quick Start Manual

VGA & Stereo Audio CAT5 Extender – Built in Skew Corrector
ITEM NO.: VE02DALS
VE02DALS is a CAT5 receiver and special designed for long range transmission over cost effective
CAT5 cable to instead of VGA and Audio cable and workable for all our CAT5 VGA transmitters.
It's built in RGB skew adjustment for the optimum video performance under long cable run.
VGA & Stereo/Digital Audio CAT5 Receiver– Built in Skew Corrector
VE02DALS
Work with VE01T, VE02T, VE05T, VE02DAT, VE02ALT, VE05ALT CAT5 VGA transmitter as a high quality

receiver.
Built in RGB skew adjustment for the optimum video performance under long cable run.

It could be daisy chained for another VE02DALS to extended working range over 300 meters and

multiple displays.
Built in analog audio, digital audio output ( coaxial, optical)

Built in equalization, gain adjustment.

Supports up to 1920x1200 @60Hz.

Digital transmission on analog stereo audio for sound undistorted.

support LPCM 44.1K、48K、96K / 16bit stereo decode function, digital and analog could

simultaneously output. Dolby Digital (AC3) and DTS digital output supported.
Panel View:
VE02DALS
View of installation:
