Summary of Contents for SC&T VKM02

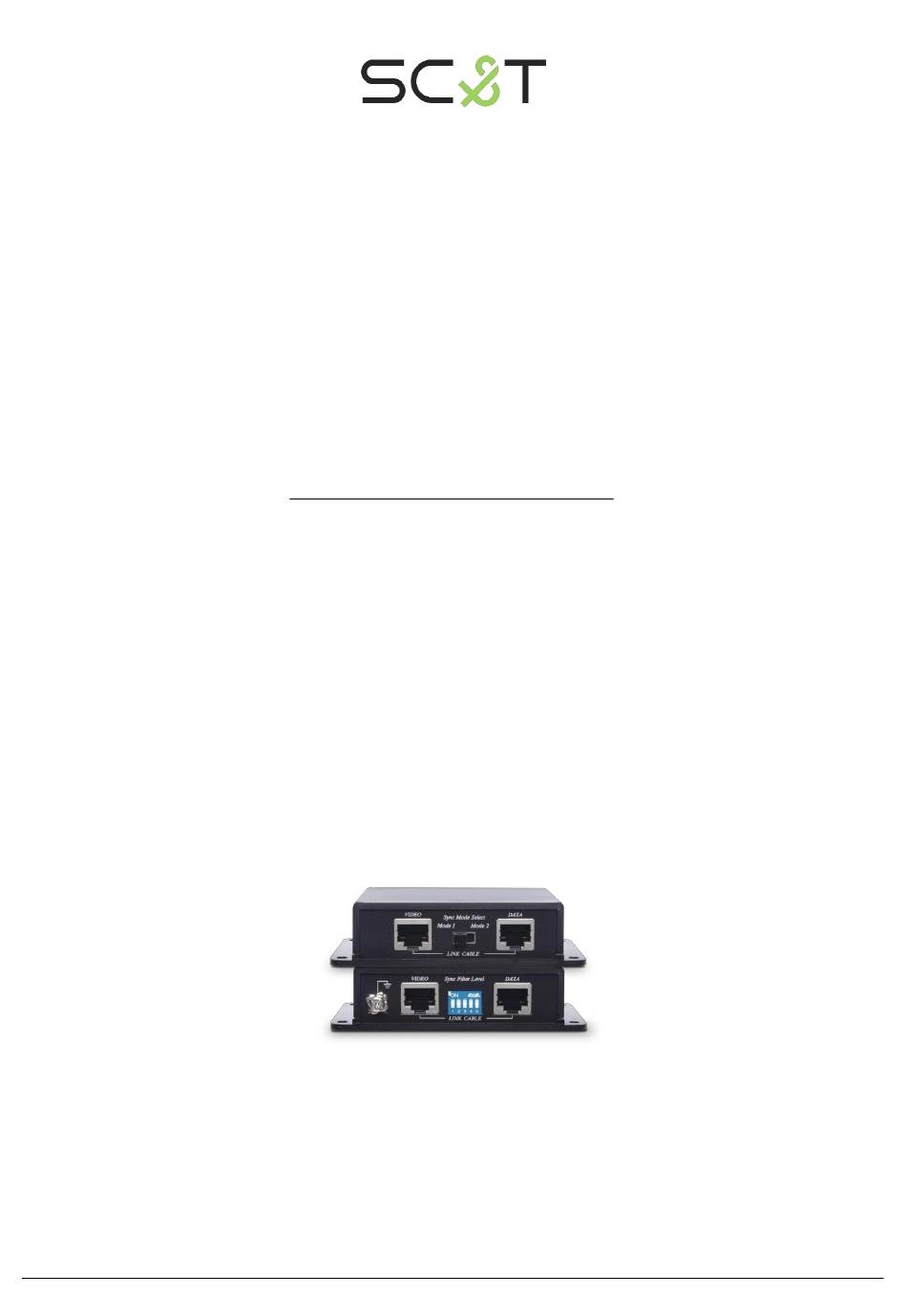

- Page 1 VGA/ KVM Extender User Manual Model : VKM02 Passive VGA Keyboard Mouse CAT5e Extender - USB Interface Smart Cabling & Transmission Corp. V1.0...
-

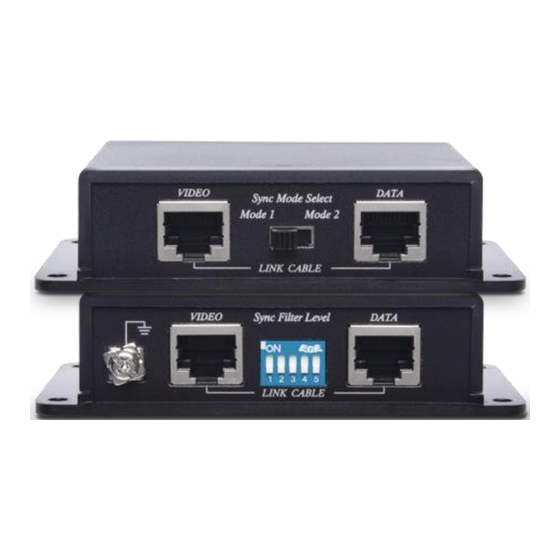

Page 2: Installation View
Introduction VKM02 is a VGA extender that use 2 CAT5 STP or UTP cable to not only carry VGA signal but also USB one, with transmission distance up to 100M. it's a perfect solution used in home, shopping malls, classrooms, and boardrooms…... -
Page 3: Switch Setting
User Manual VKM02 Recommend Cable 1. CAT5e UTP/STP or Cat6 UTP cable. 2. There are some certain models or brands of monitors with very high demand at sync-sensitive, recommend use STP (shielding twisted pair) cable to instead of UTP (unshielded twisted pair) cable. - Page 4 User Manual VKM02 DIP Switch Setting VKM02R Sync Filter Level Level 0 (Min) ↓ ↓ ↓ ↓ ↓ Level 1 ↑ ↓ ↓ ↓ ↓ Level 2 ↓ ↑ ↓ ↓ ↓ Level 3 ↓ ↓ ↑ ↓ ↓ Level 4 ↓...
- Page 5 User Manual VKM02 Troubleshooting at picture problem No picture displays Check Link cable. Check DIP switch setting. Check VGA cable connect. Change the resolution or frequency. Change Link cable for STP cable. Picture not stable or disappear intermittence or no picture display: Check DIP switch setting.
-
Page 6: Specification
User Manual VKM02 Specification ITEM NO. VKM02T VKM02R Support Compliance Max. Video Resolution 1280x1024px Max. Transmission Distance 100M over CAT5/ CAT5e/ CAT6 /STP or UTP Cable Video Bandwidth 300kHz Video Insertion Loss Less than 3dB Video Return Loss -15dB Ports & Interfaces Video Input 1 x DB15 (75 ohms, 1.1V p-p)
