- Page 1 VGA Extender User Manual Model : VKM04 VGA KVM & USB, RS232 with Stereo Audio, IR CAT5e Extender 140M Smart Cabling & Transmission Corp. V1.0_1906121 V1.0_1906121...
-
Page 2: Installation View

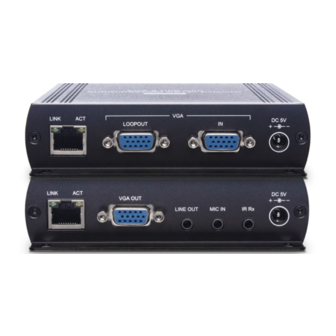

VKM04 Introduction VKM04 is a VGA extender that uses a cost-effective Ethernet cable to carry not only VGA signal but USB, Stereo Audio, RS232, and IR ones with superior resolution and long transmission distance. You can easily control a PC where is far away from you while having an additional VGA monitor alongside using the loop-out port at TX unit. -
Page 3: Panel Review
User Manual VKM04 (2) Works with optional model. SR01 for extra 140M over CAT6 cable, 120M over CAT5e cable. Caution It is recommended to use high quality CAT5e, CAT6 UTP/STP/FTP cable. 2. The transmission distance may be varied by the performance of input/output devices and installing environment. -
Page 4: Led Indication Status
The rotary dip switch can be used to switch channel (0-F) to pair up devices. 1. The channel number of the TX and RX must be the same to connect each other, total up to 32 (16 for each group) pairs could be setup at one switch. Please reboot VKM04 after pairing. - Page 5 User Manual VKM04 RS232 Baud Rate Setting Default Baud rate at 115200bps. You can change it by the following steps: Press button 1 at the RX unit to select Baud Rate. 2. Press button 2 at the RX unit to select a wanted parameter.
-
Page 6: Troubleshooting
User Manual VKM04 Trouble Shooting Max. data rate at 850Mbps. It is not recommend connecting VKM04 to existing LAN structure as the large data amount might paralyze existing network. Default EDID at 1080p, you can change resolution from AV source. -
Page 7: Specification
User Manual VKM04 Specification ITEM NO. VKM04T VKM04R Support Compliance USB 2.0, USB 1.1, USB 1.0 Max. Video Resolution 1920 x 1200 @ 60Hz Max. Transmission Distance 140M over CAT6 or Greater Ports & Interfaces Video Input 1 x D-Sub 15 Pin Female...
