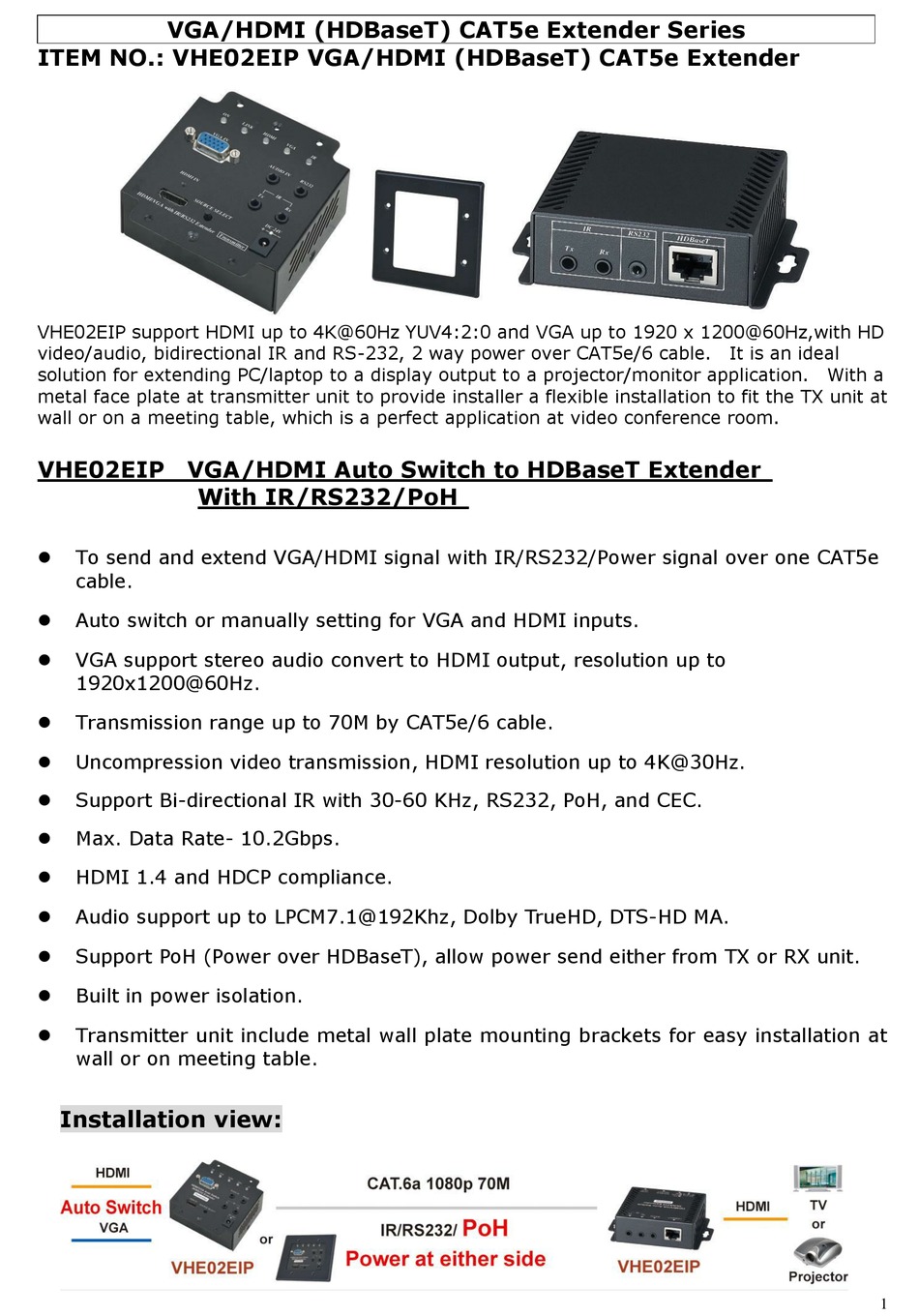

SC&T VHE02EIP Manual

VGA/HDMI (HDBaseT) CAT5e Extender Series
ITEM NO.: VHE02EIP VGA/HDMI (HDBaseT) CAT5e Extender
VHE02EIP support HDMI up to 4K@60Hz YUV4:2:0 and VGA up to 1920 x 1200@60Hz,with HD
video/audio, bidirectional IR and RS-232, 2 way power over CAT5e/6 cable. It is an ideal
solution for extending PC/laptop to a display output to a projector/monitor application. With a
metal face plate at transmitter unit to provide installer a flexible installation to fit the TX unit at
wall or on a meeting table, which is a perfect application at video conference room.
VHE02EIP VGA/HDMI Auto Switch to HDBaseT Extender
With IR/RS232/PoH
To send and extend VGA/HDMI signal with IR/RS232/Power signal over one CAT5e

cable.
Auto switch or manually setting for VGA and HDMI inputs.

VGA support stereo audio convert to HDMI output, resolution up to

1920x1200@60Hz.
Transmission range up to 70M by CAT5e/6 cable.

Uncompression video transmission, HDMI resolution up to 4K@30Hz.

Support Bi-directional IR with 30-60 KHz, RS232, PoH, and CEC.

Max. Data Rate- 10.2Gbps.

HDMI 1.4 and HDCP compliance.

Audio support up to LPCM7.1@192Khz, Dolby TrueHD, DTS-HD MA.

Support PoH (Power over HDBaseT), allow power send either from TX or RX unit.

Built in power isolation.

Transmitter unit include metal wall plate mounting brackets for easy installation at

wall or on meeting table.
Installation view:
