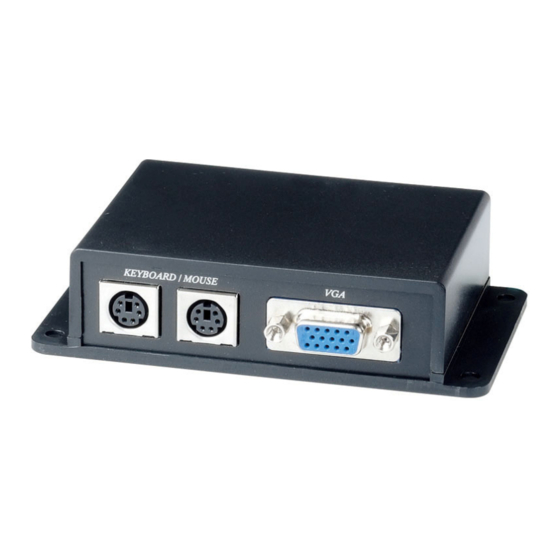

SC&T VKM01 Manual

ITEM NO.: VKM01
The VGA, Keyboard Mouse CAT5 Extender allows VGA video signals and keyboard mouse to
be transmitted up to 100 meters via 2 x CAT5 STP or UTP cable. Used in pairs, the Extender
is used in home or commercial applications as a smart, fast and cost-effective, eliminates
costly and bulky VGA, keyboard mouse cable.
boardroom systems, collaborative PC systems C-training systems, and tradeshows PC demo
systems and medical information systems.
Features:
VKM01 Keyboard Mouse CAT5 Extender – PS/2 Interface
Extend VGA and Keyboard mouse over 2 CAT5 UTP cable to instead of VGA cable and
keyboard mouse cable.
Including local and remote units.
Up to 100 meters via standard 4 pairs CAT5 STP or UTP cable instead of VGA cable.
Transmitter built in virtual DDC to avoid improperly setting at resolution and frequency.
Transmitter built in sync mode selection for signal stability.
Receiver built in sync filter level adjustment for signal stability.
Supports up to 1280x1024 pixels.
Passive device, not support VGA DDC protocol.
Perfect for classrooms, lecture halls, tradeshows, video information displays...etc.

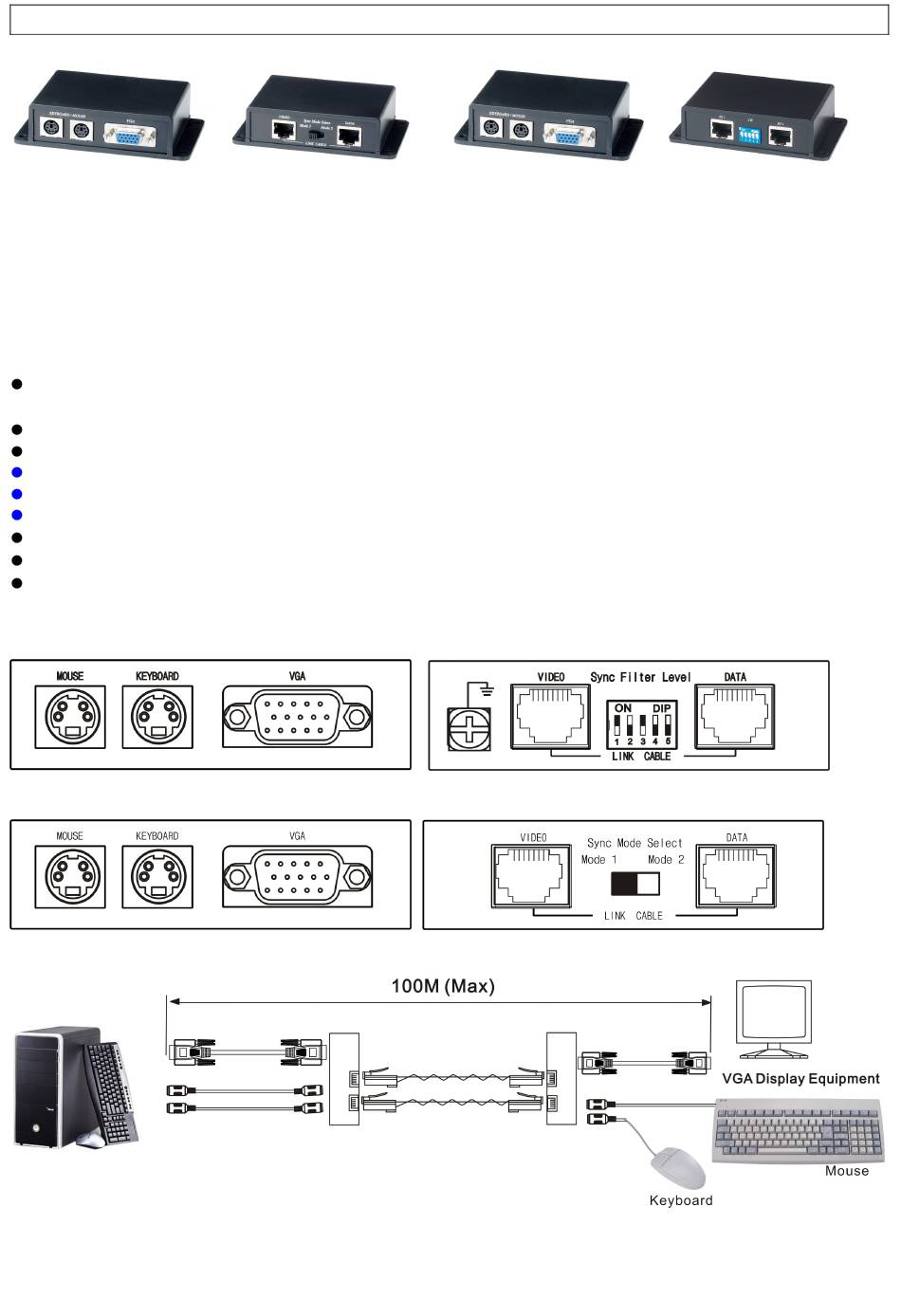

Panel View:
VKM01R (Remote unit)
VKM01T (Local unit)
Installation View:
VGA Keyboard Mouse CAT5 Extender
VKM01T
Applications for classroom projector systems,
VKM01R
