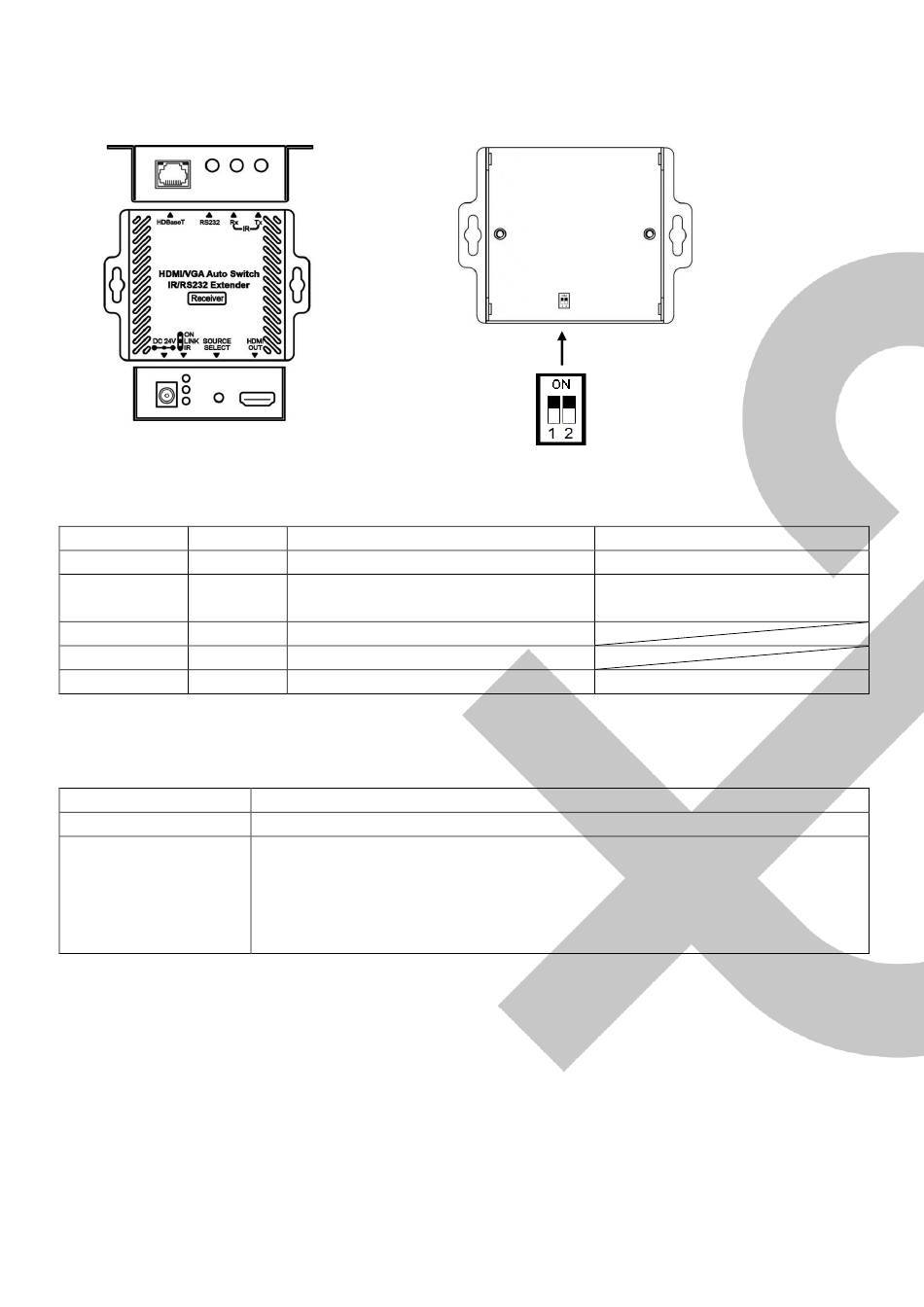

VHE02EIPR Front View

LED Instruction

Status
Color
POWER
GREEN
LINK
BLUE
HDMI
BLUE
VGA
BLUE
IR
RED

Button Function

FORCE SELECT
Short Press
Long Press over 2
seconds
VHE02EIPT
ON:Power on
ON:HDBaseT Linking
Flash: Power saving mode
ON:Select HDMI Input
ON:Select VGA Input
Flash:IR Receiving or Sending
Function
Manual Switch Mode: HDMI or VGA Input Selection
Auto Switch Mode: Auto Switch HDMI or VGA Input
Long Press: HDMI and VGA LED flash at same time that mean the auto switch
mode setting completed.
Under Auto Switch Mode: HDMI and VGA connect simultaneously, VGA will be
the priority.
Rear View Dip Switch
VHE02EIPR
ON:Power on
ON:HDBaseT Linking
Flash: Power saving mode
Flash:IR Receiving or Sending
User Manual
VHE02EIP
2
