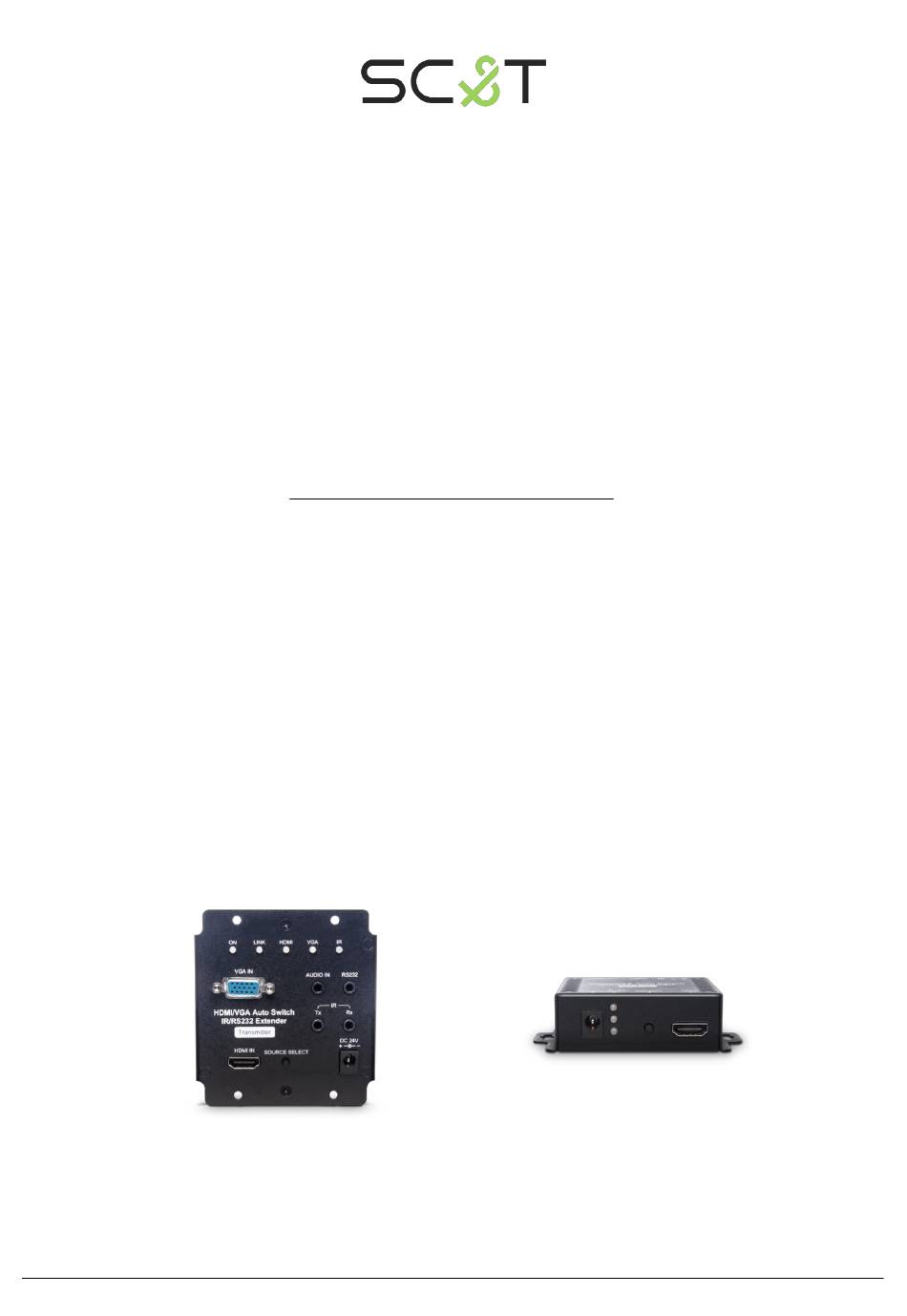

- Page 1 HDMI over HDBaseT Extender User Manual Model : VHE02EIP 4K VGA/HDMI Auto-Switching & IR/RS232/POH HDBaseT Extender 70M Smart Cabling & Transmission Corp. V1.0_1804130...
-
Page 2: Installation View

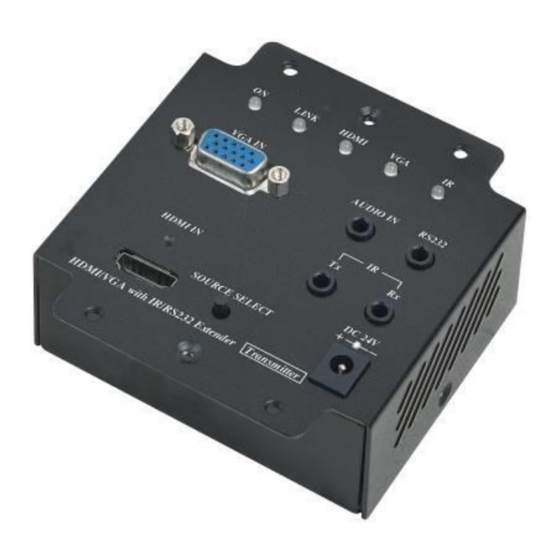

VHE02EIP Introduction VHE02EIP is a HDMI/ VGA extender that can use an Ethernet cable to extend either HDMI or VGA with audio, bi-directional IR and RS232 signals with transmission distance up to 70M and resolution up to 4K@30Hz for HDMI, 1920 x 1200px for VGA. It is an ideal solution to send the signal from PC/laptop to display it on a projector/ monitor. -
Page 3: Led Instruction
User Manual VHE02EIP VHE02EIPR Front View Rear View Dip Switch LED Instruction Status Color VHE02EIPT VHE02EIPR POWER GREEN ON：Power on ON：Power on ON：HDBaseT Linking ON：HDBaseT Linking LINK BLUE Flash: Power saving mode Flash: Power saving mode HDMI BLUE ON：Select HDMI Input BLUE ON：Select VGA Input... -
Page 4: Dip Switch Setting
User Manual VHE02EIP Dip Switch Setting VHE02EIPT Switch Function Video Firmware update RS232 Extender Control Firmware update Reserve Reserve VHE02EIPR Switch Function Video Firmware update RS232 Extender Reserve Cable Link cable recommend use high quality CAT5e、CAT6、CAT6a、CAT7 UTP / STP or FTP cable. Poor quality cable or network connection or improper construction will cause unstable connection, video or sound disruptions, picture noise appears. -
Page 5: Power Saving Mode
User Manual VHE02EIP RS232 Define DB9(F)/3.5mm STEREO PHONE JACK DB9(M)/3.5mm STEREO PHONE JACK DB9(F)/3.5mm STEREO PHONE JACK DB9(M)/3.5mm STEREO PHONE JACK RS232 3.5 mm Phone Jack RS232 3.5 mm Phone Jack Footprint Define Footprint Define Footprint Define Footprint Define Pin 2... - Page 6 User Manual VHE02EIP VHE02EIP Package Include VHE02EIPT Transmitter x 1 pcs VHE02EIPR Receiver x 1 pcs DC24V/1.25Amp Power Adapter x 1 pcs IR Emitter Cable x 1 pcs IR Receiver Cable x 1 pcs DB9(M)/3.5mm STEREO PHONE JACK x 1 pcs DB9(F)/3.5mm STEREO PHONE JACK x 1 pcs...
-
Page 7: Specification
User Manual VHE02EIP Specification ITEM NO. VHE0EIPT VHE0EIPR Support Compliance HDMI 1.4, HDCP Max. Video Resolution HDMI: 4096 x 2160@30Hz, VGA: 1920 x 1200＠60Hz＠24bits Max. Transmission Distance 70M over CAT5e or greater cable Video Bandwidth 9 Gbps Audio Format 7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA IR Support 30-60Khz, ±10°, 5M, Bi-directional 30-60Khz, ±55°, 5M, Bi-directional...
