- Page 1 VGA Extender User Manual Model : VE05AL 1 x 5 VGA & Stereo Audio Distribution Amplifier CAT5e Extender, Transmiter Smart Cabling & Transmission Corp. V1.0...
-
Page 2: Installation View

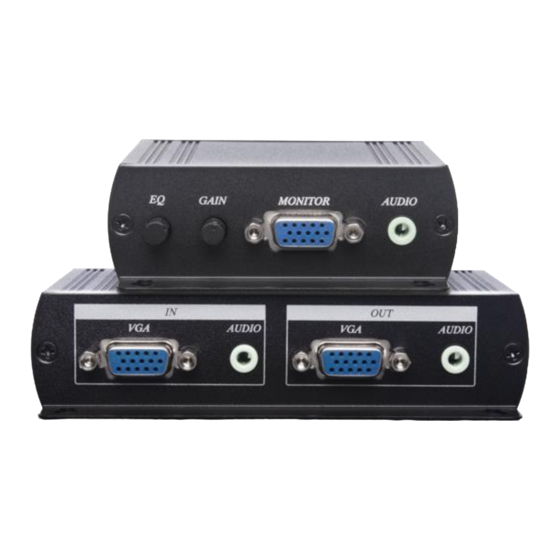

Introduction VE05AL is a VGA extender designed to use a cost-effective CAT5e UTP cable to carry the signal with stereo audio signal and split the signals for 4 video & 4 audio outputs. Its RX unit has a built-in chainable RJ45 output to connect another chainable RX for more working distance and VGA outputs. -
Page 3: Led Status Indication
User Manual VE05AL Panel View VE05ALT VE02ALR RJ45 Define Link Cable (TIA/EIA-568-B) Orange-white Red + 2. Orange Red - 3. Green-white Green + 4. Blue Audio - 5. Blue-white Audio + 6. Green Green - 7. Brown-white Blue + 8. Brown Blue –... -
Page 4: Installation Tips
User Manual VE05AL VE05ALT local unit EDID set up Setup Monitor EDID: When Yellow LED off, press “SETTING” button until Blue LED flash, then release the “SETTTING” button, yellow LED will be on. Setup Built in EDID: When Yellow LED on, press “SETTING” button until Blue LED flash, then release the “SETTTING”... -
Page 5: Installation Cable
User Manual VE05AL Recommend to use following cabling way to reduce skew status, to add special made “skew immunized adaptor”, 2 pieces included at the package. CAUTION To avoid display equipment damaged, be sure to make correct cable connection and power for VE02ALT, VE05ALT, and VE02ALR before connecting VE02ALT, VE05ALT, and VE02ALR. -
Page 6: Specification
User Manual VE05AL Specification ITEM NO. VE05ALT VE02ALR Support Compliance Max. Video Resolution 1920 x 1200@60Hz Max. Transmission Distance 300M over CAT5e or Greater Video Bandwidth 700 MHz, -3dB (Remote 350MHz, -3dB) 150MHz Audio Bandwidth 20 to 20KHz, -3dB Frequency Horizontal at 30 to 95KHz, Vertical at 50 to 180Hz Ports &...
