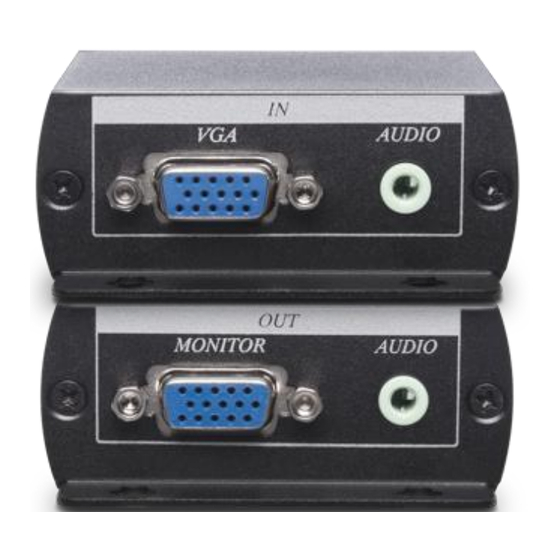

- Page 1 VGA Extender User Manual Model : VE01HA High Resolution VGA & Stereo CAT5e Extender 1920 x 1200 - Smart Cabling & Transmission Corp. V1.0...
- Page 2 VE01HA Introduction VE01HA is a VGA extender designed to use a cost-effective Ethernet cable to carry the signal with stereo audio for a long distance. It's the ideal solution for shopping malls, public address systems, airports, train & bus stations, boardrooms, trade shows, computer-based training applications.
- Page 3 Troubleshooting VE01HAR RJ45 yellow LED on: the audio function damaged. Caution VE01HA cannot work with any of our other VGA CAT5 extender products which will cause product damage. This device not Ethernet product, do not connect any Ethernet. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio...
- Page 4 User Manual VE01HA Specification ITEM NO. VE01HAT VE01HAR Support Max. Video Resolution 1920 x 1200px Max. Transmission Distance 70M over CAT5e or Greater Video/ Audio Bandwidth Video at 700 MHz, -3dB, Audio at 20 to 20KHz, -3dB Ports & Interfaces Video Input 1 x DB15 (75Ω, 0.7Vp-p)
