Remote control input is a potential free contact which allows the charge transaction remote start
and stop.
This remote control input is disabled by default, by means of a jumper (as shown in the picture
below). You must remove the jumper to use this function.
When the jumper is removed, a device, outside of the charge point, should control the charge
transaction. This device should close the contact START to allow the charge transaction and if the
EV is connected to the charge point, it will start the charge transaction straight away.
18
Remote control input
Be sure that the jumper is connected by default,
otherwise the charge transaction process cannot start.

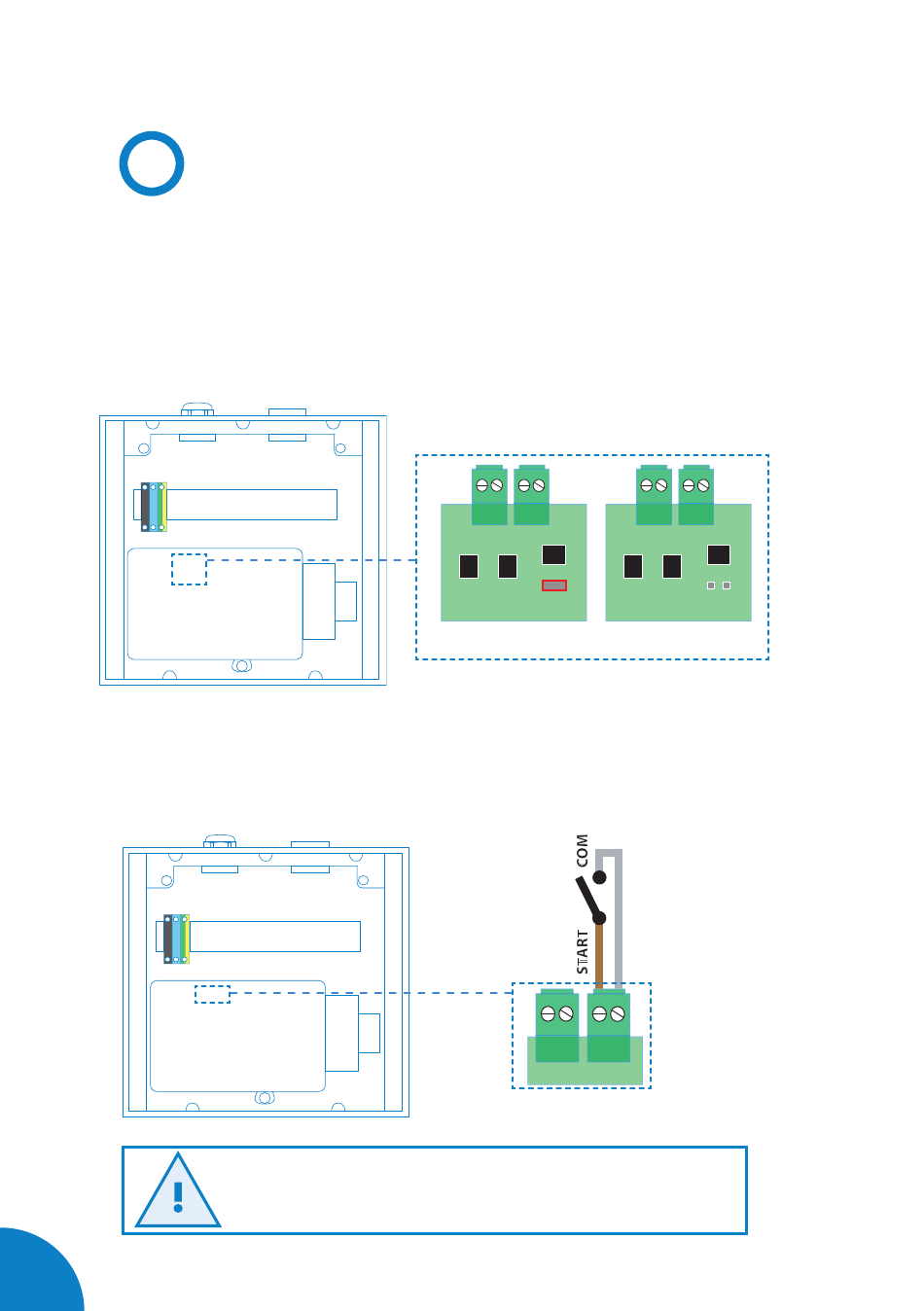

BOR1 BOR4 BOR1 BOR4
JUMPER
DISABLED ENABLED
-K_START
BOR1 BOR4
NO JUMPER
