WallBox eNext Installation Manual

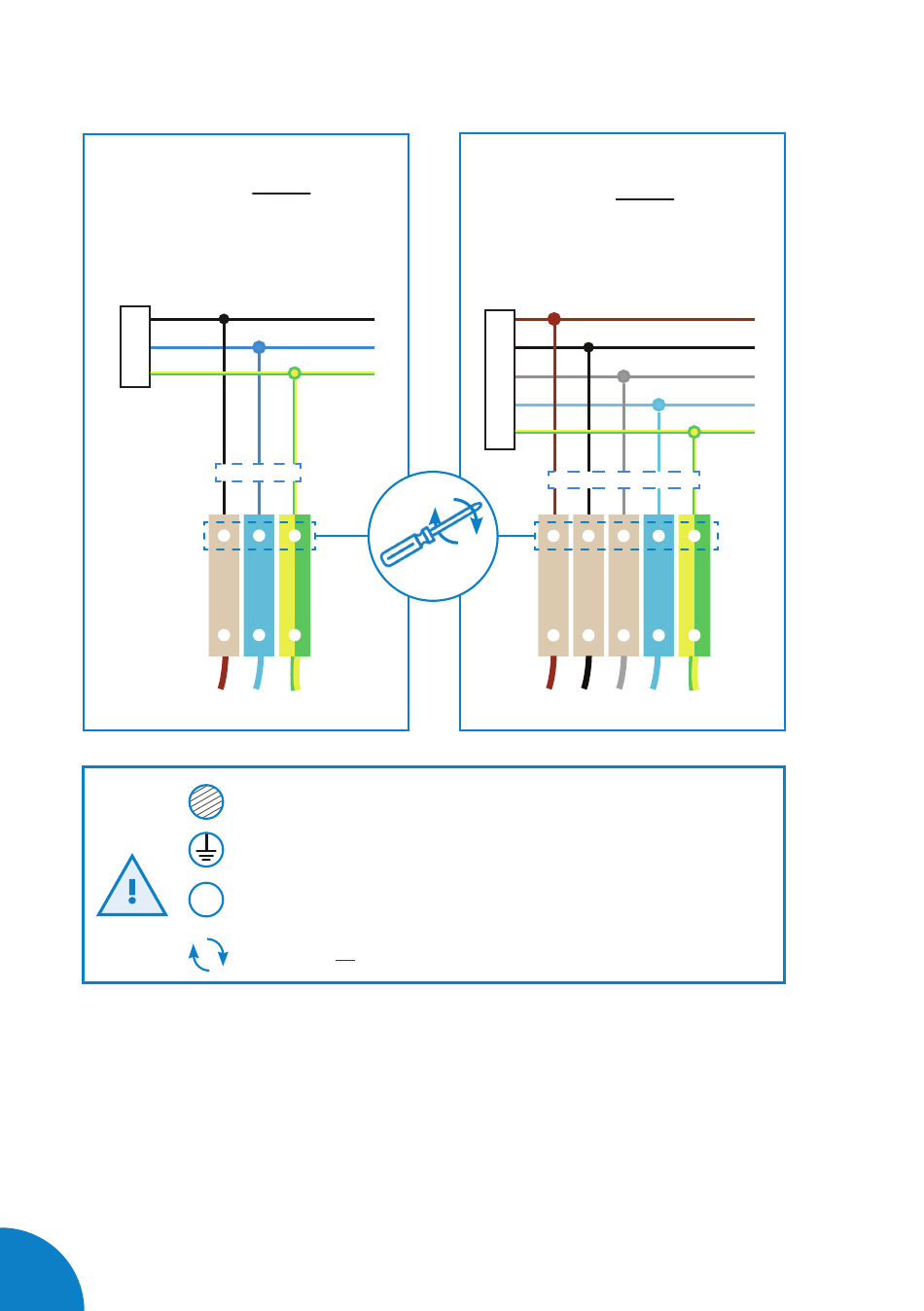

SINGLE-PHASE CHARGE POINT
Connect to the 230VAC.
•
L
N
PE
16
Protections
S
Terminal block maximum cross-section: 10mm
Do not forget to connect the ground cable to the ground terminal
Type of cable allowed by the terminal block: Copper
Cu
Make sure all screws are securely tightened at 4 - 5 Nm
THREE-PHASE CHARGE POINT
• Connect to the 400VAC.
• If the Power Supply is Single-
Phase, connect L1 and N.
L1
L2
L3
N
PE
Protections
2
