BeON
Be-On is an optional device that can optimize the Electric Vehicle (EV) Charger. It is the responsible
to analyze the total current consumption in the residential, and to manage the remaining current
for the EV Charger, avoiding any Main Circuit tripping.
BeOn is only available on single-phase charge points.
MCB
consumption
devices

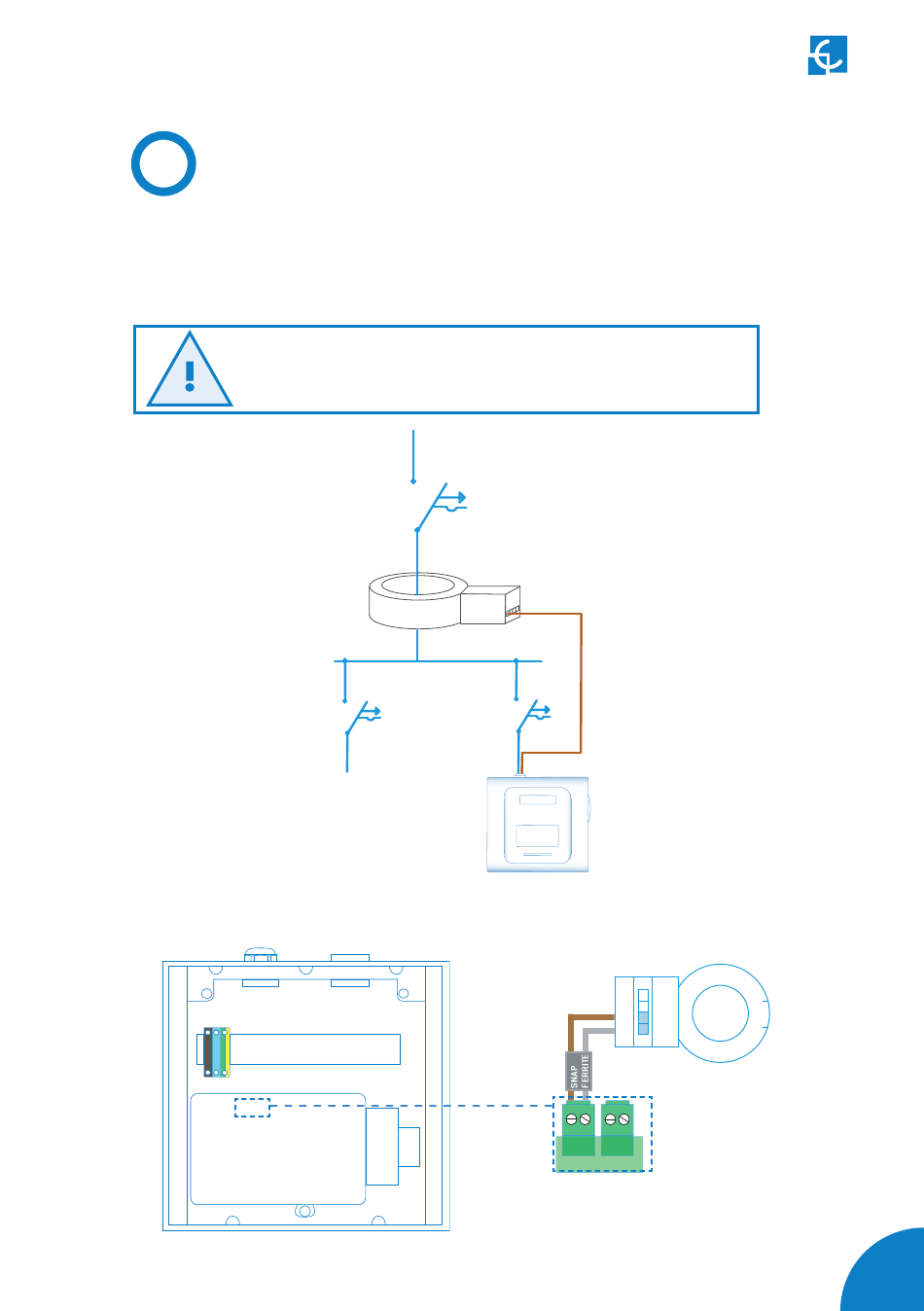

BeON is connected downstream of the main power switch and upstream of the main loads.
MCB
Other
MCCB
1S1
A(-) 1S2
(-)
2S1
2S2
(+)
B(+)
BOR1 BOR4
Signal cable has to do two
loops into the snap ferrite.
