QuickTouch Preset
Manual

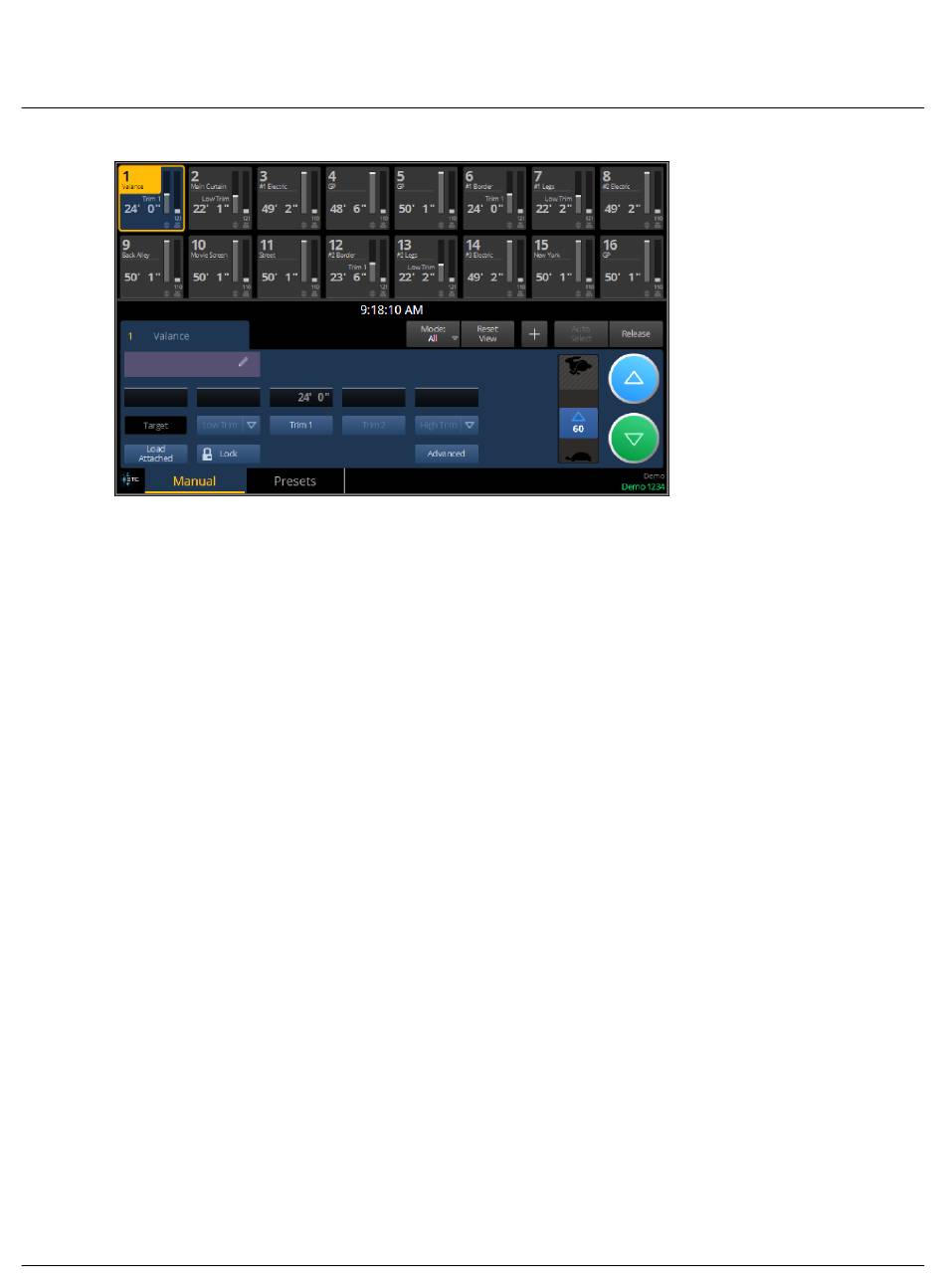

The Manual screen contains rows of channels on the top of the screen and configuration and
movement options on the bottom of the screen.
Move Motors Manually
1. Select one or more channels to move.
2. Adjust the speed slider to the speed you want. The slider is directly to the left of the blue and
green Up and Down buttons. If you move the slider all the way up the motor will move at its
maximum speed.
3. Select the blue Up button or green Down button depending on which way you want to move
the hoist.
4. Press and hold the [GO] button to move the hoist in the direction and at the speed that you've
selected.
5. Release the [GO] button when the hoist reaches the intended destination.
Perform Target Moves
1. Select one or more channels to move to a specific target and then press the editable Target
field in the properties area.
2. In the Edit Target Position dialog that appears, enter the target destination and press Ok.
3. Press and hold the [GO] button to move to the target destination.
Move Channels Using Trims
1. Select the channel you want to move.
2. Press one of the trim buttons from the properties area to select the trim as your destination.
Note that the trim value is now displayed in the Target field.
3. Press and hold the [GO] button to move to the trim.
Set Trims
Set trims for the channels from the trim fields (Low Trim, Trim 1, Trim 2, High Trim) or from the
Trims tab in the Advanced dialog. When you select a trim from either workspace, the Edit trim
dialog appears and lets you set or edit a trim, including renaming the trim. You can also designate
the Low and High trims as limits if you want.
