ETC Installation Guide
Echo 0–10V Controller–Gen 2
Overview
The Echo 0–10V Controller–Gen 2 provides fully-rated 20 A relays for dir-
ect control of individual fixtures or zone power, and offers fully isolated
0–10 V dimming control for compatible LED drivers and fluorescent bal-
lasts.
Two models are available:
 • Single Zone (ELD-G2)
 • Dual Zone (EDLD-G2)
The 0–10V Controller–Gen 2 controls lighting loads based on the fol-
lowing:
 • Preset and Zone controls received from connected Echo control
stations
 • Ambient light levels as monitored by Echo Light Sensors
 • Occupancy state as monitored by Echo Occupancy/Vacancy Sensors
 • Input from other Echo control devices
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London | Rome | Holzkirchen | Paris | Hong Kong | Dubai | Singapore
New York | Orlando | Los Angeles | Austin | © 2024 Electronic Theatre Controls, Inc.
Web
etcconnect.com
| Support
Contact
etcconnect.com/contactETC
Third-party license agreement
cifications subject to change. ETC intends this document to be provided in its entirety.
7187M2102 Rev H Released 2024-04
support.etcconnect.com
| Trademark and patent
info: etcconnect.com/licenses

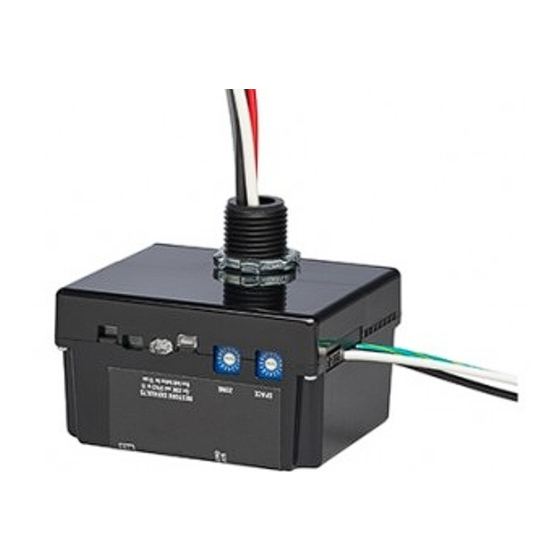

Dual Zone
