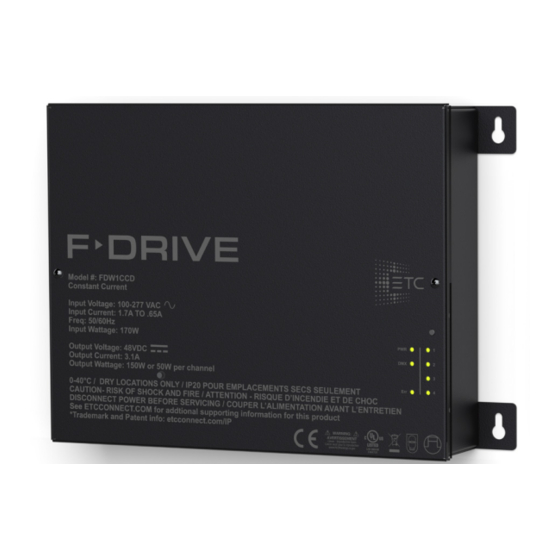

Introduction Congratulations on your purchase of the ETC F-Drive Series W1. The F-Drive Series W1 Driver LED power control solution provides a centralized approach for controlling LED luminaires. It is a wall-mount driver that provides power and data for up to four circuits in standard and emergency installations. -
Page 6: Help From Etc Technical Services
Help from ETC Technical Services If you are having difficulties and your problem is not addressed by this document, try the ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below. -
Page 7: Safety
Safety The F-Drive Series W1 is intended for professional use only. Read the entire manual before using this equipment. IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY • INSTRUCTIONS. -
Page 8: Overview
Chapter 1 Overview F-Drive W1 and W1E Drivers Features Compatible with a wide range of control systems • DMX/RDM control input with per-circuit patching • W1E models are UL 924 listed for emergency lighting control • W1 Installation Manual... -
Page 9: W1 Models
450 mA per terminal W1 Fade to Warm Fade to Warm luminaires channel blocks Emergency Driver FDW1EFTWD (-CE) up to four total ETC • ArcSystem Navis 100 White W1 CC Driver constant current, luminaires FDW1CCD (-CE) adjustable from up to four total •... -
Page 10: Emergency System Overview
Emergency System Overview The W1 Emergency Driver is a UL924 listed variant of the W1 Driver. Install the W1 Emergency Driver in a location that is accessible by qualified personnel for testing of the emergency operation. Note: Installation must follow all national and local codes for electrical equipment. Note: Normal and emergency wiring cannot be contained in the same conduit according to NEC 700.10(B). - Page 11 Sense Input from F-Drive R12 48 VDC Panic Output See the F-Drive R12 Installation Manual for details on wiring the panic output on the F-Drive R12. ETC documents are available for download in PDF format free of charge at etcconnect.com. F-Drive W1 Emergency Driver...
-
Page 12: Before You Begin Installation
Before You Begin Installation Review the following information before installing the F-Drive W1. Installation Requirements Ambient operating temperature 0–40°C (32–104°F), 5–95% non-condensing humidity. • Dry locations only. • Power Disconnect Device Before installation, make sure you have an accessible input power disconnect device installed ahead of your F-Drive W1. -
Page 13: W1 Installation
Chapter 2 W1 Installation Prepare to Install the W1 W1 Drivers are for wall-mount only. Parts and Tools The following supplies are required, but not provided: conduit and conduit fittings, as needed • conduit punch • Romex or nonmetallic screw-clamp style conduit connectors for outputs •... -
Page 14: Mounting Straps
Mounting Straps The mounting straps provide external keyholes to allow wall-mounting without removing the cover of the W1 Driver. A Mounting straps B Mounting strap attachment nuts Remove the Mounting Straps If you prefer to remove the mounting straps and mount the W1 Driver to the wall using holes in the back panel, follow the steps below: Using the Phillips screwdriver, remove the two screws on the cover of the driver and set them aside. -
Page 15: Electrical And Wiring Specifications
Install the driver on a power distribution system with reliably identified earthed neutral (ground), and install a maximum 20 A circuit breaker on the line conductor. The W1 Driver accepts 100–277 VAC, 50/60 Hz. ETC recommends installing all wiring in grounded metal conduit. -
Page 16: Install The W1
Install the W1 MAINTAIN 1 2 3 4 THRU Removable wiring panel DMX termination switch "S5" AC power input RJ45 output DMX In Two-pin terminal outputs DMX Thru SD card Wire power and data (DMX) to the W1 Driver and then run power out to the Navis luminaires or W1 Emergency Driver Installation other loads. -
Page 17: Connect The Power Input
Install Romex or nonmetallic screw-clamp conduit connectors as needed. Attach flexible conduit to the driver. Note: Use suitable conduit where required by national and local codes. • Driver may require additional means of securement. Installation must follow all • national and local codes for electrical equipment. Connect the Power Input MAINTAIN Internal wire colors vary by model. - Page 18 WARNING: Risk of electric shock! This device utilizes high voltage and should only be installed by a qualified installer or electrician. Follow all local codes for installation. Before terminating the AC power wiring verify that the main breaker is in the off position and follow the proper lockout/tag out procedures per NFPA Standard 70E.
-
Page 19: Dmx In And Thru Connections
DMX In and Thru Connections DMX In and DMX Thru cables terminate to RJ45 connectors or three-pin IDC or screw-terminal connectors. DMX is installed in a daisy-chain topology and includes one pair of wires (Data + and Data -) plus an ISO ground (common). DMX cables must be acceptable for DMX data transmission, and connections should follow the standard pinouts in the chart below. - Page 20 Strip 18 cm (7 in) off the outer jacket. Label the cable with the data type and run designation. (DMX1, DMX2, etc.) Strip the foil shielding from each wire set to within 6 mm (1/4 in) of the outer jacket.
-
Page 21: Terminate Dmx In And Dmx Thru
W1 CC Driver Output to Navis 100 Luminaires See the ArcSystem Navis 100 Installation Guide for luminaire installation instructions and compatibility with F-DriveW1 Drivers. ETC documents are available for download in PDF format free of charge at etcconnect.com. Navis 100 luminaires typically connect to the W1 Driver via Category-type cable terminated to RJ45 connectors. - Page 22 Terminal Block Output to Navis 100 Luminaires RJ45 Pinout for Navis 100 Fade to Warm Terminal Block Pinout and White Luminaires RJ45 Typical Wire Color Description (T568B standard) Ground white-and-orange RJ45 Power white-and-blue 1 2 3 4 RJ45 output is not present on all models. Each luminaire can be connected to the driver by a separate Category-type cable wired to a two-pin connector.
- Page 23 W1 Fade to Warm Driver. The W1 CC Driver can output 200–700 mA. Output current can be configured via RDM. See RDM Parameters on page 25 Default output current is 450 mA. ETC Luminaire Current Requirement ArcSystem Navis 100 White 600 mA...
-
Page 24: W1 Emergency Driver Installation
Chapter 3 W1 Emergency Driver Installation F-Drive W1 Emergency Drivers powering Navis 100 White or Fade to Warm luminaires are compliant with or conform to the applicable safety standards for emergency applications. For current and complete compliance information, view the F-Drive W1 Driver datasheet at etcconnect.com/Products/Power-Controls/LED-Drivers/F-Drive/Documentation.aspx. - Page 25 SENSE SENSE MAINTAIN Note: Normal and emergency wiring cannot be contained in the same conduit according to NEC 700.10(B). Note: Use suitable conduit where required by local or national code. Internal wire colors vary by model. Factory Wire Colors Model Color Type North America and Europe green/yellow...
-
Page 26: Connect The Sense Input
WARNING: Risk of electric shock! This device utilizes high voltage and should only be installed by a qualified installer or electrician. Follow all local codes for installation. Before terminating the AC power wiring verify that the main breaker is in the off position and follow the proper lockout/tag out procedures per NFPA Standard 70E. -
Page 27: Configure The W1 Cc Emergency Driver Test Button For Low-Voltage Loads
Configure the W1 CC Emergency Driver Test Button for Low-Voltage Loads The W1 Emergency Driver test button is configured by default to work with Navis 100 White and Fade to Warm luminaires. If you are using third-party loads with less than 30 V forward voltage, you must set the W1 CC Emergency Driver test switch to work with low-voltage loads. -
Page 28: Power Up And Control
Parameters on the facing page DMX System Control You can control the W1 over wired DMX from a lighting console or ETC Concert software. Concert is available for free download at etcconnect.com/Concert. F-Drive Series products are compliant with DMX 512-A (ANSI E1.11-2008 (R2013)). -
Page 29: Edit And Save Configuration Files
OSHA Safe Working Practices. You can edit and save configuration files using ETC Concert software. Download Concert software from the ETC website at etcconnect.com. For more information on Concert, see the help files within the Concert application. Edit a configuration file you have saved or edit the default F-Drive configuration file in Concert. - Page 30 Device Model Description 0x0080 ASCII string for model description FTW-150 Card: "FTW-150" CV-150 Card: "CV-150 CC-150 Card: "CC-150" Manufacturer Label 0x0081 ASCII string for manufacturer label Get returns "ETC"from the root only. Device Label 0x0082 ASCII string for device label All Navis White and Fade to Warm luminaires have a DMX Personality 0x00E0 single DMX personality: Intensity...
-
Page 31: Update Firmware
UpdaterAtor, download the UpdaterAtor Software Quick Guide for free from etcconnect.com. W1 Driver Firmware W1 firmware can be updated by microSD card by a qualified ETC Technician. Updated firmware Edit and Save Configuration Files can be downloaded through ETC UpdaterAtor software. See on page 25... -
Page 32: Maintenance
Maintenance WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all power to the panel before working inside could result in serious injury or death. AVERTISSEMENT : RISQUE D'ELECTROCUTION! Travailler à l’intérieur du panneau sans avoir déconnecté le courant peut entrainer des blessures graves, voire mortelles. -
Page 33: Troubleshooting
Troubleshooting Test Button The "TEST" button is only present on emergency models. See Emergency Operation and Test on the previous page LED Indicators "TEST" button and "DER" LED are only present on emergency models. TEST Power Error Description Color Function (Quantity) solid on = power present at control card Power (1) blue... -
Page 34: Appendix A Compliance
Appendix A Compliance For current and complete compliance information, view the product datasheets at etcconnect.com/Products/Power-Controls/LED-Drivers/F-Drive/Documentation.aspx. FCC-Part 15 Class A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received;... - Page 35 Compliance...
- Page 36 Holzkirchen, DE +49 (80 24) 47 00-0 Rome, IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Paris, FR +33 1 4243 3535 etcconnect.com Support support.etcconnect.com Contact etcconnect.com/contactETC © 2020 Electronic Theatre Controls, Inc. Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7148M2110 Rev A Released 2020-06...
