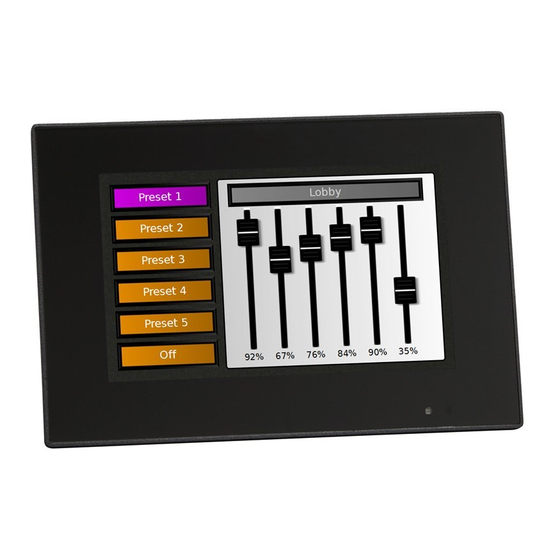

Paradigm p-ts7 series 7" portable touch screen station

Advertisement

ETC Setup Guide
Unison Paradigm

Overview

The Paradigm P-TS7 portables offer a flexible method of controlling your Paradigm lighting
system. Two versions are available, each with a different mode of connectivity: Ethernet (P-TS7-
PE) and LON (P-TS7-P). The display interface for these models can be designed to your specific
system using ControlDesigner™.

Connect P-TS7-PE with Ethernet

Step 1:
Note:
Step 2:
Step 3:
Note:
Step 4:
Step 5:
Step 6:

Connect P-TS7-P with LON

Step 1:
Step 2:
Note:
Step 3:
Corporate Headquarters
London, UK
Tel +44 (0)20 8896 1000
Rome, IT
Tel +39 (06) 32 111 683
Holzkirchen, DE
Hong Kong
Tel +852 2799 1220
Web:
www.etcconnect.com
7184M2250
Rev A
P-TS7 Portable Touchscreen
®
P-TS7 Portables
Swing the cover completely around the unit to create a tabletop stand.
The Ethernet version of P-TS7 has a detachable cable with an RJ-45 connector
at one end and an Ethercon connector on the other.
Connect the Ethercon end of the cable to the matching port on the rear of the
touchscreen.
Connect the RJ-45 end of the cable to a Power-over-Ethernet network port for your
Paradigm control system.
Startup will take a minimum of 20 seconds. Larger configurations will require
more time.
For information on uploading and downloading configurations, see
Configuration and Theme Files
Manually set the unit's IP address:
a: Select the "Network" tab. A keypad will appear.
b: Enter the 4-digit system passcode and press [Enter]. If you do not know the
passcode, contact ETC Technical Services to obtain it. The Network screen will be
displayed.
c: Select the "IP Address" field and enter an appropriate address for your system
network parameters.
If the bind process is complete (see
and theme files, the device will boot and be ready to use.
Use the controls on the display to access the lighting system.
Swing the cover completely around the unit to create a tabletop stand.
Connect the touchscreen cable to a Unison receptacle station (UH1RS).If the bind
process is complete and the unit possesses the config and theme files, the device will
boot and be ready to use.
Startup will take a minimum of 20 seconds. Larger configurations will require
more time.
For information on uploading and downloading configurations, see
Configuration and Theme Files
Use the controls on the display to access the lighting system.
Middleton, WI, USA
Tel +608 831 4116
Service: (UK)
Service: (UK)
service@etceurope.com
Tel +49 (80 24) 47 00-0
Service: (DE)
Service: (Asia)
service@etcasia.com
© 2015 ETC. All Rights Reserved.
Released 2015-03
ETC intends this document to be provided in its entirety.
on
page 2
below.
page
2) and the unit possesses the configuration
on
page 2
below.
Service: (Americas)
service@etceurope.com
techserv-hoki@etcconnect.com
Product information and specifications subject to change.
Page 1 of 4
service@etcconnect.com
Electronic Theatre Controls, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paradigm P-TS7-PE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ETC Paradigm P-TS7-PE

  • Page 1 Select the “Network” tab. A keypad will appear. b: Enter the 4-digit system passcode and press [Enter]. If you do not know the passcode, contact ETC Technical Services to obtain it. The Network screen will be displayed. c: Select the “IP Address” field and enter an appropriate address for your system network parameters.
  • Page 2 ETC Setup Guide P-TS7 Portables Bind the P-TS7-P/PE Before binding your P-TS7 Portable, please confirm you have met the following requirements: • The touchscreen has been added to the configured space in LightDesigner. • The Light designer configuration has been uploaded to the Paradigm ACP(s). Reference the LightDesigner online help system for details on uploading a configuration.
  • Page 3 ETC Technical Services to obtain it. Note: Standard ETC-provided themes used in your configuration do not need to be manually uploaded to the LCD. These themes are loaded for you at the factory and will display beneath the “Themes” directory.
  • Page 4 ETC Setup Guide P-TS7 Portables I/O Indicators The following recessed buttons and LEDs are found inside the access door. Reset button When pressed, resets the P-TS7-P software Mode button Press once for Setup menu. Press and hold for 4 seconds to calibrate P-TS7-P...
