3.2 The Rear Panel/后面板/後窗
For the backplane version, the rear plate includes 15-slot I/O brackets and a
reserved 9-pin D-SUB opening. (see Figure 3.3). For the motherboard version, the
rear plate includes 7-slot I/O brackets, 5 reserved 9-pin D-SUB openings and a 25-
pin D-Sub opening. (see Figure 3.4).

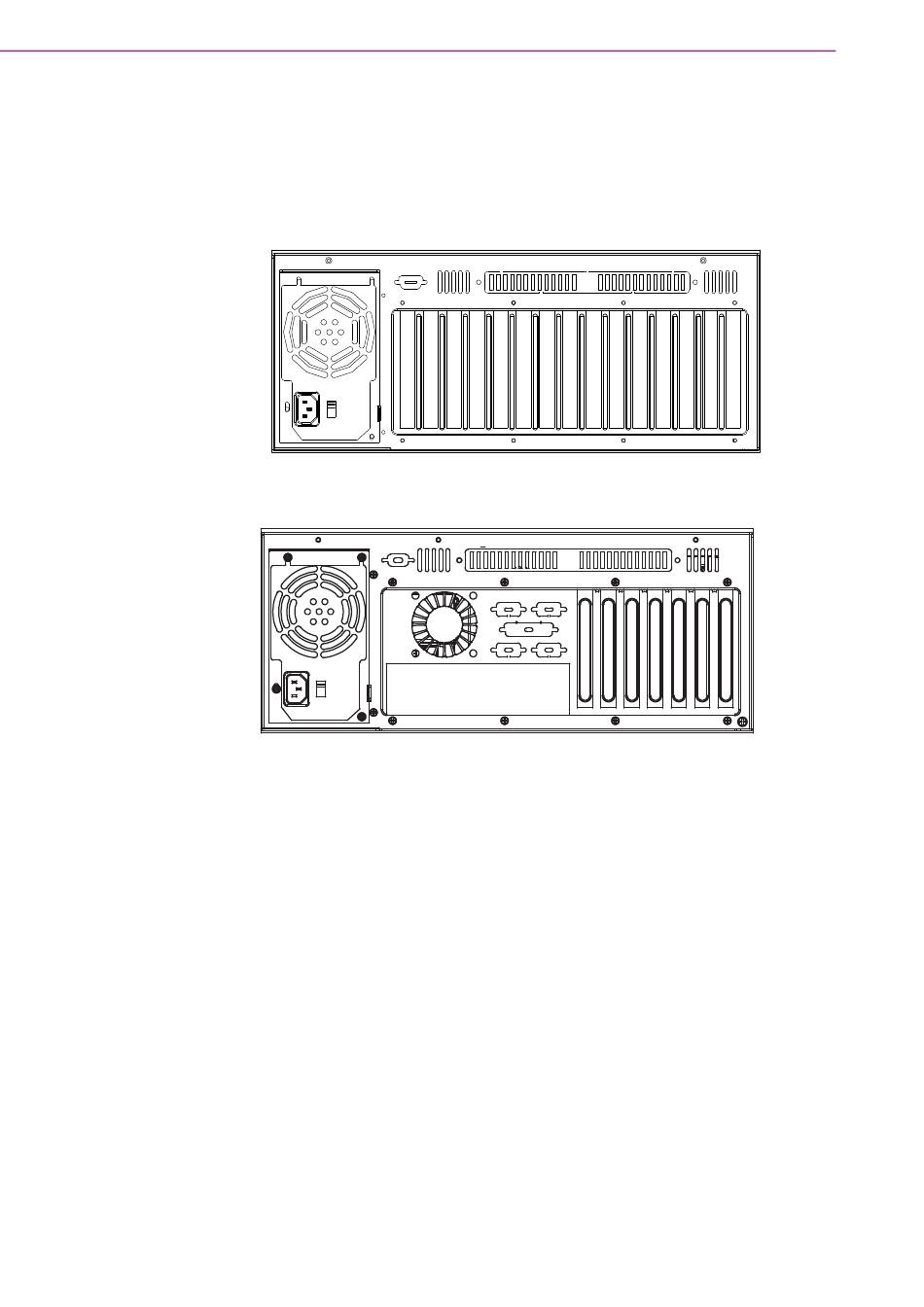

Figure 3.3 Rear Panel of Backplane Version/底板后面板视图/背板板本後窗視圖
Figure 3.4 Rear Panel of Motherboard Version/母板后面板视图/主板版本後窗視
There is a ground screw with a washer located on the lower right of the rear panel.
This will protect the system in the event of electric leakage.
底板的右下角有一个带垫圈的地脚螺钉，可以避免意外漏电对系统造成的损害。
後窗的右下角有一個带墊圈的接地螺絲, 可以避免意外漏電時對系統造成的損害。
