Exploded Diagram & Parts List
Table A.1: Parts List
1
Top cover
2
Rubber cushion
3
Hold down clamp
4
Card slot bracket
5
Under plate
6
Rear plate
7
I/O bracket
8
Card guide bracket
9
Fan bracket
10 12 cm fan
ACP-4010 User Manual/用户手册/用戶手冊

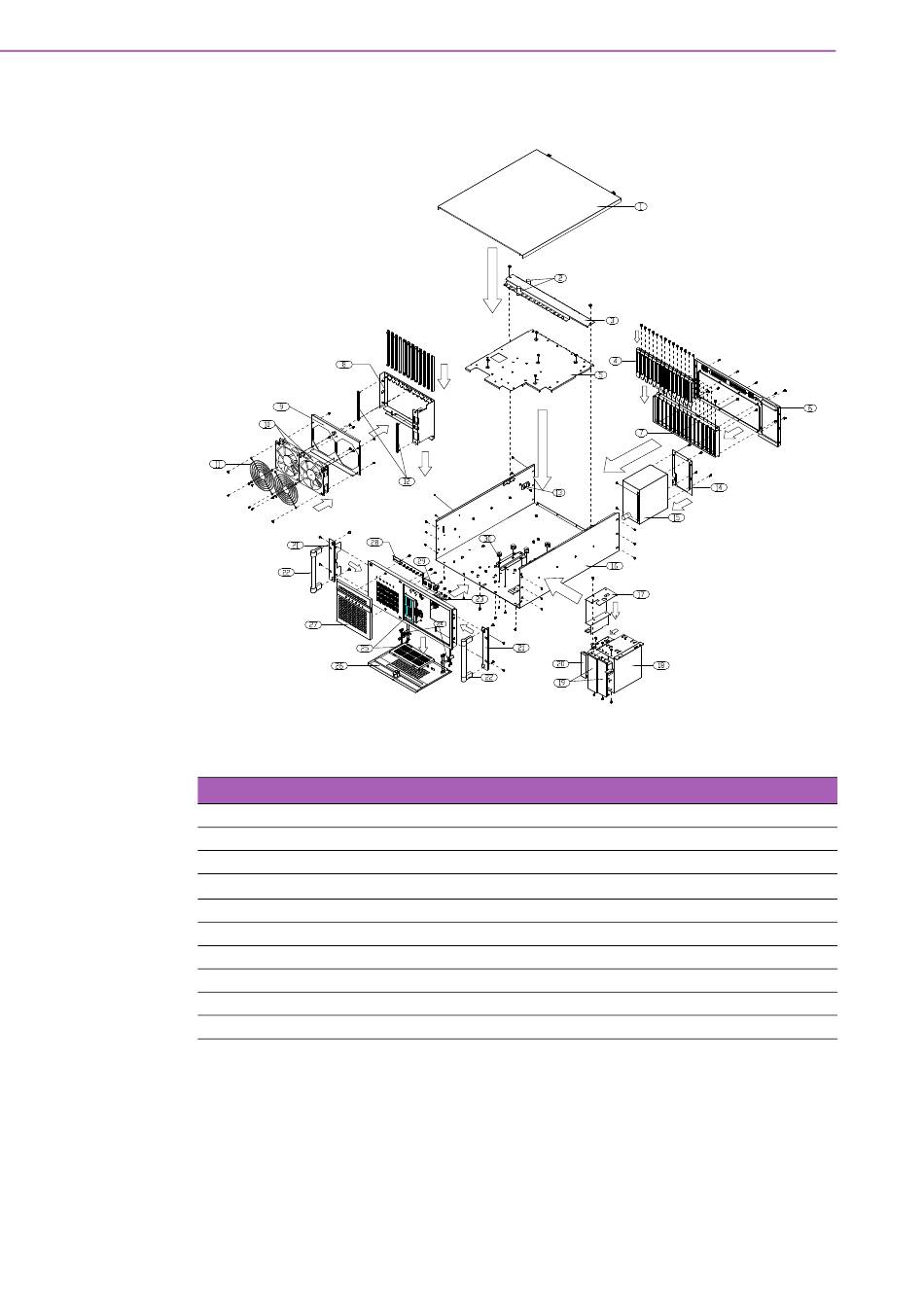

Figure A.1 Exploded diagram
11
12 cm fan guard
12 Guiding fillister
13 Thermal sensor
14 Power supply bracket
15 Power supply
16 Chassis body
17 HDD bracket
18 Drive bay
19 5.25" front cover
20 3.5" front cover
21 Rackmount ear
22 Handle
23 USB port
24 Hinge
25 Filter cover
26 Front door
27 Left front panel
28 LED board
29 Switch bracket
30 Disk mounting bracket
