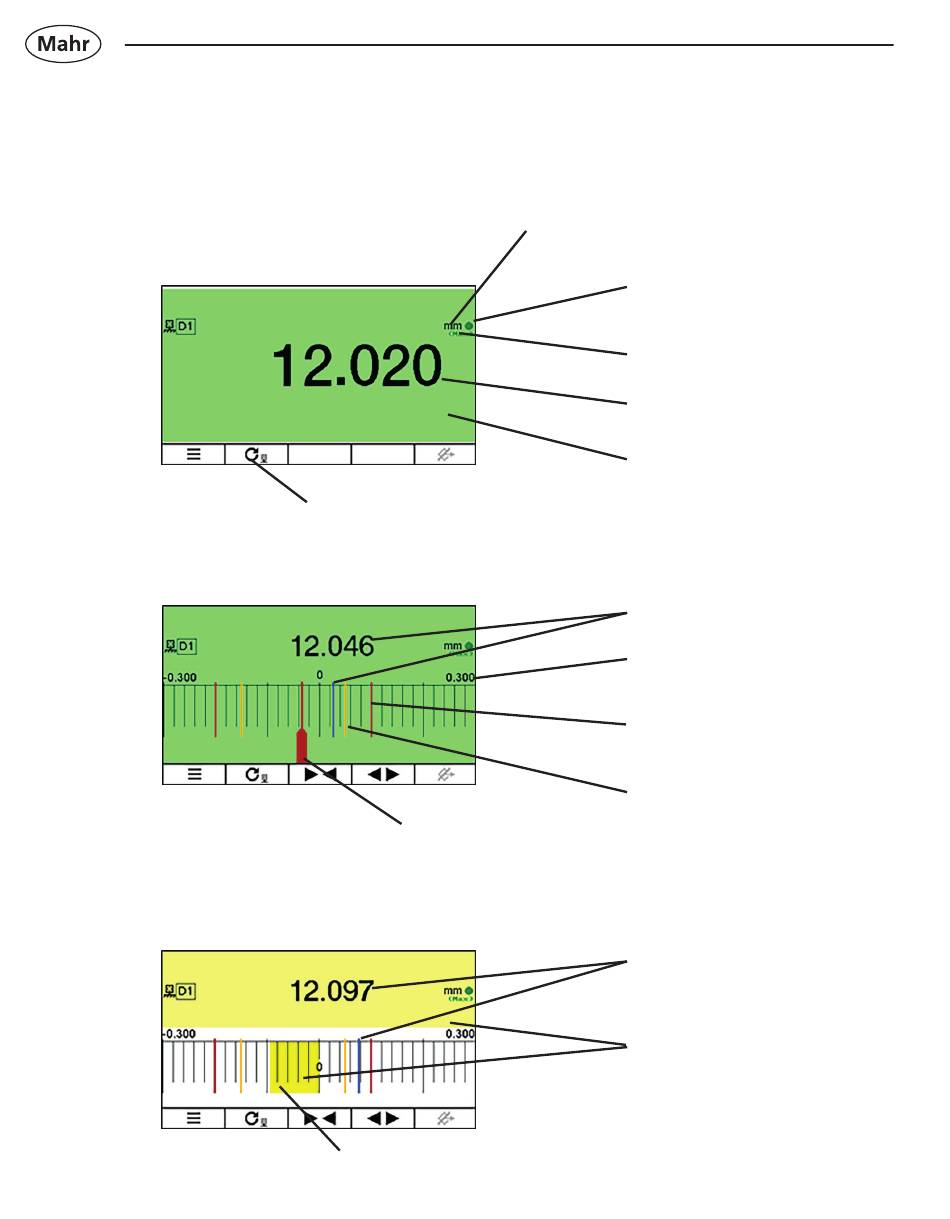

Examples for display style 1 feature with tolerances, warning limits and
max measuring function:
– "Digital" display style
– "Dial and Digital" display style
– "Bargraph and Digital" display style
44
Reset max value
Pointer (current measured value)
Bar (current measured value)
Unit
Measurement active
Function (max)
Measured value (max)
Measured value (max)
is within the tolerance,
background is green
Measured value (max)
Scale end
Tolerance limit
Warning limit
Measured value (max)
Measured value (max) is
greater than the warning
limit, background is yellow
