1.3

Using the measuring module

Measuring module N 1700 is not included with delivery of the C 1202.
!
A measuring module is required to operate the C 1202.

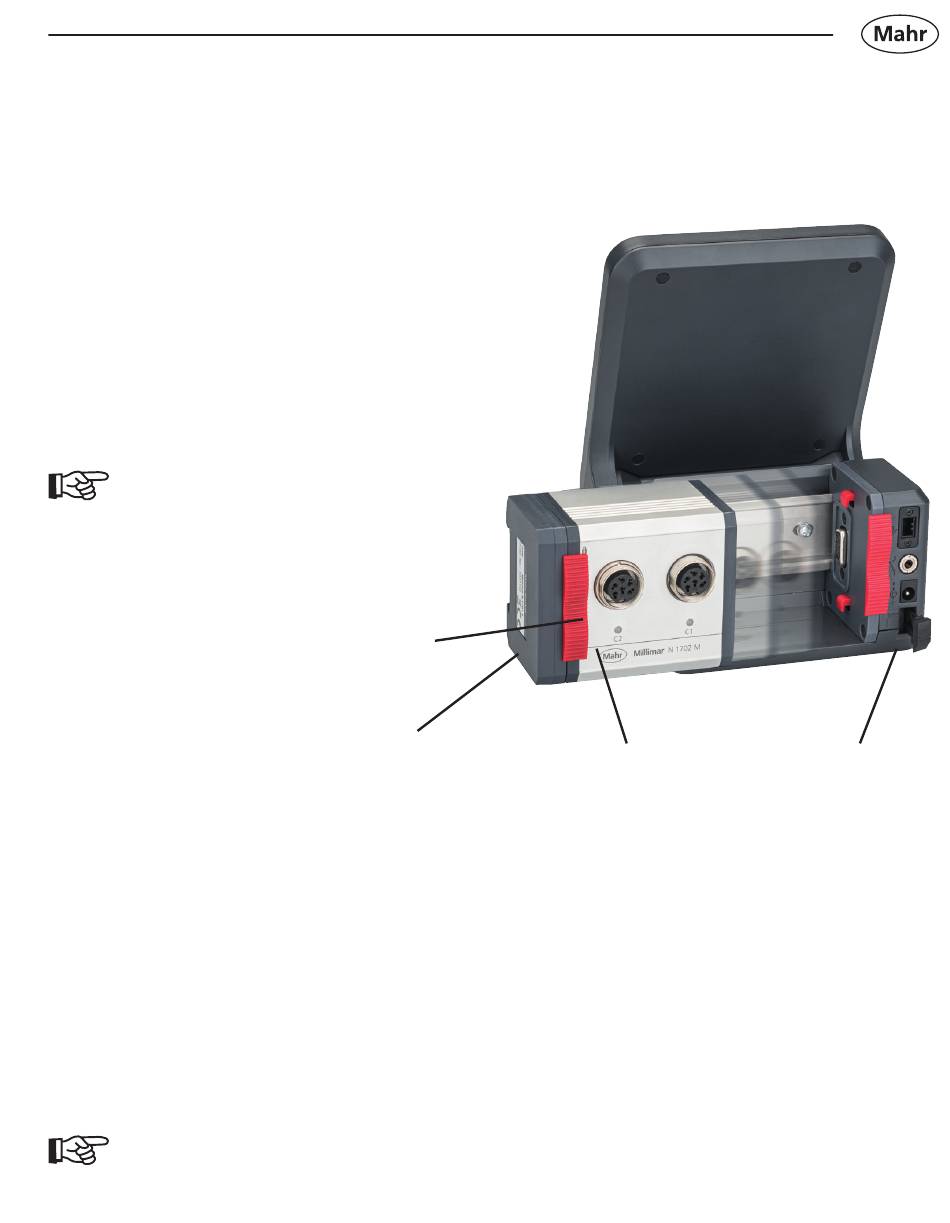

– Slide measuring module N 1700 with
bus termination module onto the rail
as far as the stop.
– Push the two red slide catches down
so that the measuring module and
the bus termination module cannot
come out accidentally.
Measuring module N1700 is
removed in the reverse order.
Bus termination module
Compatible N 1700 measuring modules:
5331120 Millimar N 1702 M
5331121 Millimar N 1702 T
5331122 Millimar N 1702 U
5331125 Millimar N 1702 M-HR
5331161 Millimar N 1702 Vss *
5331150 Millimar N 1701 PM-2500
5331151 Millimar N 1701 PM-5000
5331152 Millimar N 1701 PM-10000
5331155 Millimar N 1701 PF-2500/5000
5331156 Millimar N 1701 PF-PF25./50. 4-J
5331157 Millimar N 1701 PF-10000
Up to two N 1701 PM and N 1701 PF measuring modules can be used at the same time.
* from firmware C 1202 version 1.1.0.0
Mahr GmbH • Millimar C1202
Slide catch
N 1700 module
Module for 2 inductive probes
Module for 2 inductive probes
Module for 2 inductive probes
Module for 2 inductive probes
Module for 2 incremental probes
Module for 1 pneumatic measuring instrument
Module for 1 pneumatic measuring instrument
Module for 1 pneum. measuring instrument
Module for 1 pneum. measuring instrument
Module for 1 pneum. measuring instrument
Module for 1 pneum. measuring instrument
C 1202
11
