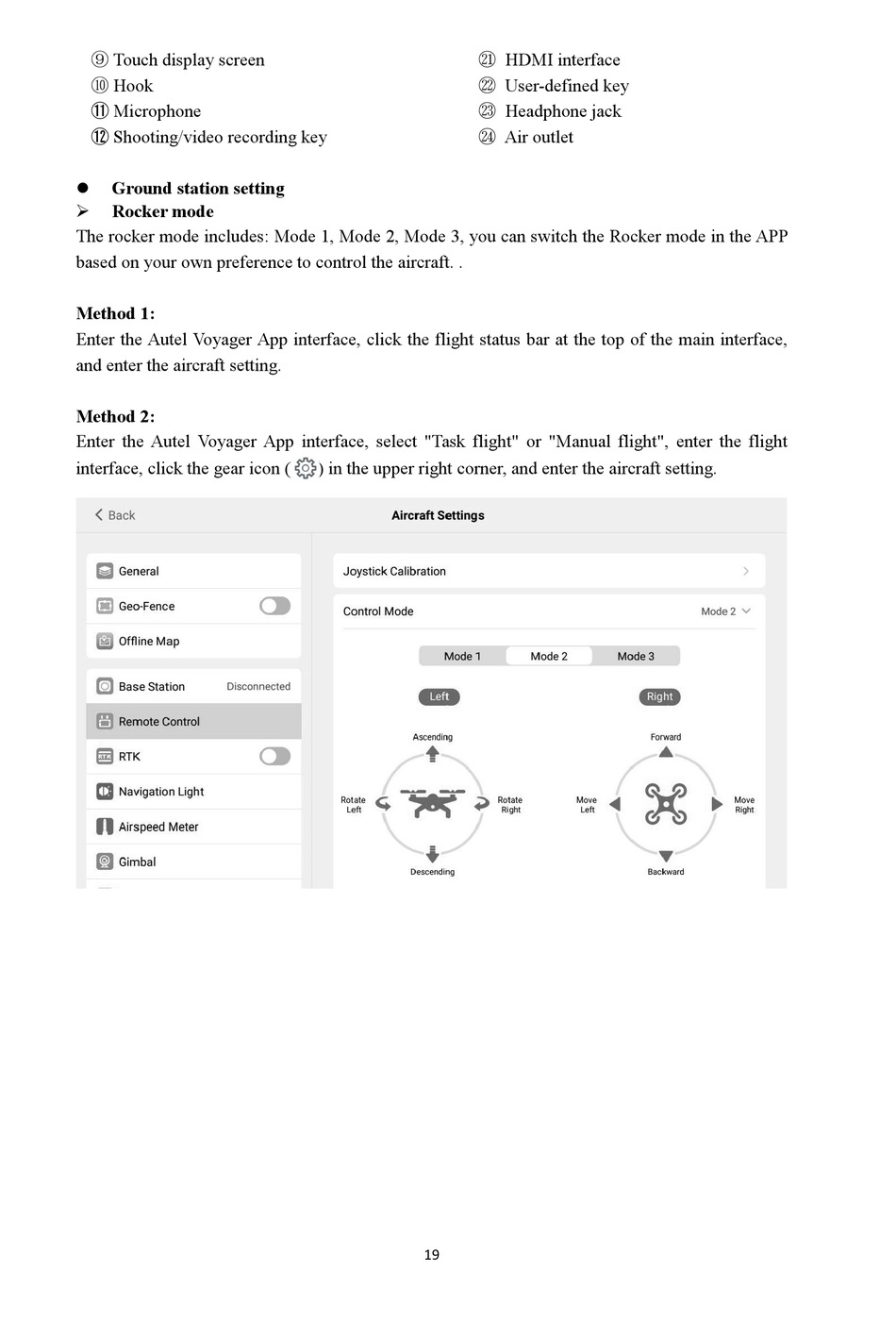

Autel Robotics Dragonfish Pro User Manual page 19

⑨ Touch display screen
⑩ Hook
⑪ Microphone
⑫ Shooting/video recording key
Ground station setting

Rocker mode

The rocker mode includes: Mode 1, Mode 2, Mode 3, you can switch the Rocker mode in the APP
based on your own preference to control the aircraft. .
Method 1:
Enter the Autel Voyager App interface, click the flight status bar at the top of the main interface,
and enter the aircraft setting.
Method 2:
Enter the Autel Voyager App interface, select "Task flight" or "Manual flight", enter the flight
interface, click the gear icon (
㉑ HDMI interface
㉒ User-defined key
㉓ Headphone jack
㉔ Air outlet
) in the upper right corner, and enter the aircraft setting.
19
