Summary of Contents for Autel Robotics Dragonfish Standard

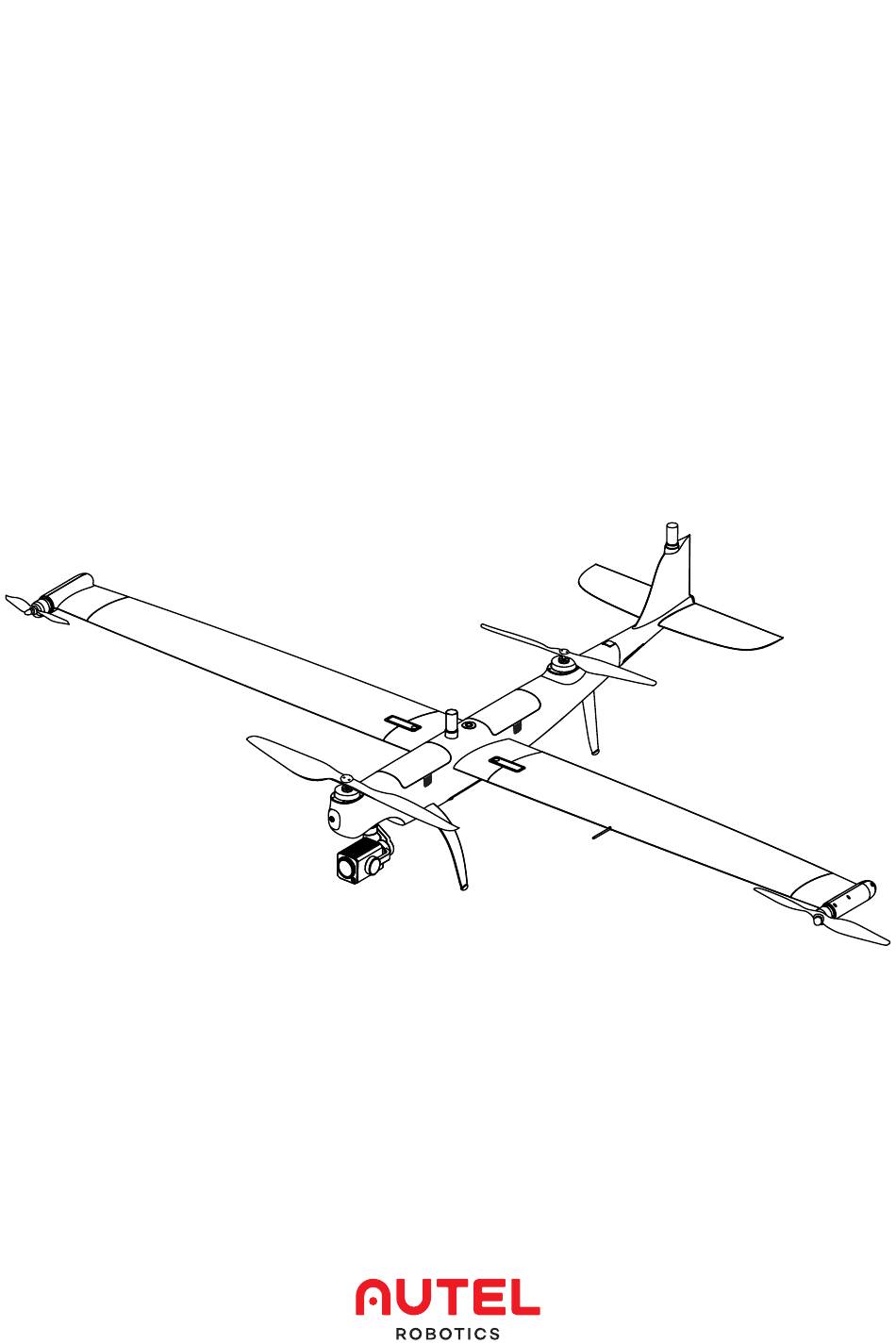

- Page 1 Dragonfish Standard Quick Start Guide...
-
Page 3: Table Of Contents
Contents Item list Getting to know the aircraft Getting to know the mobile ground station Getting to know the base station Using the Drgonfish Standard aircraft Charging Setting up the base station Assembling the aircraft Powering on / Activating the aircraft Powering on the base station Powering on the ground station Powering on the aircraft... -
Page 4: Item List
Item list Aircraft body 9.7 inch ground station Battery Base station x4 (the actual quantity is subject to the purchased set) Charger + AC line Propeller blades Base station antenna Base station feeder Base station tray Base station tripod Base station charger USB Type-C cable Gimbal Camera Repair tool kit... -
Page 5: Getting To Know The Aircraft

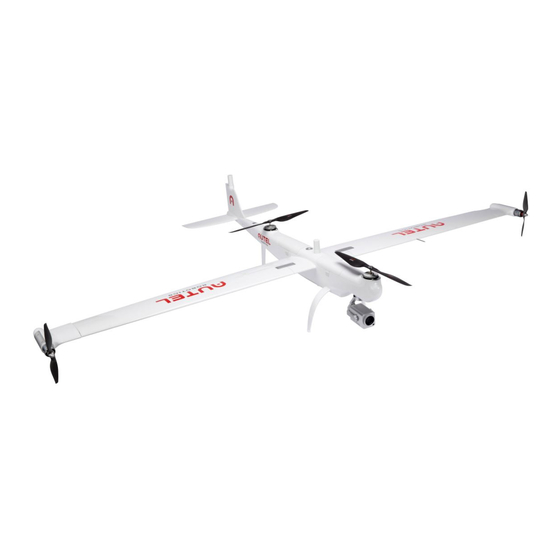

Getting to know the aircraft The Drgonfish Standard aircraft integrates Autel Robotics’ intelligent and superior flight control technology, gimbal technology, and imaging technology. The aircraft boasts a new tilt rotor design that combines the efficiency of fixed-wing aircraft endurance with the takeoff convenience of traditional multi-rotor drones. A 5 second self-check system ensures the aircraft is safe and ready for operation. -
Page 6: Getting To Know The Mobile Ground Station
1. RTK antenna 8. Battery release button 14. Airspeed sensor 2. Propeller blades 9. Front landing gear 15. Tilting wingtip 3. Smart battery 10. Rear landing gear 16. GPS module 4. Power button/indicator 11. Wingtip propellers 17. Ultrasonic Positioning Sensors 5. -
Page 7: Using The Drgonfish Standard Aircraft
1. WiFi indicator 5. Charging port 8. Port cover 2. Linking indicator 6. Frequency button 9. Antenna interface 3. RTK indicator 7. Power button 10. Tripod interface 4. Power indicator Using the Drgonfish Standard Charging Setting up the base station 1. -
Page 8: Assembling The Aircraft
3. Charging the base station 3. Install the antenna on the tripod and connect the antenna feeder to the base station antenna port. Assembling the aircraft 1.Install the left and right wings Align and fasten Align and fasten 2. Install the tail Align and fasten... - Page 9 3. Install the wingtip propeller Before installing or removing the propeller, power off the aircraft (as shown in the illustration). ▶ ▶ Install to the locked position Mount on the base Press and rotate the paddle Locking direction: Press and Rotate in the indicated direction to lock the propeller. Unlocking direction: Press and Rotate the propeller in the opposite direction to unlock it.
-
Page 10: Powering On / Activating The Aircraft
6. Installing the Intelligent Flight Battery When installing or removing the aircraft battery, be sure to power off the aircraft. • Align the battery to the battery interface on the fuselage and install it. Powering on / Activating the aircraft 1. -
Page 11: Flight
Flight Enter the Autel Voyager safe flight interface. Before taking off, please place the aircraft on a flat surface with the tail facing towards you. Manual takeoff ① Switch the ground station gear to M gear. ② Check the aircraft system status. ③... -
Page 12: Automatic Takeoff
Flight Enter the Autel Voyager safe flight interface. Before taking off, please place the aircraft on a flat surface with the tail facing towards you. Automatic takeoff ① Switch the ground station gear to A gear ② Click the Create Mission button to plan the mission ③... -
Page 13: Specifications
Specifications Aircraft Size 2.3*1.29*0.46 m Weight (including two batteries, without gimbal） 7 kg Single battery weight 1.3 kg Maximum load 1.5 kg Maximum take-off weight 8.5 kg Working frequency 902-928 MHz,2.4000-2.4835 GHz,5.725-5.755GHz EIRP (Equivalent radiated power) 900 MHz FCC: <30 dBm 2.4 GHz FCC: <30 dBm SRRC/CE/MIC: <20 dBm;... - Page 14 Vertical take-off and landing: 12 m/s (level 6 wind) Maximum flight time 120 min Supported Payloads DG-Z2, DG-T3, DG-T3H, DG-L20T, DG-M1 Supported Gimbal Configurations Fast Disassembly Ingress Protection Rating IP43 GNSS GPS+GLONASS+BeiDou+Galileo Working temperature -20° C to 50° C 9.7 inch ground control station Image transmission parameters: Maximum transmitting...
- Page 15 5V / 500 mA USB-A interface supply voltage/current Working temperature -20°C to 40°C Storage temperature -20°C to 60°C (within one month) -20°C to 45°C (within three months) -20°C to 30°C (within one year) Charging environment temperature 0°C to 45°C Satellite positioning module GPS+GLONASS+Galileo Size 319×233×74 mm (antenna folded)
- Page 16 Communication Data link Image transmission, Wi-Fi Image transmission parameters: Working efficiency 2.4000-2.4835 GHz; 902-928 MHz 902-928 MHz EIRP (Equivalent radiated power) FCC: < 30 dBm 2.400-2.4835 GHz FCC: < 30 dBm SRRC/CE/MIC: < 20 dBm WIFI parameters: Working efficiency 2.400-2.4835 GHz 5.125-5.25 GHz 5.650-5.755 GHz 5.725-5.850 GHz...
- Page 17 Working temperature -20°C to 50°C DG-Z2 Zoom camera Effective Pixels 3840x2160 8M Zoom 20x zoom, 12x digital zoom, 240x total magification Aperture F2.0 (wide) to 3.8 (tele) Photo Resolution 3840x2160 8M Photo JPEG Video Resolution 3840x2160 8M; 1920x1080 20M Video Wide-angle camera Effective Pixels 4000x3000 12MP...
- Page 18 @ambient temperature -20℃ ~60℃ Scene Range High Gain: -20° to +150°C Low Gain: 0°to +550°C NOTE: This content may be updated without prior notice. You can check the latest version on the official website of Autel Robotics at www.autelrobotics.com...
- Page 20 2021-2022 Autel Robotics Co., Ltd. All Rights Reserved...
