recover the control on your aircraft, when the battery level reaches 15%, you will receive one
serious low battery alarm, and the aircraft will automatically land on the spot. In emergency, you
will need to manually make the aircraft fly to the nearest safe landing point.
Precise landing

Dragonfish Pro integrates high-precision RTK modules and conventional GNSS modules to
provide centimeter-level precise positioning. The aircraft scans and matches terrain features. If the
current topography is matched with that at the take-off point, it will land as close to the take-off
point as possible.
Important
The aircraft will record the take-off point as the default return point.

Select an open and well-lit area (such as grass lawn) as the take-off point.

When the aircraft is ready for landing, it is necessary to ensure that the take-off environment

has no change.

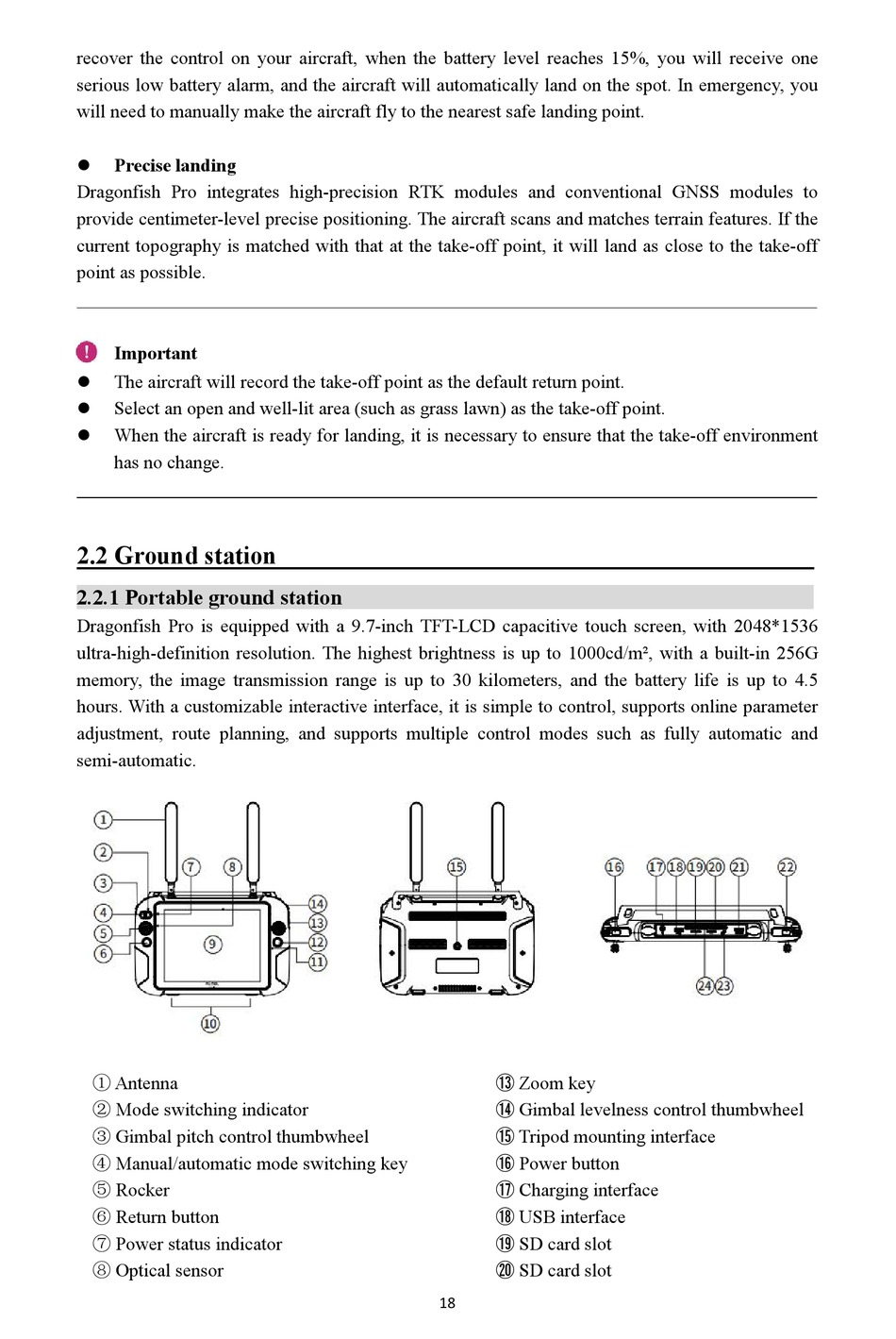

2.2 Ground station

2.2.1 Portable ground station

Dragonfish Pro is equipped with a 9.7-inch TFT-LCD capacitive touch screen, with 2048*1536
ultra-high-definition resolution. The highest brightness is up to 1000cd/m², with a built-in 256G
memory, the image transmission range is up to 30 kilometers, and the battery life is up to 4.5
hours. With a customizable interactive interface, it is simple to control, supports online parameter
adjustment, route planning, and supports multiple control modes such as fully automatic and
semi-automatic.
① Antenna
② Mode switching indicator
③ Gimbal pitch control thumbwheel
④ Manual/automatic mode switching key
⑤ Rocker
⑥ Return button
⑦ Power status indicator
⑧ Optical sensor
⑬ Zoom key
⑭ Gimbal levelness control thumbwheel
⑮ Tripod mounting interface
⑯ Power button
⑰ Charging interface
⑱ USB interface
⑲ SD card slot
⑳ SD card slot
