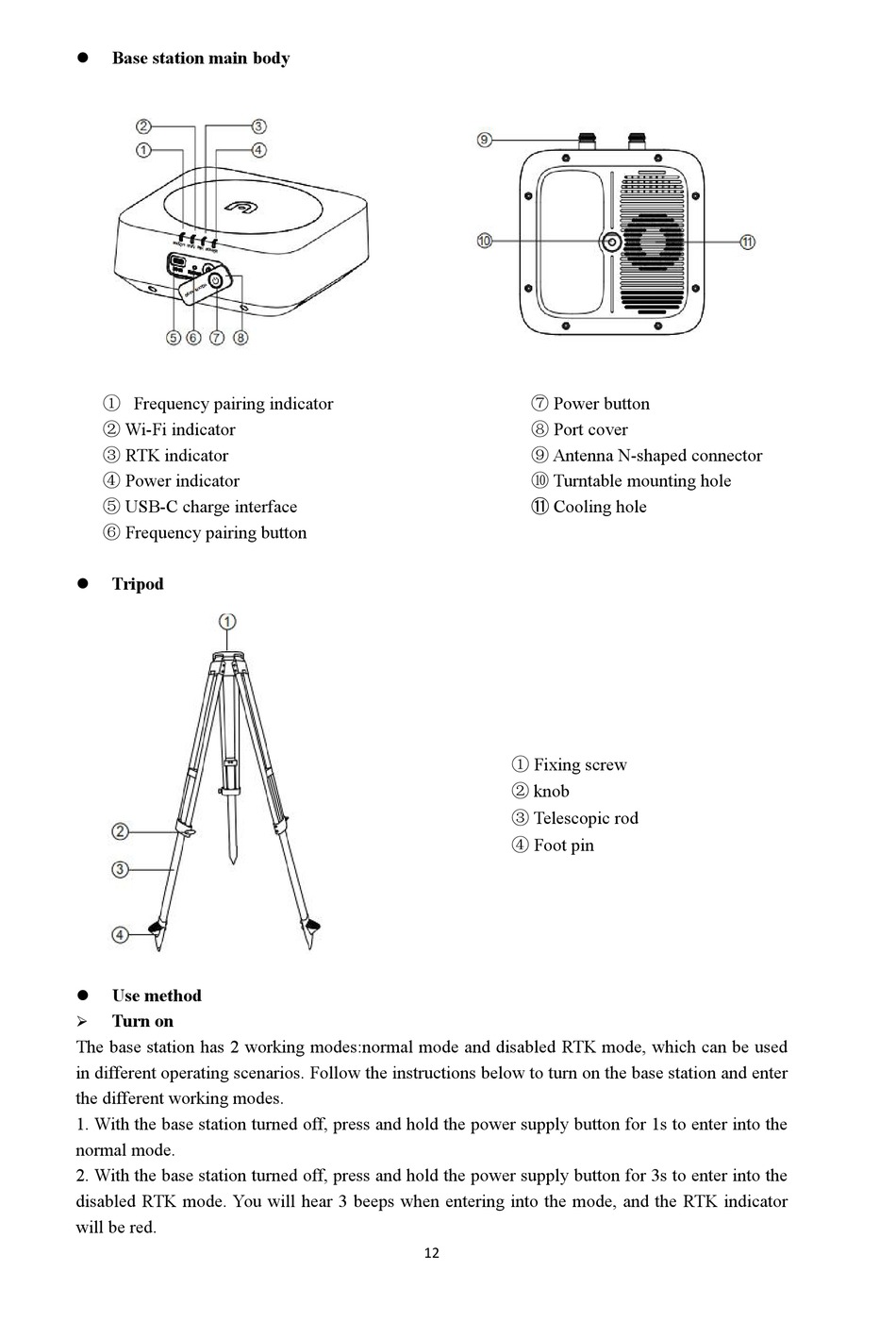

Base station main body
① Frequency pairing indicator
② Wi-Fi indicator
③ RTK indicator
④ Power indicator
⑤ USB-C charge interface
⑥ Frequency pairing button
Tripod
Use method
Turn on
The base station has 2 working modes:normal mode and disabled RTK mode, which can be used
in different operating scenarios. Follow the instructions below to turn on the base station and enter
the different working modes.
1. With the base station turned off, press and hold the power supply button for 1s to enter into the
normal mode.
2. With the base station turned off, press and hold the power supply button for 3s to enter into the
disabled RTK mode. You will hear 3 beeps when entering into the mode, and the RTK indicator
will be red.
⑦ Power button
⑧ Port cover
⑨ Antenna N-shaped connector
⑩ Turntable mounting hole
⑪ Cooling hole
① Fixing screw
② knob
③ Telescopic rod
④ Foot pin
12
