⑨ Rear landing gear
⑩ Wing lock

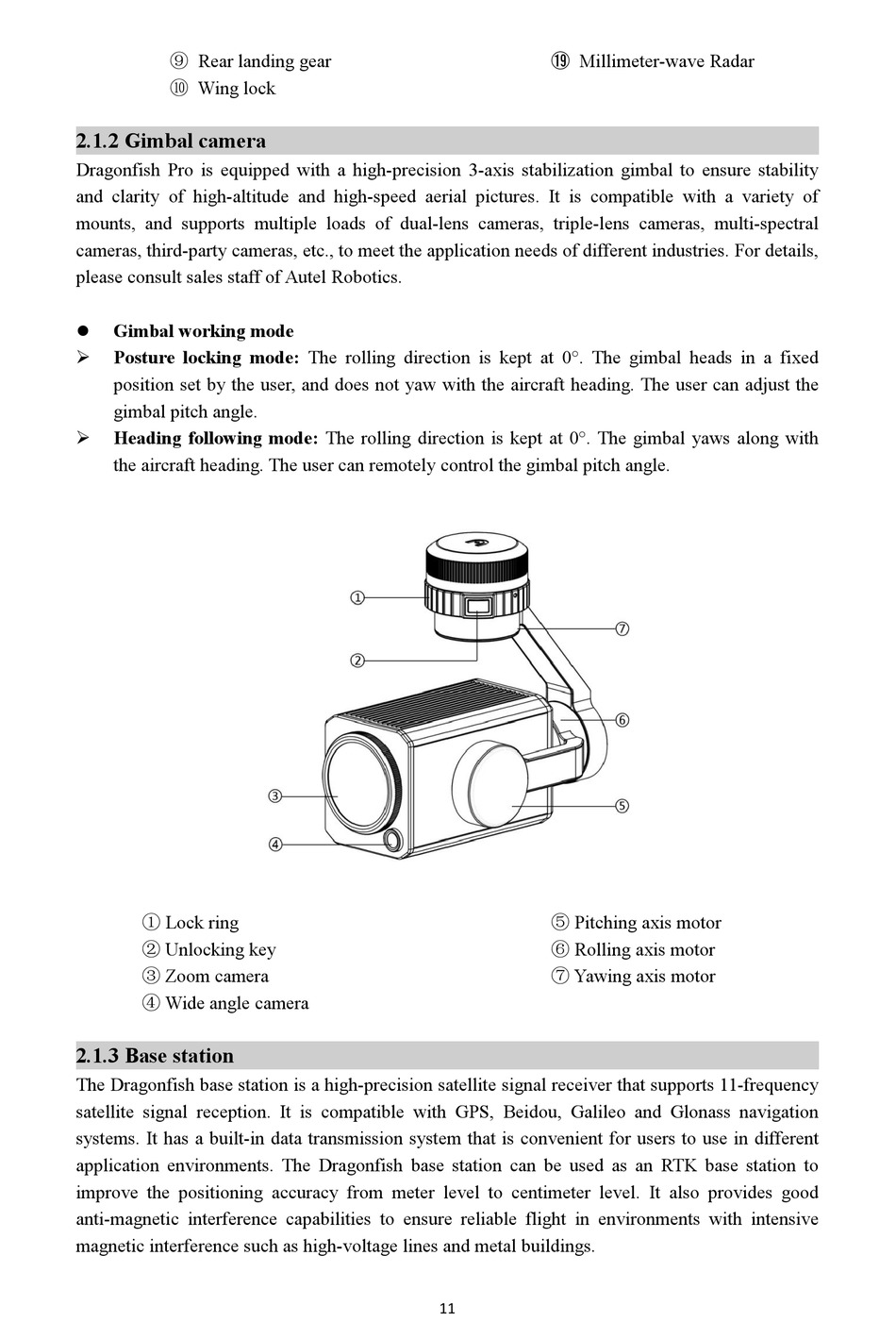

2.1.2 Gimbal camera

Dragonfish Pro is equipped with a high-precision 3-axis stabilization gimbal to ensure stability
and clarity of high-altitude and high-speed aerial pictures. It is compatible with a variety of
mounts, and supports multiple loads of dual-lens cameras, triple-lens cameras, multi-spectral
cameras, third-party cameras, etc., to meet the application needs of different industries. For details,
please consult sales staff of Autel Robotics.
Gimbal working mode

Posture locking mode: The rolling direction is kept at 0°. The gimbal heads in a fixed

position set by the user, and does not yaw with the aircraft heading. The user can adjust the
gimbal pitch angle.
Heading following mode: The rolling direction is kept at 0°. The gimbal yaws along with

the aircraft heading. The user can remotely control the gimbal pitch angle.
① Lock ring
② Unlocking key
③ Zoom camera
④ Wide angle camera

2.1.3 Base station

The Dragonfish base station is a high-precision satellite signal receiver that supports 11-frequency
satellite signal reception. It is compatible with GPS, Beidou, Galileo and Glonass navigation
systems. It has a built-in data transmission system that is convenient for users to use in different
application environments. The Dragonfish base station can be used as an RTK base station to
improve the positioning accuracy from meter level to centimeter level. It also provides good
anti-magnetic interference capabilities to ensure reliable flight in environments with intensive
magnetic interference such as high-voltage lines and metal buildings.
⑲ Millimeter-wave Radar
⑤ Pitching axis motor
⑥ Rolling axis motor
⑦ Yawing axis motor
