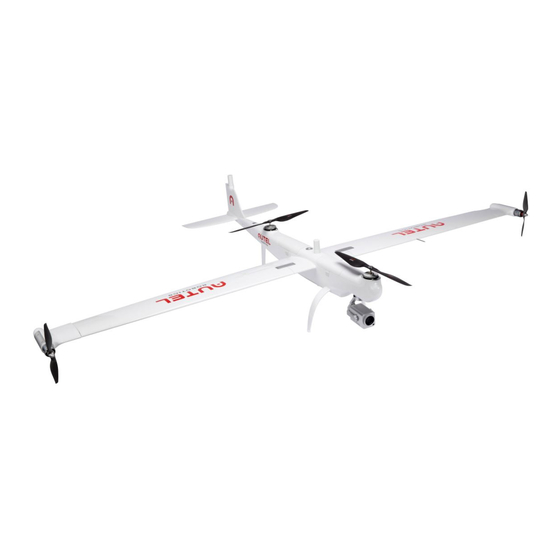

Autel Robotics Dragon Fish Quick Manual

Hide thumbs Also See for Dragon Fish:

Advertisement

Quick Links

Download this manual
Dragon Fish Quick
Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dragon Fish and is the answer not in the manual?

Questions and answers

Related Manuals for Autel Robotics Dragon Fish

Summary of Contents for Autel Robotics Dragon Fish

  • Page 1 Dragon Fish Quick Guide...
  • Page 2 Item List Fusel 9.7-inch ground station...
  • Page 3 base battery statio x 4 pieces (the actual quantity subject purchased kit) Charg wingtip propeller line base Feeder base statio x2 article anten x2roo statio station tripod n tray x1base basex charg TYPE C cable x1root statio repair head tool x1a(head models to the actual...
  • Page 4 The protection level of the fuselage structure can reach IP43 during flight (refer to IEC60529 standard). The Dragon Fish takes up to 120 minutes to sail, the high- definition dual-frequency image transmission distance is as far as 30KM, the whole system is self-checked in 5 seconds, and it is quickly assembled in 3 minutes.
  • Page 5 PSDK to meet the needs of different customers. With Dragon Fish base station, high precision and accurate positioning can be achieved. Dragon Fish battery, IMU, barometer, compass, positioning system are all backed up, multiple redundancy, safe and reliable.
  • Page 6 18. Dust net 19. PTZ installation interface Understanding portable ground station Dragon fish is equipped with a 9.7-inch TFT-LCD capacitive touch screen, which is sensitive to the touch, and has a 2048*1536 ultra-high- definition resolution. The highest brightness reaches 1000 cd/m², which is about twice that of ordinary mobile devices.
  • Page 7 24. Headphone jack 25. Air outlet to know the base station Dragon Fish GNSS base station is a high-precision satellite signal receiver, support GPS, Beidou, Galileo and Glonass navigation System 11 channels [see specifications] satellite signal reception, at the same time built-in carefully adjusted data transmission system, convenient for users to use in different application environments.
  • Page 8 1. WiFi indicator 2. Linking indicator 3. RTK indicator 4. Power indicator 5. Charging port 6. Linking button 7. Power button 8. Port cover 9. Antenna interface 10. Turntable mounting hole use your Dragon Fish Intelligent Flight Battery Charging ⒉Ground Station Charging...

  • Page 9: Set Up The Base Station

    ⒊Base Station Charging Set up the base station ⒈Unfold the tripod, install the base station tray, and lock the tray.
  • Page 10 ⒉Install the base station body to the tray, and tighten the lock on the tray nut. Ensure that the base station is level and stable.

  • Page 11: Assemble The Aircraft

    ⒊Install the antenna on the tripod, and connect the antenna feeder to the base station antenna port. Assemble the aircraft ⒈Install the left and right wings...
  • Page 12 ⒉Install the tail ⒊Install the wingtip propeller Before installing or removing the propeller, turn off the power switch of the aircraft (the picture shows the installation process of the marked propeller and the marked motor base) ⒋Install and mount align and mount Rotate the lock ring to the locked position...
  • Page 13 ⒌Unlock the mount ⒍Install the intelligent flight battery turn on the power ︳Activate the aircraft ⒈Turn on the power of the base station Press and hold the power button for 1 second to turn on the base station...
  • Page 14 ⒉Turn on the ground station power Long press the power button for 3 seconds to turn on the ground station. ⒊power on the aircraft long press the fuselage power button for 3 seconds to turn on the aircraft power...

  • Page 15: Manual Take-Off

    ⒋ activate the aircraft to open the Autel Voyager APP, click the activation button to activate the aircraft. The flight enters the Autel Voyager safe flight interface display. Before taking off, please place the aircraft on a flat ground with the tail facing you. Manual take-off ①...
  • Page 16 ② Aircraft system status check ③ Simultaneously move the joystick in inner eight or outer eight ways and hold for 2 seconds to unlock the motor...
  • Page 17 ④ push up to the left Side stick (mode 2) The aircraft rises and automatically takes off ① Switch the ground station position to A position...
  • Page 18 ② Click the Create mission button to plan the flight mission ③ Aircraft system status check...

  • Page 19: Specifications

    ④ In-flight flight interface display specifications Aircraft size 2.2*1.1*0.45 weight (Excluding battery ,gimbal) 4.4kg maximum load 1.5 kg maximum take-off weight 8.5 kg working frequency 900Mhz, 2.4 GHz transmit power (EIRP) 2.4 GHz SRRC/CE/MIC/KCC: <20 dBm; FCC/NCC: <30 dBm 900MHz FCC: <30 dBm;...
  • Page 20 SRRC/NCC/FCC: <22 dBm CE: <14 dBm hover Accuracy (P-GPS) Vertical: ±0.1 (when visual positioning is working normally) ±0.5 m (when the GPS is working normally) ±0.1 m (when the RTK positioning is working normally) Horizontal: ±0.3 (when visual positioning is working normally) ±...
  • Page 21 flight time maximum 120 min IP rating IP43 GNSS GPS + GLONASS + BeiDou + working temperature -20 ° C to 50 ° C 9.7 inch strip Screen ground station operating frequency 902-928 MHz; 2.4-2.4835 GHz maximum signal effective distance NCC / FCC: 10 km (no interference, no obstruction) CE / MIC: 5 km...

  • Page 22: Base Station

    storage space ROM 256GB + expandable (via micro SD card) video output interface HDMI interface USB-A interface supply voltage / 5V / 500m A current Working environment temperature -20℃ to 40℃ Storage environment temperature -20℃ to 60℃ (within one month) -20℃...
  • Page 23 For example, if the distance from the base station is 1 km, the accuracy is 1.1 cm. Positioning update rate 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20Hz cold start <40 s hot start <10 s recapture <1 s initialization reliability >...
  • Page 24 Height difference between the end of 2m, and in the ground station 10m, height from the ground earth station 1.2 m) power consumption 7.5 W power supply 5 to 20V DC battery type: lithium polymer battery capacity: 4950 mAh energy: 57.1 WH working time >...
  • Page 25 The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. IC STATEMENT This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: This device may not cause interference;...
