Introduction ..................................................................................................................................... 2
Scope of Application........................................................................................................................ 2
Applicable Models ................................................................................................................... 2
Applicable Users ...................................................................................................................... 2
Applicable Environment ......................................................................................................... 2
Daily Inspection and Maintenance ................................................................................................ 3
Flight Preparation Inspection ................................................................................................ 3
Pre-flight Inspection................................................................................................................ 9
Post-flight Inspection ............................................................................................................ 16
Post-flight Maintenance ........................................................................................................ 17
Regular Inspection and Maintenance .......................................................................................... 18
Regular Inspection ................................................................................................................ 18
Special Inspection .................................................................................................................. 20
Verification after Accident .................................................................................................... 20
Flight Log and Record .................................................................................................................. 20
Aircraft File ........................................................................................................................... 20
Inspection Log ....................................................................................................................... 22
Maintenance Log ................................................................................................................... 22
Hardware Change Record .................................................................................................... 22
Record of Software Status and Upgrading ......................................................................... 23
After-sales Services ....................................................................................................................... 24
Policies about After-sales Services ....................................................................................... 24
Flight Accident Treatment and UAV Maintenance ............................................................ 24
Mailing Channels .................................................................................................................. 25

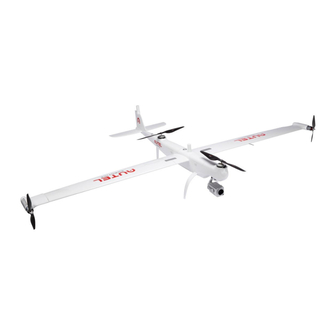

Dragonfish Series Maintenance Manual
Dragonfish Series Maintenance Manual
Table of Contents
Advertisement
Table of Contents
Related Manuals for Autel Robotics Dragonfish Series
Summary of Contents for Autel Robotics Dragonfish Series
-
Page 1: Table Of Contents
Dragonfish Series Maintenance Manual Dragonfish Series Maintenance Manual Table of Contents Introduction ............................. 2 Scope of Application........................2 Applicable Models ........................2 Applicable Users ........................2 Applicable Environment ......................2 Daily Inspection and Maintenance ....................3 Flight Preparation Inspection ....................3 Pre-flight Inspection........................ -
Page 2: Introduction
The Dragonfish Series Maintenance Manual (hereinafter referred to as “the Manual”) is a tool document prepared based on the aforesaid requirements, which can be referred to by the maintenance workers and users of Dragonfish series products (hereinafter referred to as “Dragonfish”) for necessary inspection and maintenance in their whole life cycle so that Dragonfish... -
Page 3: Daily Inspection And Maintenance
Dragonfish Series Maintenance Manual Daily inspection 1. Clean environment with no foreign matters, dusts or maintenance accumulated water; 2. No irrelevant personnel or foreign matters within a radius of 10 m; 3. No electromagnetic or signal interference; 4. No signal blocking, etc. - Page 4 Dragonfish Series Maintenance Manual sound; Inspect if front and rear undercarriages are mounted stably or become loose or move; Inspect the connection of right and left wingtips and wing and if they become loose or move along extended direction; inspect if connecting rod is bent or deformed;...
- Page 5 Dragonfish Series Maintenance Manual Battery 1. Inspect if there is any damage or dirt on battery surface; if so, replace or clean it in time; 2. Inspect if there is any dirt or foreign matter on the interface of battery and battery bin;...
- Page 6 Dragonfish Series Maintenance Manual 8. Other emergency materials. List of Power-on Inspections Types Emphasis Body structure 1. Inspect if the body has any abnormal movement or sound; 2. Rotate wingtip softly to inspect if there is any excessive clearance or gap at wingtip;...
- Page 7 Dragonfish Series Maintenance Manual 2. Confirm if there is any error information of automatic inspection by running self-inspection process via APP; Power 1. Unlock ground trial run with an idle speed manually after self-inspection, to observe motor rotation and confirm rotation direction of motor;...
- Page 8 Dragonfish Series Maintenance Manual ① RTK antenna ⑩ Rear tripod ② Fuselage blade ⑪ Wingtip paddle ③ Smart battery ⑫ Wing motor ④ Power button / indicator ⑬ Horizontal tail ⑤ Wing buckle ⑭ Pitot tube ⑥ Fuselage motor ⑮ Rotating wingtip ⑦...
-
Page 9: Pre-Flight Inspection
Dragonfish Series Maintenance Manual Indicators: Left wing tip indicator flashes red, right wing tip indicator flashes green, and tail wing indicator flashes white. Pre-flight Inspection Types Emphasis Body Visually inspect the surface of all UAV parts and in particular, the surface of key parts to confirm their intactness, structural deformation, damage, rupture, cracking or surface dirt;... - Page 10 Dragonfish Series Maintenance Manual center for fastening. Inspect the connection of right and left wingtips and wing and if they become loose or move along extended direction; inspect if connecting rod is bent or deformed; Pull the wing tip in...
- Page 11 Dragonfish Series Maintenance Manual Fuselage wing latch Solution： a. Visually inspect the latch and cover plate to confirm whether there is serious deformation. If so, please contact the local after-sales technicians to repair and replace the latch; b. Close the latch and confirm whether the latch base is displaced. If so, please contact the local after-sales technicians to repair and replace the latch;...
- Page 12 Dragonfish Series Maintenance Manual a1. If it can be reset, to use normally; a2. If it cannot be reset, contact local after-sales technicians for inspection and maintenance. b. Visually inspect the interface surface. If there is any dirt or foreign matter, please contact the local after-sales technician for guidance and cleaning.
- Page 13 Dragonfish Series Maintenance Manual maintenance; b. If there is dirt or blockage, please contact the local after-sales technician for guidance and cleaning. 12. Inspect if ultrasonic device is mounted stably, if there is any dirt on surface and if heat emission hole is blocked by foreign matters;...
- Page 14 Dragonfish Series Maintenance Manual Solution: After the wing and tail are inserted into the fuselage, fasten the lock and hook, and check the gap at the wing body connection and tail connection. If the gap is greater than 1mm, please contact the local after-sales technicians for positioning analysis to confirm whether to repair or replace the parts.
- Page 15 Dragonfish Series Maintenance Manual aging or softening. If so, clean and replace it in time; 5. Inspect if the rotation direction of paddle is correct after mounting it correctly; Battery 1. Inspect if there is any damage or dirt on battery surface; if so, replace or clean it in time;...
-
Page 16: Post-Flight Inspection
Dragonfish Series Maintenance Manual Battery 1. Inspect if all batteries are fully charged; 2. Inspect if the battery capacity of aircraft and cell voltage are normal and if battery circulation times are relatively consistent via APP battery page. Gimbal 1. Inspect if gimbal can finish self-inspection normally;... -
Page 17: Post-Flight Maintenance
Dragonfish Series Maintenance Manual Types Emphasis Body structure 1. Inspect if UAV parts are damaged, collided or deformed; 2. Inspect if all connection structures are free of abnormalities, such as rupture and loosening; 3. Inspect if the clearance of steering engine becomes excessive further. -
Page 18: Regular Inspection And Maintenance
According to the regulations of aviation industry and traffic mode, it is suggested to maintain Dragonfish series by following the plan combined with daily and regular inspection and maintenance so as to ensure flight safety and optimize the best use status of UAV. - Page 19 Dragonfish Series Maintenance Manual Inspection of power system 1. Dismantle wingtip structure; 2. Inspect if transmission structure is normal, such as sleeve and connecting rod; 3. Inspect if wingtip steering engine is normal; 4. Dismantle wingtip motor; 5. Detect if there is an excessive clearance in wingtip quick release structure;...
-
Page 20: Special Inspection
Dragonfish Series Maintenance Manual instruments to confirm problems such as damage and rupture; 5. Repair defective parts and components in time; 6. Confirm potential hazard based on part wearing status, and remove and repair these problems. Change of core parts 1. - Page 21 Dragonfish Series Maintenance Manual ⑦ Battery bin ⑧ Tail wing ⑨ Avionics device ⑩ Base station Remote control Battery Remarks...
-
Page 22: Inspection Log
Dragonfish Series Maintenance Manual Inspection Log Checklist of “Dragonfish” Inspection date Contents inspected Body structure Power system Accumulated flight Battery Gimbal hours Base station system Remote control Inspection type Accessories and system Inspectors ... -
Page 23: Record Of Software Status And Upgrading
Dragonfish Series Maintenance Manual Record of Software Status and Upgrading Record of “Dragonfish” Software Upgrading Date of Upgrading Module Ver. No. Prior to Upgraded by Upgrading... -
Page 24: After-Sales Services
5. The after-sales engineer will bring forth a solution after accident analysis. Loss Assessment of Accident Where the loss of your Autel Robotics products falls into the scope of warranty, please feel free to dial (844) 460-0454 or send an email to enterprise@autelrobotics.com for repairing and consultation, and then send your damaged Autel Robotics to our official outlet designated so that our professional after-sales engineer will make assessment as appropriate. -
Page 25: Mailing Channels
Dragonfish Series Maintenance Manual Mailing Channels Please feel free to contact dealers or dial our after-sales service hotline (844) 460-0454 or send an email to enterprise@autelrobotics.com...
