Summary of Contents for Kramer VP-211DS
- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VP-211DS Automatic VGA / Audio Switcher...
-
Page 2: Table Of Contents
Figure 3: VP-211DS Automatic VGA / Audio Switcher Connections Figure 4: Remote Terminal Block Connector Tables Table 1: VP-211DS Automatic VGA / Audio Switcher Features Table 2: VP-211DS Automatic VGA / Audio Switcher Underside Features Table 3: Technical Specifications of the VP-211DS Automatic VGA / Audio Switcher 10... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
Overview Overview Your Kramer VP-211DS is a high performance 2x1 automatic switcher for VGA/SVGA/XGA/UXGA and stereo audio signals. The VP-211DS detects the presence of the active VGA-type input signal from either IN 1 (the default ) or IN 2—depending on how the DEFAULT SELECT switch is set, as section 5.2 describes—and automatically routes it to the acceptor connected to the XGA... -
Page 6: Your Automatic Vga / Audio Switcher

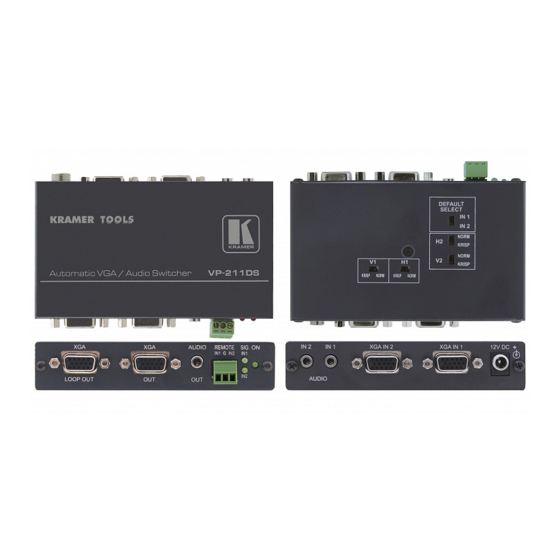

Your Automatic VGA / Audio Switcher Your Automatic VGA / Audio Switcher Figure 1 and Table 1 define the VP-211DS: Figure 1: VP-211DS Automatic VGA / Audio Switcher Table 1: VP-211DS Automatic VGA / Audio Switcher Features Feature Function 12V DC... -
Page 7: Figure 2: Vp-211Ds Automatic Vga / Audio Switcher Underside
Your Automatic VGA / Audio Switcher Figure 2 and Table 2 define the underside of the VP-211DS: Figure 2: VP-211DS Automatic VGA / Audio Switcher Underside Table 2: VP-211DS Automatic VGA / Audio Switcher Underside Features Feature Function DEFAULT Set the switch to IN 1 to select input signal 1, as default; or to IN 2, to SELECT Switch select input signal 2 as default (see section 5.2) -
Page 8: Using The Automatic Vga / Audio Switcher
If required, set the Hs and Vs switches for input 1 (H1 and V1) and input 2 (H2 and V2). 1 Switch OFF the power on each device before connecting it to your VP-211DS. After powering up your VP-211DS, switch on the power on each device... -
Page 9: Figure 3: Vp-211Ds Automatic Vga / Audio Switcher Connections
Using the Automatic VGA / Audio Switcher Figure 3: VP-211DS Automatic VGA / Audio Switcher Connections... -
Page 10: Selecting The Default Vga Master Source Signal
No signal at all (that is, when there is no active input from a source at XGA IN 1 or at XGA IN 2), the VP-211DS will still route XGA IN 2 to the XGA OUT, and continue to examine XGA IN 1 input (when IN 1 is selected as the default), switching back to it when it detects a valid signal. -
Page 11: Connecting The Remote Connector
XGA IN 1 (displaying a blank screen) by attaching PIN IN 1 to PIN G. 1 Note that the connection should be permanent, since the VP-211DS will revert to an automatic switcher when the connection is removed... -
Page 12: Technical Specifications
Technical Specifications Technical Specifications Table 3 includes the technical specifications: Table 3: Technical Specifications of the VP-211DS Automatic VGA / Audio Switcher INPUTS: 2 VGA/UXGA on 15-pin HD connectors 2 unbalanced stereo audio on 3.5mm mini audio connectors OUTPUTS: 1 VGA/UXGA on a 15-pin HD connector 1 VGA/UXGA on a 15-pin HD connector (input #1 loop) 1 unbalanced stereo audio on a 3.5mm mini audio connector... - Page 13 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
