RECOMMENDED SETTING
RIDER + BAGS AND
RIDER + PASSENGER
TYPE OF ADJUSTMENT
RIDER ONLY
TOP CASE OR RIDER
+ BAGS AND TOP
+ PASSENGER
CASE
PRE-LOAD (RING)
1 notch
3 notches
7 notches
HYDRAULIC BRAKING (ADJUSTER) - FROM
2 turns
1 a turn
0.5 turns
COMPLETELY CLOSED (*) OPEN (**)
(*) = clockwise
(**) = anticlockwise

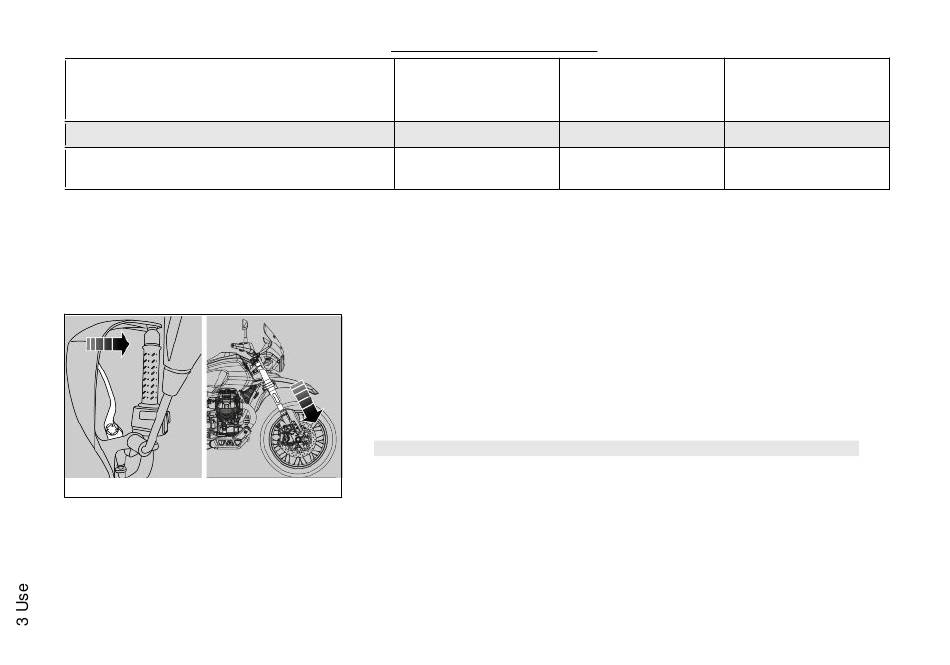

Front Fork Adjustment (03_07, 03_08)
Operating the front brake lever, press the handlebar repeatedly to send the fork fully
down. The shock absorber should compress and extend smoothly with no signs of oil
leakage on the stanchions.
Check the tightening of all the elements and the correct operation of the front and rear
suspension joints.
IMPORTANT
TO HAVE THE FRONT FORK OIL AND OIL SEALS REPLACED, CONTACT AN
03_07
Official Moto Guzzi Dealer.
