RT540E OPERATOR MANUAL

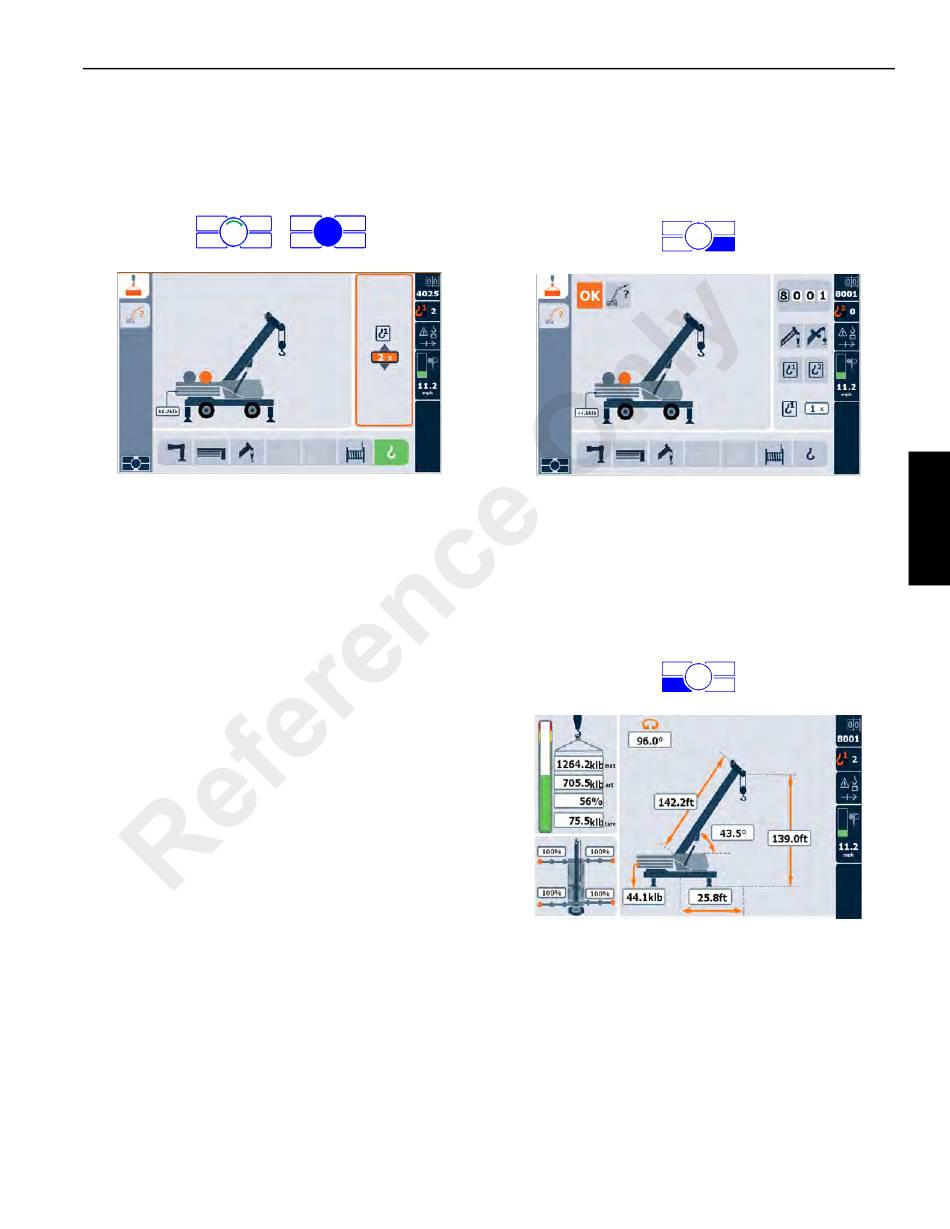

Reeving Selection
Turn jog dial clockwise to select the icon for reeving options.
Press ENTER a second time and turn dial to change reeving
number options.
Press ENTER button on Jog Dial to choose and set the
desired reeving option and move on to the next screen.
GROVE
OPERATING CONTROLS AND PROCEDURES

Switch to RCL Home Screen Display

Press Screen Toggle button (4) (Figure 3-13) on the Jog Dial
menu control to switch to the RCL main menu screen.
Press ENTER on Jog Dial or Menu button to access RCL
Main Screen. This screen appears after the key is turned on,
but the operator must press the tab button to display the tare
value.
Published 01-15-2016, Control # 526-01
3
3-39
