Exhaust System Cleaning Switch - Manitowoc Grove RT540E Operator's Manual

OPERATING CONTROLS AND PROCEDURES

Exhaust System Cleaning Switch

Extreme Heat Hazard!
During the cleaning process the exhaust becomes very
hot. Do not park the vehicle near objects that are
flammable.
Use caution near the exhaust tailpipe as it will also
become very hot.
The Exhaust System Cleaning Switch (8) (Figure 3-4) is
located on the right side of the overhead control panel. This
switch is a three position switch, Inhibit Cleaning/Permit
Active Cleaning/Initiate Manual Cleaning. Center position
enables clean to occur when required, or press this switch to
force manual cleaning to begin immediately or to disable
cleaning indefinitely:
• Manual Cleaning
• Inhibit Cleaning
8522
3-6
WARNING
(7649-10)
(7649-11)
1
2
FIGURE 3-5
Published 01-15-2016, Control # 526-01
RT540E OPERATOR MANUAL
To manually clean, set the crane parking brake, the crane
transmission must be in neutral and have the brake and
throttle pedals released. Refer to Exhaust System Cleaning
(Tier 4 Only), page 7 for cleaning mode definitions and a
description of when manual cleaning is needed.
Set up a safe area around the crane's exhaust; remove tools,
rags, grease or any debris from the engine exhaust area.
With the engine idling push the Cleaning Switch (8) to initiate
manual cleaning.
Within 5 seconds the engine should rev up to 1000 to 1400
rpm. The engine will continue to run at this speed for up to 45
minutes.

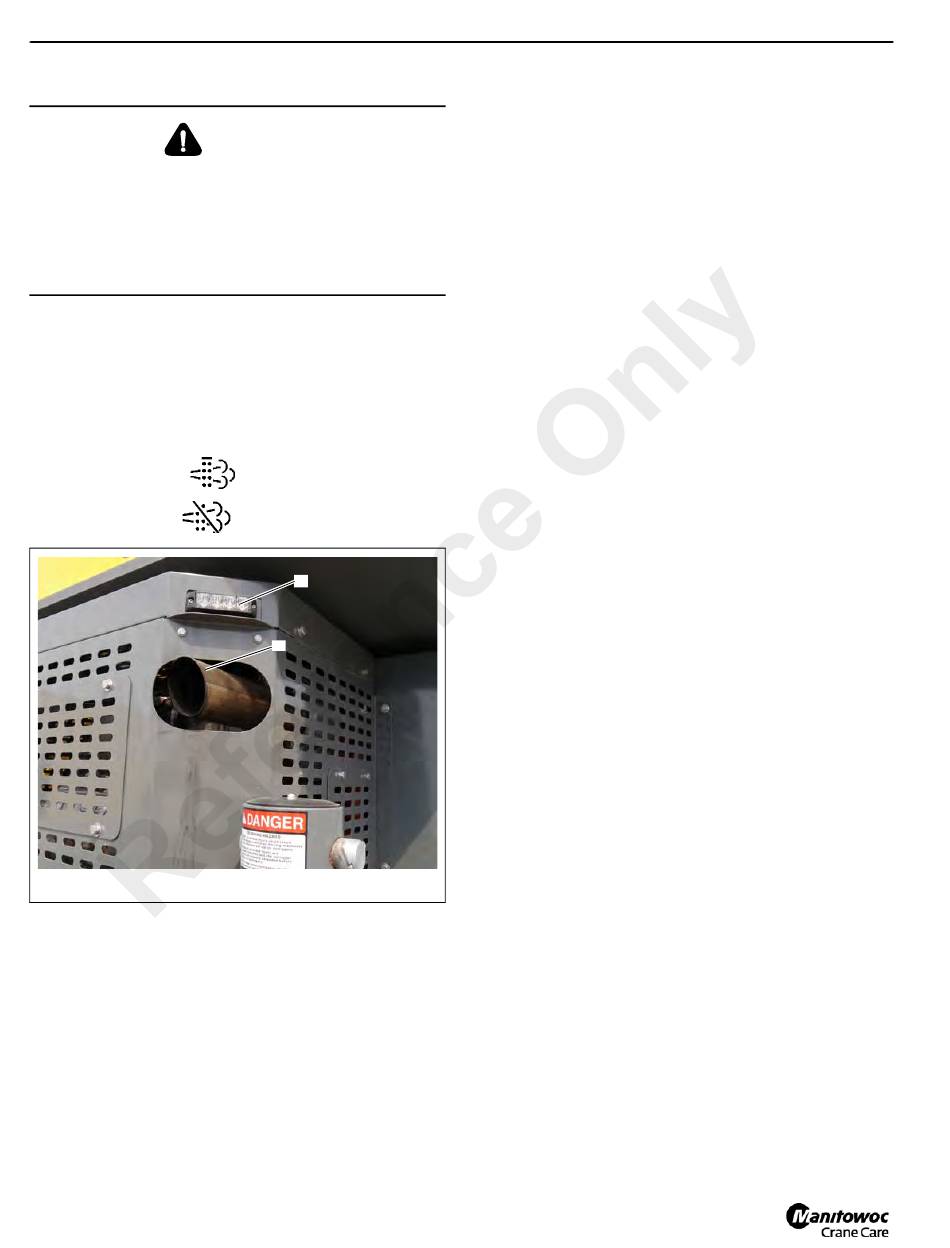

As a warning, the light (1, Figure 3-5) above the exhaust pipe
(2, Figure 3-5) will blink during exhaust system cleaning.
Pressing brake or throttle pedal during cleaning or activating
the Inhibit Cleaning Switch will interrupt the manual cleaning
process.
Make sure the crane and surrounding area are monitored
during manual cleaning. If any unsafe condition occurs, shut
off the engine immediately.
During this period the sound of the engine may change.
When manual cleaning is complete the engine will return to
it's normal idle speed.
