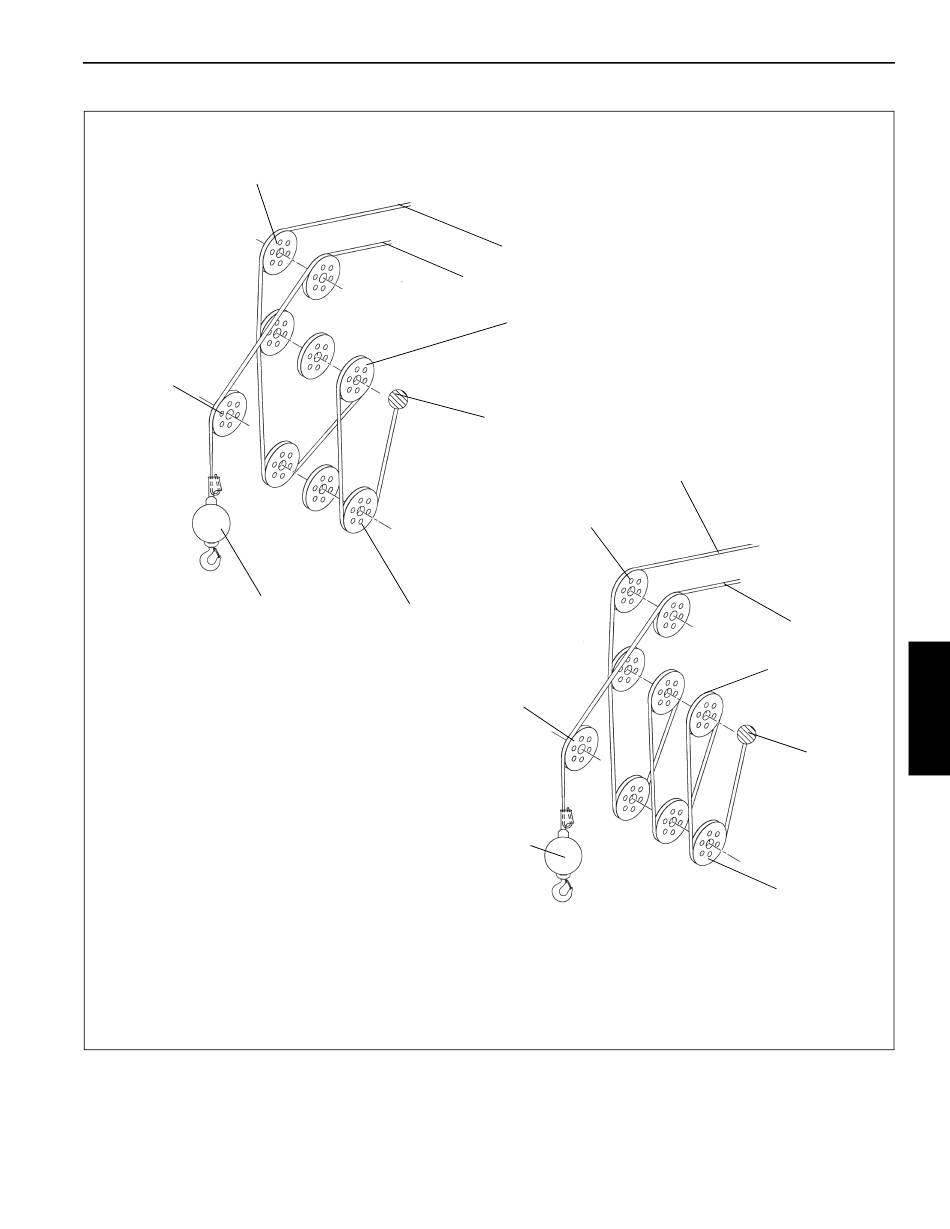

RT765E-2 OPERATOR MANUAL
SET-UP AND INSTALLATION
Upper Boom
Nose Sheaves
To Main Hoist
To Aux Hoist
Bottom Boom
Nose Sheaves
Aux Nose
Boom Nose
Dead End
To Main Hoist
Upper Boom
Nose Sheaves
Ball
Hookblock
To Aux Hoist
Sheaves
FOUR PARTS LINE
Bottom Boom
Nose Sheaves
4
Aux. Nose
Boom Nose
Dead End
Ball
Hookblock
Sheaves
SIX PARTS LINE
3 SHEAVE HOOKBLOCK
FIGURE 4-8 continued
Grove
4-7
Published 4-09-2021, Control # 364-11
