CRANE DIMENSIONS

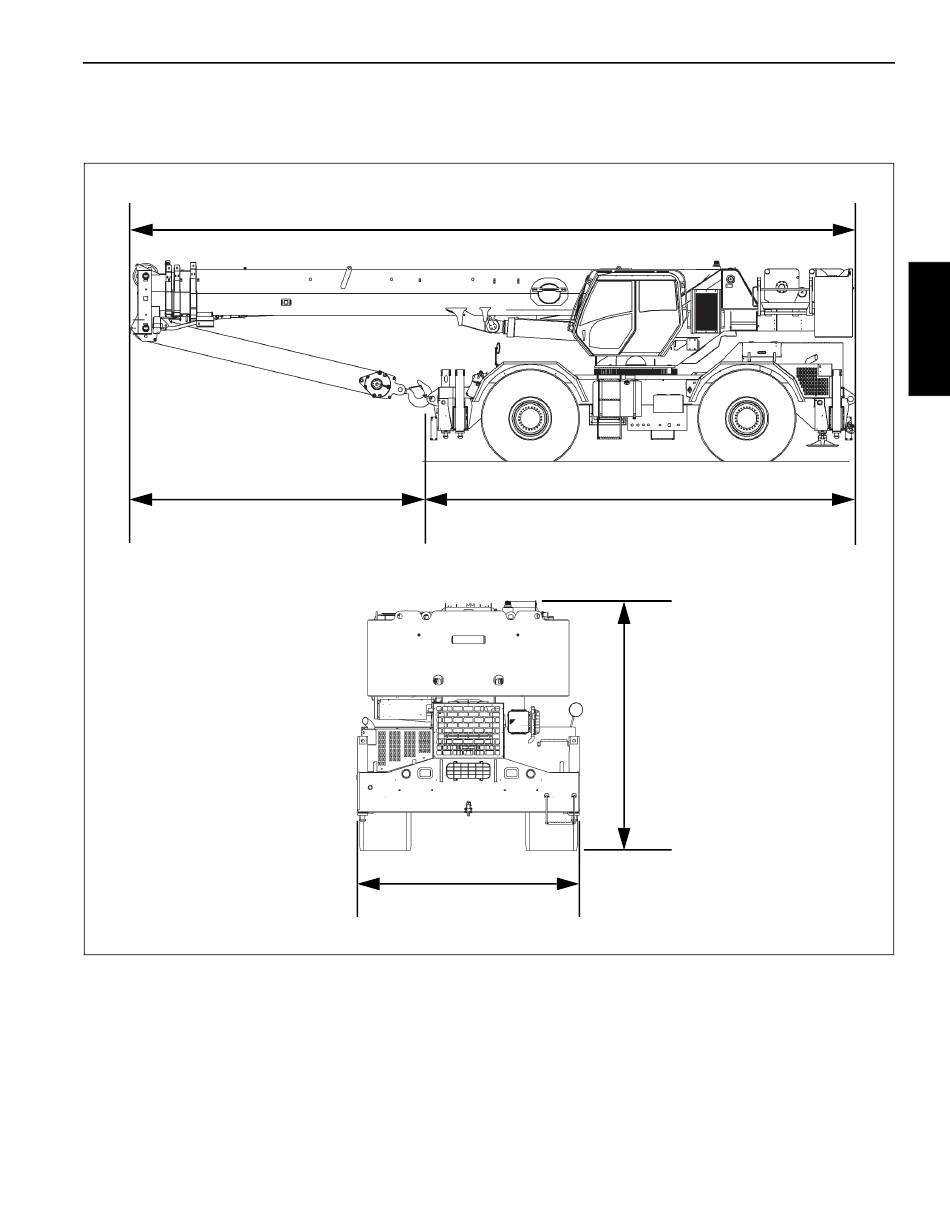

For overall dimensions of the crane, refer to Figure 1-3.
13607 mm
(44 ft 7.7 in)
1
5562 mm 8045 mm
(218.97 in) (316.75 in)
3603 mm
(11 ft 10 in
3334 mm
(131.25 in)
FIGURE 1-3
