Front Panel Controls and LEDs

1
Power button
2 LEDs
Cisco Wide Area Virtualization Engine 274 and 474 Hardware Installation Guide
1-2
This section illustrates and describes the front and back panel controls, ports, and
LED indicators on the WAVE-274 and WAVE-474. It contains the following
topics:
Front Panel Controls and LEDs, page 1-2
•
Location of Ports and Connectors, page 1-3
•
Figure 1-1 shows the front panel controls and LEDs.

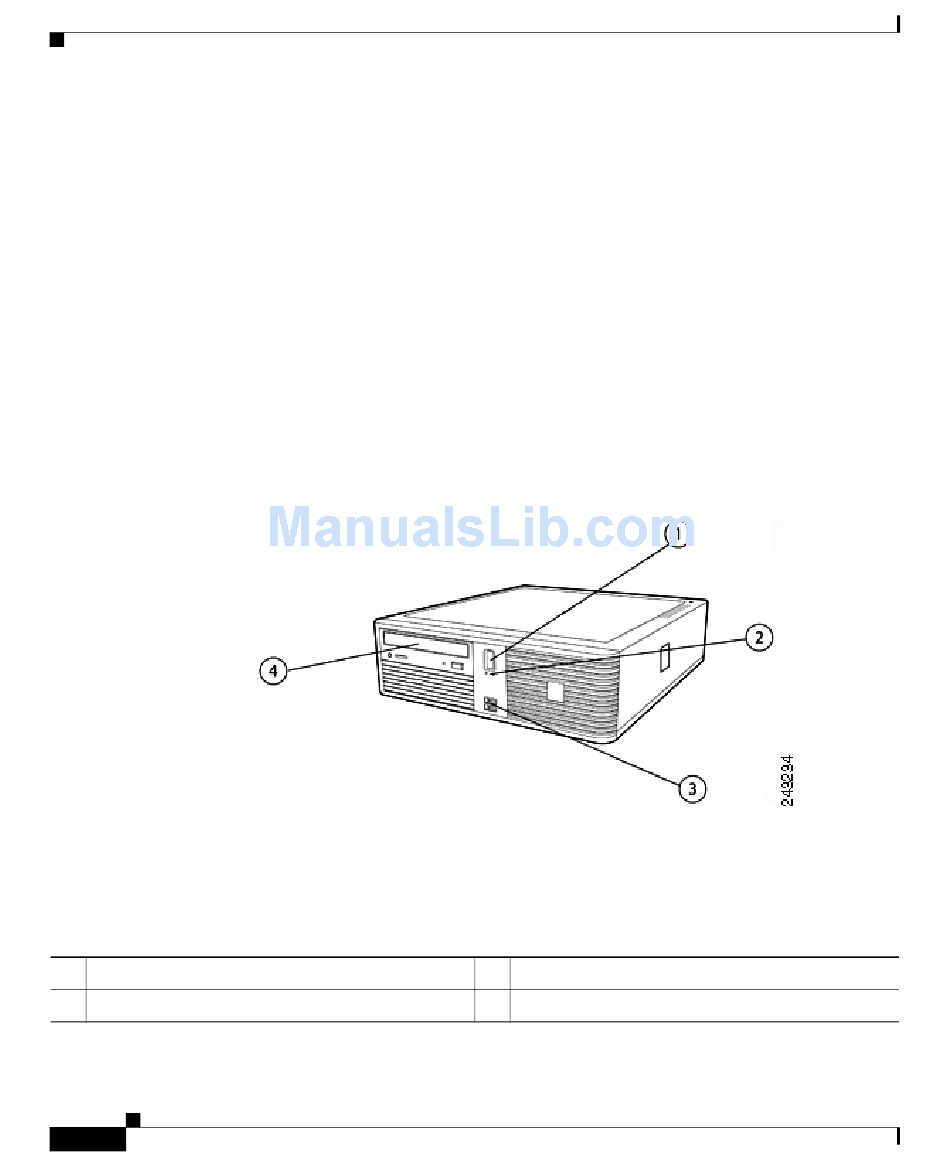

Figure 1-1 WAVE-274 and WAVE-474 Front Panel
Chapter 1 Introducing the Cisco Wide Area Virtualization Engine
3
2 USB 2.0 ports (not supported)
4 CD/DVD optical drive
