Chapter 1 Introducing the Cisco Wide Area Virtualization Engine
Hardware Features
Console Port Serial Connector
The WAVE-274 and WAVE-474 appliances have one console port (see
Figure 1-4). Use the console port serial connector to connect to a console for
accessing the WAAS command-line interface (CLI) or other serial device.

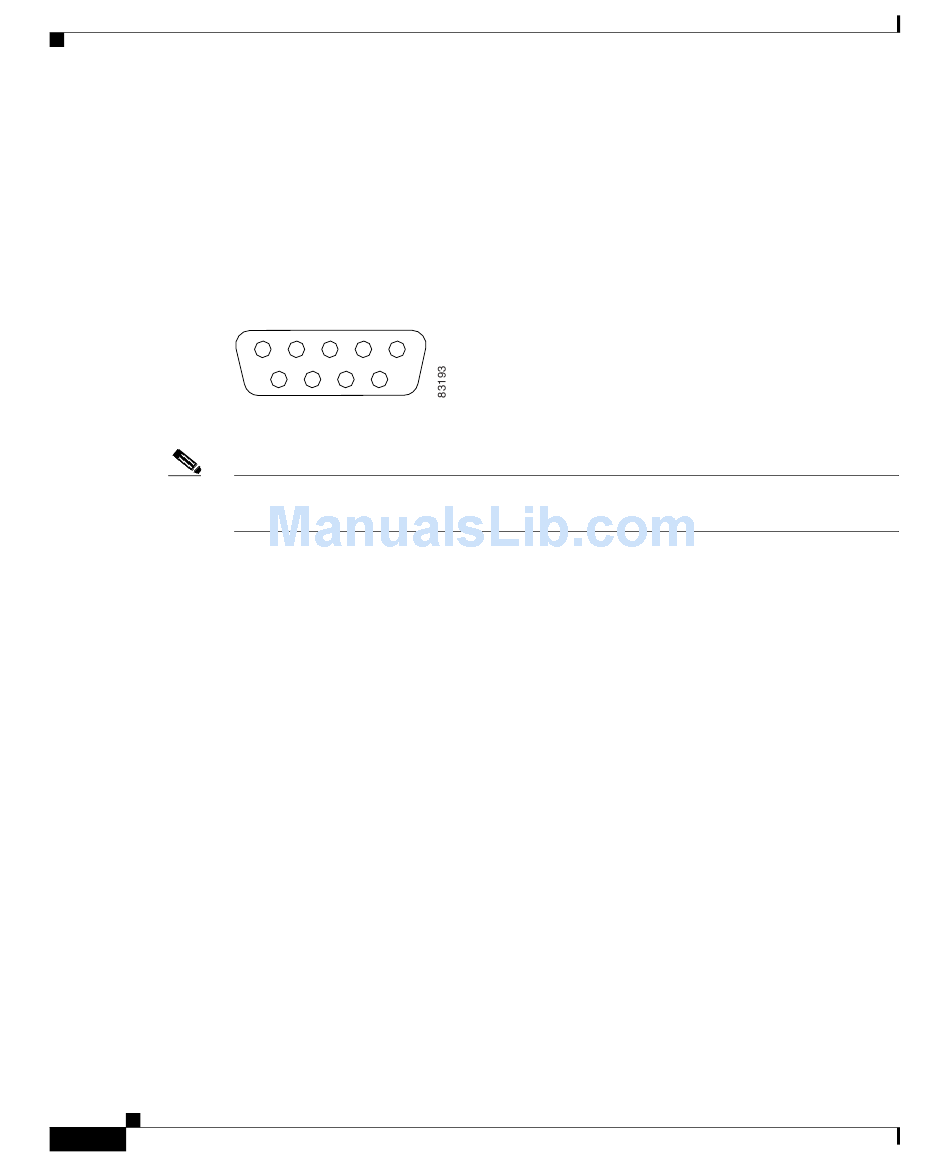

Figure 1-4 Console Port Serial Connector
5
1
6 9
Note The WAVE appliance has two serial ports on the rear panel. Be sure to connect
your console cable only to the port labeled COM1 or CONSOLE.
