Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Operation

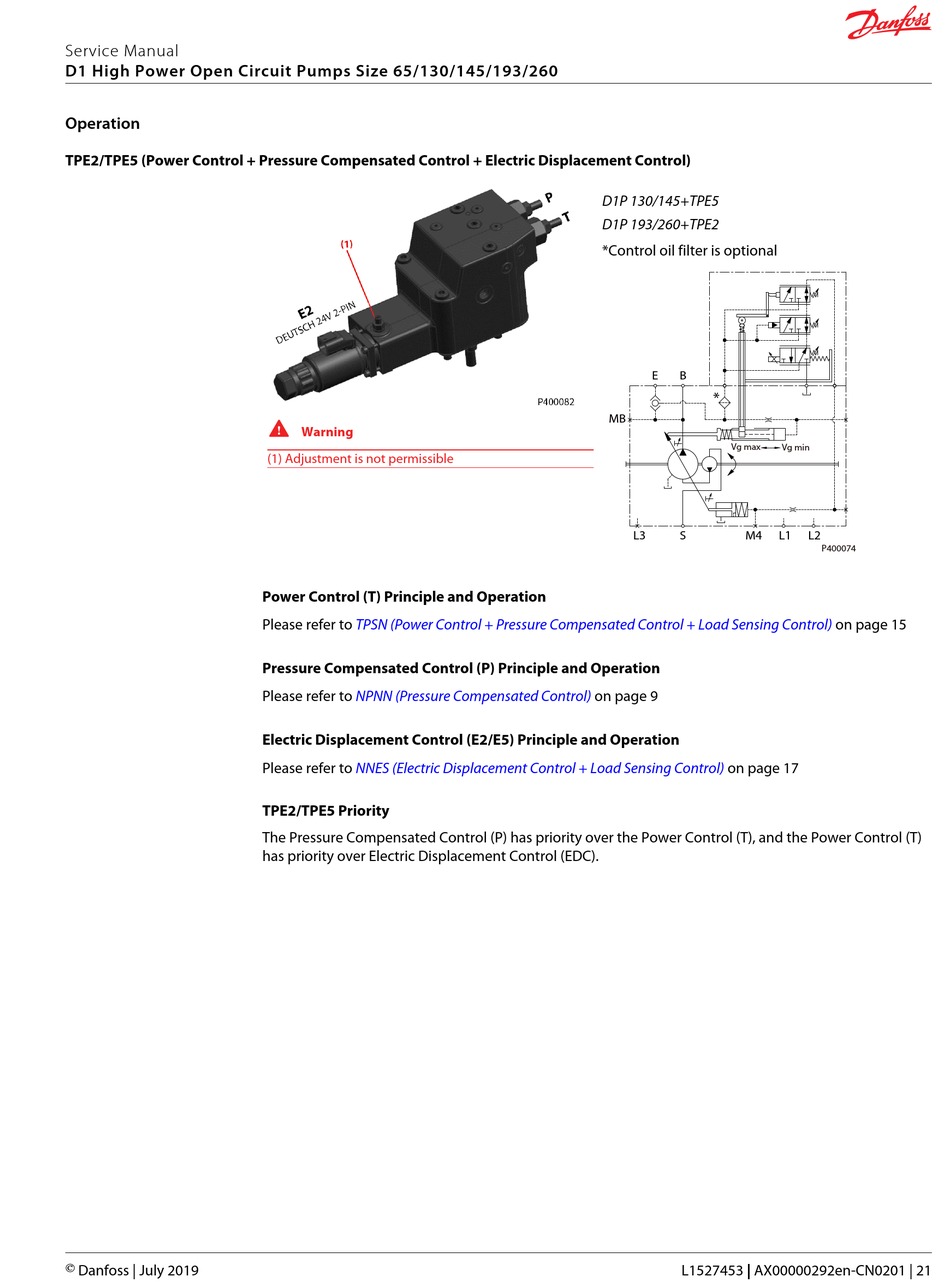

TPE2/TPE5 (Power Control + Pressure Compensated Control + Electric Displacement Control)

© Danfoss | July 2019
W
Warning
(1) Adjustment is not permissible
Power Control (T) Principle and Operation
Please refer to TPSN (Power Control + Pressure Compensated Control + Load Sensing Control)
Pressure Compensated Control (P) Principle and Operation
Please refer to NPNN (Pressure Compensated Control)
Electric Displacement Control (E2/E5) Principle and Operation
Please refer to NNES (Electric Displacement Control + Load Sensing Control)

TPE2/TPE5 Priority

The Pressure Compensated Control (P) has priority over the Power Control (T), and the Power Control (T)
has priority over Electric Displacement Control (EDC).
D1P 130/145+TPE5
D1P 193/260+TPE2
*Control oil filter is optional
E B
*
MB
Vg max
L3 S M4
on page 9
on page 17
L1527453 | AX00000292en-CN0201 | 21
Vg min
L1 L2
P400074
on page 15
