Port Locations And Gauge Instalation (193/260) - Danfoss D1 Series Service Manual

Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Pressure measurements

Port Locations and Gauge Instalation (193/260)

30 | © Danfoss | July 2019
Port Purpose
L1, L2, L3
Case drain
M
Outlet
B
M
Servo piston chamber
4

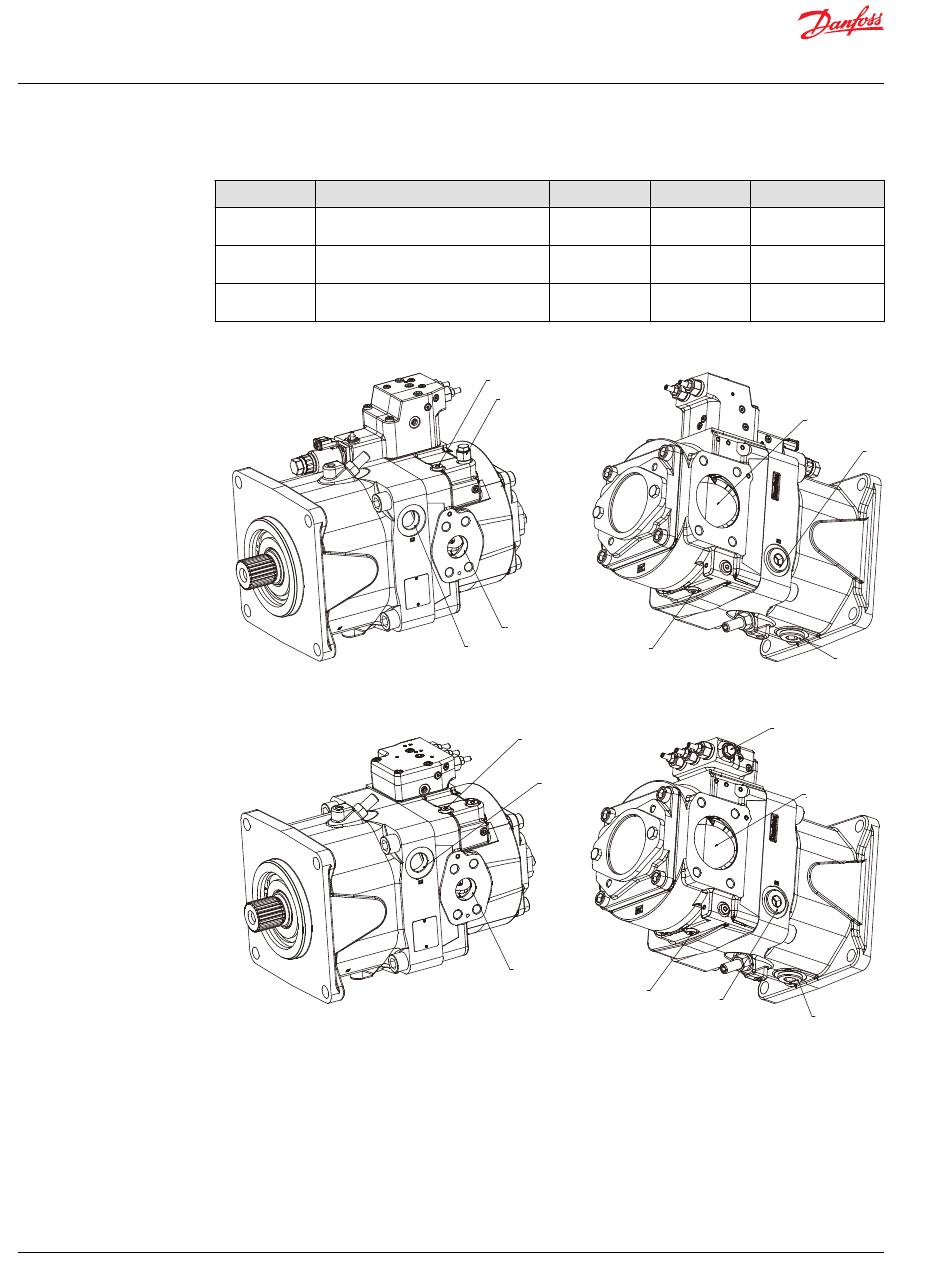

193/260 Port location, Control type: TPE2
193/260 Port location, Control type: TPSN
Port size
M33x2
M12x1.5
M12x1.5
MB
E : External Control
Port
B : Outlet Port
L1
M4
MB
L1
B : Outlet Port
M4
Wrench size Range of gauge
17 mm 0-60 bar [0-870.23
psi]
6 mm 0-600 bar [0-870.23
psi]
6 mm 0-600 bar [0-870.23
psi]
S : Inlet Port
X : Load Sensing
Signal Port
S : Inlet Port
L2
L3
L1527453 | AX00000292en-CN0201
L2
L3
P400092
