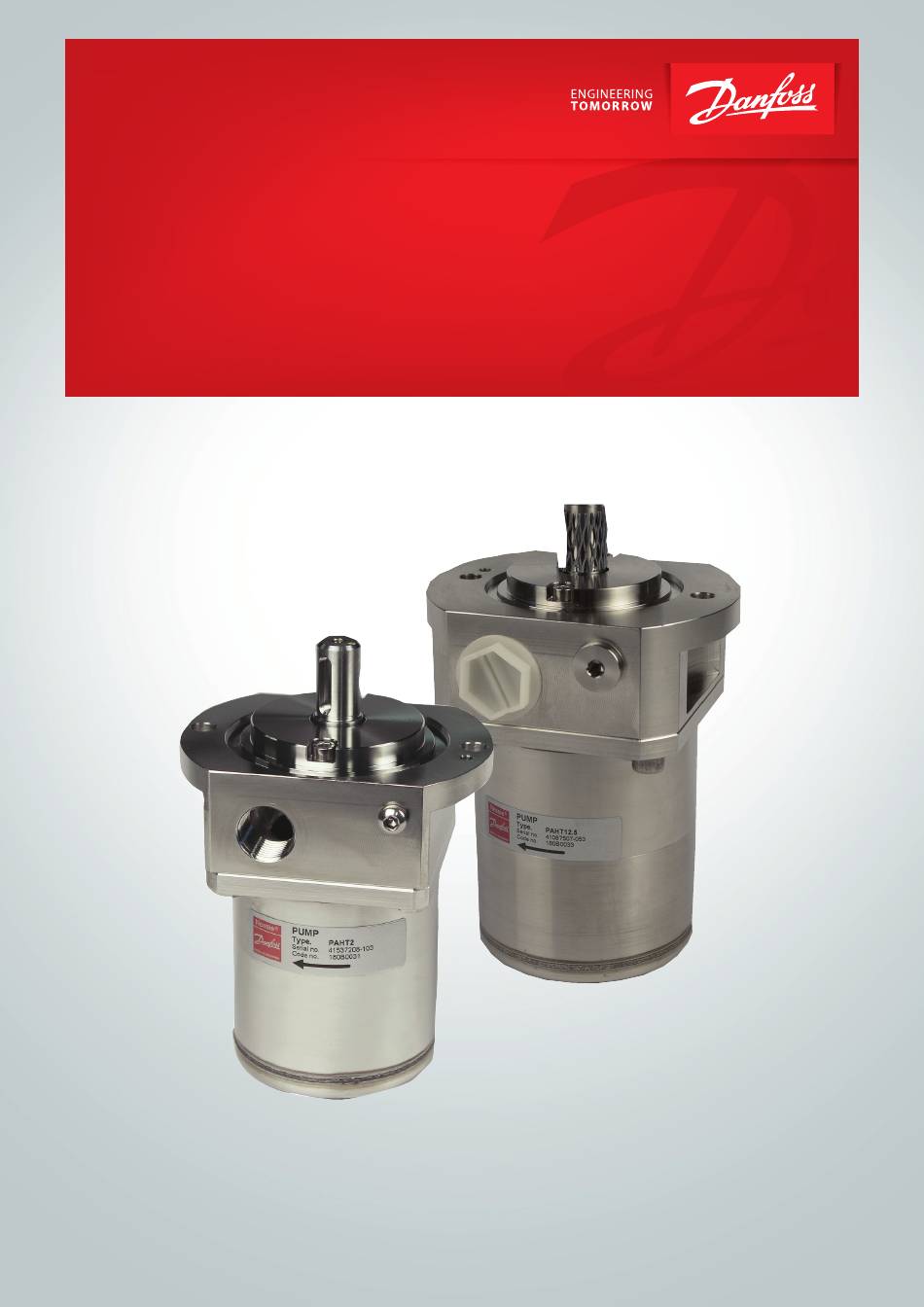

Operating guide PAHT 2-12.5 pumps This manual is valid for PAHT pumps with the following code numbers/serial numbers: Validity Code no. 180B0031 PAHT 2.0 Serial no. XXXXXX08-XXX Code no. 180B0077 PAHT 3.2 Serial no. XXXXXX03-XXX Code no. 180B0030 PAHT 4.0 Serial no.
It is important that these instructions are The PAHT pumps and pump units are manufac- always available to the personnel concerned. tured by Danfoss A/S, and are sold and marketed by a net of authorized distributors world wide. If the recommendations in the manual are...
Operating guide PAHT 2-12.5 pumps Web: hpp.danfoss.com 1.3 Manufacturer and customer service Your local Danfoss pump distributor can be address: found on our homepage. Danfoss A/S High Pressure Pumps 1.4 Country speci c information Nordborgvej 81, 1.4.1 United Kingdom DK-6430 Nordborg...
2.4 Adhere to the following important points 2.5 In case of doubt Please contact Danfoss A/S in case of doubt. • Before using the pump/pump unit it is very Contact information are listed in section 1.3, important to read and understand this user Manufacturer and customer service address.
2, Instruction. 3.9 Air bubbles Large bubbles in a pressurised system can result Danfoss recommends not to build a lter bypass in damage to piping, equipment and the pump. function or use lters with an integrated bypass.
Operating guide PAHT 2-12.5 pumps Pumps which have a weight above 20 kilos (see Wrong lifting: appendix 1, Data sheet) must be handled by using lifting eyes and slings. When lifting the pump unit, one sling must be attached to the electric motor and one sling around the pump.
Operating guide PAHT 2-12.5 pumps Installation and commissioning 5.1 Important dimensions Physical dimensions and connections of the 5.3 Fluid temperature pump unit are described in appendix 1, Data Before start-up, the uid and pump housing sheet. temperature must be within the speci ed temperature range listed in appendix 1, Data sheet.
Operating guide PAHT 2-12.5 pumps 5.6 Pre mounting checklist, based on Danfoss preferred system designs Table 1: Check points when assembling and commissioning system Check points Comment OK ? Ensure that the environmental conditions are safe. See Arrival inspection, transportation, handling, lifting and storage, chapter 4.
5.15. • Start high-pressure pump for 2 minutes, to Danfoss o ers commissioning and service at make sure all air is out of the system. system manufacturer’s location. Rate quotes are o ered upon request.
2, Instruction. are either damaged or running very close to their design pressure, stop the unit Danfoss o ers service of the pump at the system immediately. Contact the maintenance manufacturer’s location as well as we o er department.
4, Parts list. If the pump is going to be returned to Danfoss for repair or a warranty claim, it is important to contact Danfoss in order to receive a return number and a form to ll out with product information.
There is excessive mechanical load on the unit is. Please use appendix 5, Trouble shooting shaft coupling and piping. guide as guideline or send the pump to Danfoss headquarter in Denmark for evaluation. For other observations or troubles, please see...
E cient design and all-stainless steel No pulsation dampeners necessary due construction ensure exceptionally long to extremely low-pressure pulsation. lifetime. When Danfoss speci cations Powered by electric motors or combus- are met, service intervals of up to 8,000 tion engines.
To determine the correct motor size, both the power and torque requirement must be veri ed. The mechanical e ciency of the pump, at max pressure, is as follows: PAHT 2, 3.2, 4, 6.3 PAHT 10, 12.5 0.95 PAHT 20, 25, 32, 50, 63, 70, 80, 90 0.95...
Inlet lter: Install the inlet lter (1) in front of the PAHT speci cations described in item 4, technical pump (2). Please consult the Danfoss lter data. data sheet for guidance on how to select Non-return valve (6): Should be installed after the outlet to the right lter.
Non-return valve (7): Install the lter (1) in front of the tank (2). Should be installed after the outlet to Please consult the Danfoss lter data sheet prevent pump backspin, which may ruin the pump. for guidance on how to select the right lter.
Operating guide PAHT 2-12.5 pumps Danfoss PAHT pumps are designed for long Other factors that a ect pump performance and Service periods of service-free operation to ensure low lifetime include: maintenance and life cycle costs. Provided that the pump is installed and operated according to •...
Non-return valve (7): Install the inlet lter (1) in front of the tank Should be installed after the outlet to (2). Please consult the Danfoss lter data prevent pump backspin, which may ruin the pump. sheet for guidance on how to select the right lter.
Inlet lter: Install the inlet lter (1) in front of the PAHT and other pump damage, pump inlet pump (2). Please consult the Danfoss lter pressure must be maintained according to data sheet for guidance on how to select speci cations described in item 4, technical data.
The pressure loss across the lter should be to settle. monitored. Pump suction line should be placed above the • Please contact the Danfoss Sales Organiza- tank bottom in order to prevent settled particles tion for further lter details. from being led into the pump. Water tank...
Operating guide PAHT 2-12.5 pumps We recommend a separation (“wall”) to separate Monitoring the inlet from the outlet end of the tank. It is recommended to continuously monitor the following conditions: • Water level in the tank • Filter contamination •...
The valve should be placed as close to the pump to the pump suction line. It shall be connected as possible. directly to the tank. 3.5 Connections PAH / PAHT 2-6.3 PAH / PAHT 10-12.5 M6; Allen key G 1⁄4, NV6 Thread size G 1⁄4 x 11...
Operation 5.1 Water quality Water of drinking water quality, con rming to the EEC directive 98/83/EC and without abrasive sediments. Please contact Danfoss sales 5.5 Disconnection organization in case of doubt. If the inlet line is disconnected from the water supply, the pump will be emptied of water through the disconnected inlet line.
The pump is now protected against internal The pump is now protected against internal corrosion and frost. corrosion and frost. The Danfoss PAHT pumps are designed for long Service In our experience, poor ltration is the number periods of service-free operation to provide one cause of pump damage.
Page 54
Operating guide PAHT 2-12.5 pumps Motor Manual etc.) using suitable tools, never hit the drive components General with a hammer as this will cause damage to the bearing. This manual concerns the following types of standard The motor are balancing with half key, ensure that the drive induction motors from Hoyer: components are also the same.
Page 55
Operating guide PAHT 2-12.5 pumps Motor Manual connections must be checked and tightened if necessary. The table values are based on an ambient temperature of Bearing size and type are specified on the rating plate. Motor 25°C. The values must be halved for every 15K increase in types HMA3 and HMC3 is as standard with lifetime greased bearing temperature.
Page 67
Operating guide PAHT 2-12.5 pumps Spare parts list for PAHT 20-32 Pos. Qnt. Designation Material Shaft bush, topedo Press bush Housing AISI 316 Pin Ø4 x 14 AISI 304 Screw M8 x 16 AISI 304 O-ring Ø102 x 3 End cover CW...
Page 69
Operating guide PAHT 2-12.5 pumps Spare parts list for PAHT 50-90 Pos. Qnt. Designation Material Shaft bush, torpedo Press bush Housing AISI 316 Pin ø4 x 14 AISI 304 Screw M8 x 20 AISI 304 O-ring ø135 x 3 End cover CW...
Operating guide PAHT 2-12.5 pumps Spare parts list for PAHT 256-308 Serial number 03 or higher Pos. Qty. Designation Material Designation Material Housing Duplex / PEEK Pin ø6 x 10 AISI 316 Bleeding plug G 1/4" Super duplex O-ring ø11 x 2...
Operating guide PAHT 2-12.5 pumps Tool set for PAHT 256-308 Designation Shaft bush, torpedo Press tool Mounting screw Allen key, 6 mm Adjustable pin wrench Combination wrench, 10 mm Combination wrench, 13 mm Nut, M8 x 6.5 x 13 Guide bolt, M8 x 140 Shaft seal extractor, Ø45...
1.4.3 Check that electric motor is sized correctly. 1.4.4 Check that the electrical installation is correctly sized. 1.4.5 Contact Danfoss Sales o ce for guidelines in how to troubleshoot internal pump parts. 1.5.1 Ensure that the air gap between the two To ensure easy mounting of the exible coupling 1.5 Axial load on pump shaft...
Some lters can create (particles in uid must not exceed 10 m). channelling where particles can pass through Danfoss High Pressure Pumps supplies the lter in tunnels. String wounded lters are lters, please contact the sales o ce.
3.2.3 Systems with more than one electric motor torque caused by high outlet pressure. installed: Start motors simultaneously. 3.3.1 Please contact Danfoss High Pressure If the electric motor is too small for the pump, it 3.3 Constant torque Pumps sales o ce.
4.6.2 If outlet pressure is lower than mentioned Too low pressure also causes insu cient internal in the pump data sheet, please contact lubrication and wear on internal parts. Pump Danfoss High Pressure Pumps technical may eventually be damaged. support. 4.6.3 If outlet pressure has exceeded its Too high outlet pressure may damage the pump.
Operating guide PAHT 2-12.5 pumps Noise from installation Cause Remedy Comments 5.1.1 Use exible hoses at inlet/outlet connec- Non- exible connections mounted directly on 5.1 Inlet/outlet connections (hoses/pipes) tions. the frame will cause even small pressure pulsations from pump and create vibrations in the system/plant.
Operating guide PAHT 2-12.5 pumps Typical signs of wear 6.1 Valve plate Picture 1 A normally worn valve plate has no marks/scratches but only a slightly polished surface. No scratches or marks should be felt. The surface must be at and level.
To check this, please see item 6.1, picture 3. If the surface has any marks/scratches, it is worn/damaged and a new one is required. Please contact Danfoss High Pressure Pumps sales o ce for further infor- mation. 86 | 180R9287_AQ073186503097en-001004...
Page 90
Pump location Operating guide PAHT 2-12.5 pumps Design Pump always to be placed below water Pump location above water surface surface level level will cause damage Choice of material Suction conditions Iron Rubber Copper Plastic Brass Stainless steel Aluminium System to be dimensioned to provide...
Operating guide PAHT 2-12.5 pumps Installation Assembly of coupling Impurities Never use force when assembling the Chips or other impurities in the system The coupling must be easy and simple coupling parts, as this will damage the may cause damage...
Operating guide PAHT 2-12.5 pumps Wiring Starting procedure Cleaning procedure 1. Fill cold water into the system via the return lter and Level indicator bleed the pump (Power Packs PPH 4 - 6.3 - 10 and 12.5 are self-bleeding) 2. Start and bleed the system -without pressure by opening the bypass valve 3.
Trouble shooting Open ended water systems Operating guide PAHT 2-12.5 pumps No water supply Is the water supply ok? Is water supplied to the pump? Lower inlet Is water coming Is the water in the tank Is the electric motor of...
