Service Manual
D1 High Power Open Circuit Pumps Size 65/130/145/193/260
Operation
© Danfoss | July 2019
W
Warning
Do not actuate the MOR unless the machine is in a "SAFE" mode. Unintended MOR operation will cause
the pump to go into stroke, use only for diagnosis purposes.

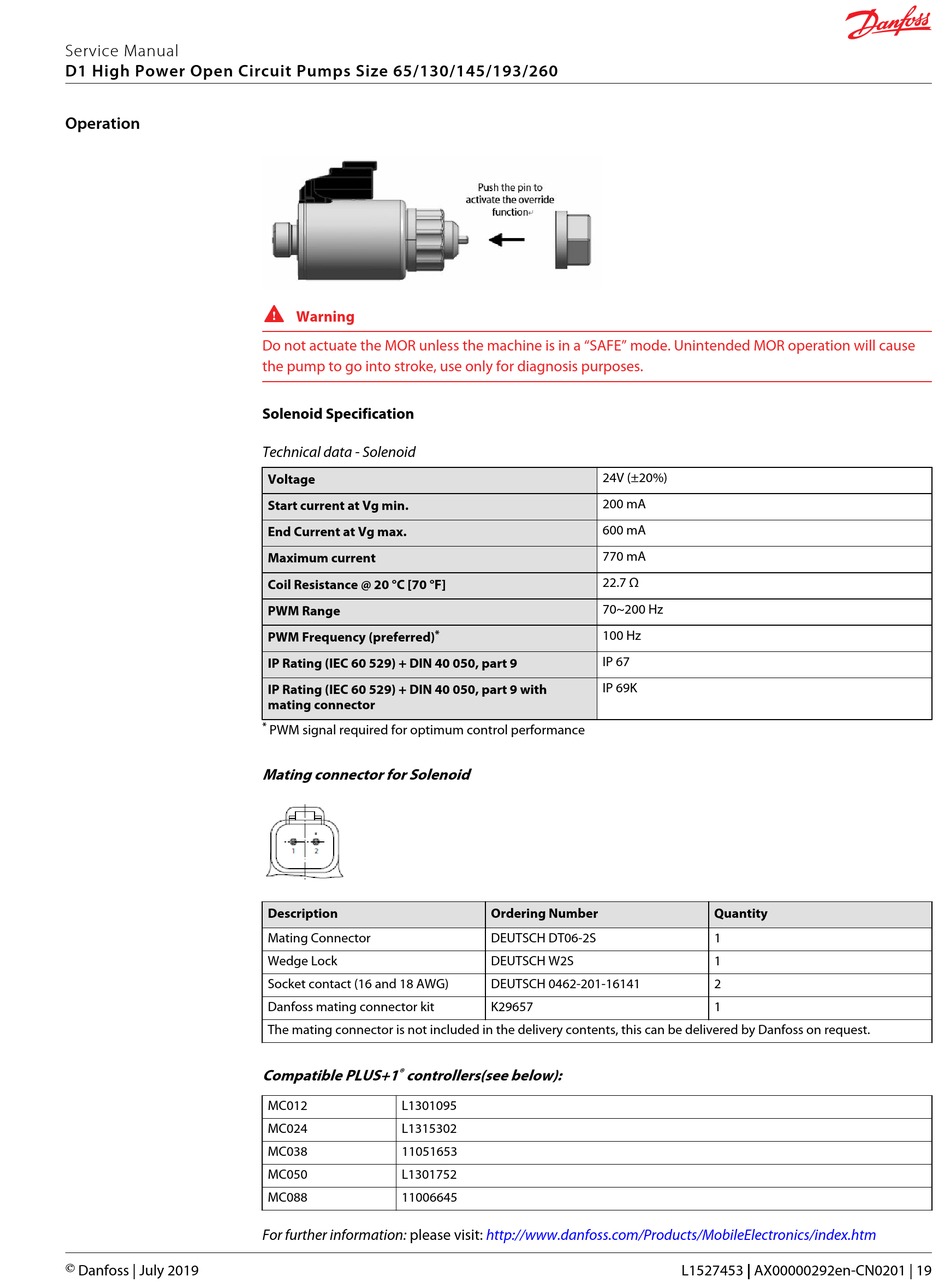

Solenoid Specification

Technical data - Solenoid
Voltage
Start current at Vg min.
End Current at Vg max.
Maximum current
Coil Resistance @ 20 °C [70 °F]
PWM Range
*
PWM Frequency (preferred)
IP Rating (IEC 60 529) + DIN 40 050, part 9
IP Rating (IEC 60 529) + DIN 40 050, part 9 with
mating connector
*
PWM signal required for optimum control performance
Mating connector for Solenoid
Description
Mating Connector
Wedge Lock
Socket contact (16 and 18 AWG)
Danfoss mating connector kit
The mating connector is not included in the delivery contents, this can be delivered by Danfoss on request.
Compatible PLUS+1 ® controllers(see below):
MC012 L1301095
MC024 L1315302
MC038 11051653
MC050 L1301752
MC088 11006645
For further information: please visit:
24V (±20%)
200 mA
600 mA
770 mA
22.7 Ω
70~200 Hz
100 Hz
IP 67
IP 69K
Ordering Number
DEUTSCH DT06-2S
DEUTSCH W2S
DEUTSCH 0462-201-16141
K29657
http://www.danfoss.com/Products/MobileElectronics/index.htm
Quantity
1
1
2
1
L1527453 | AX00000292en-CN0201 | 19
