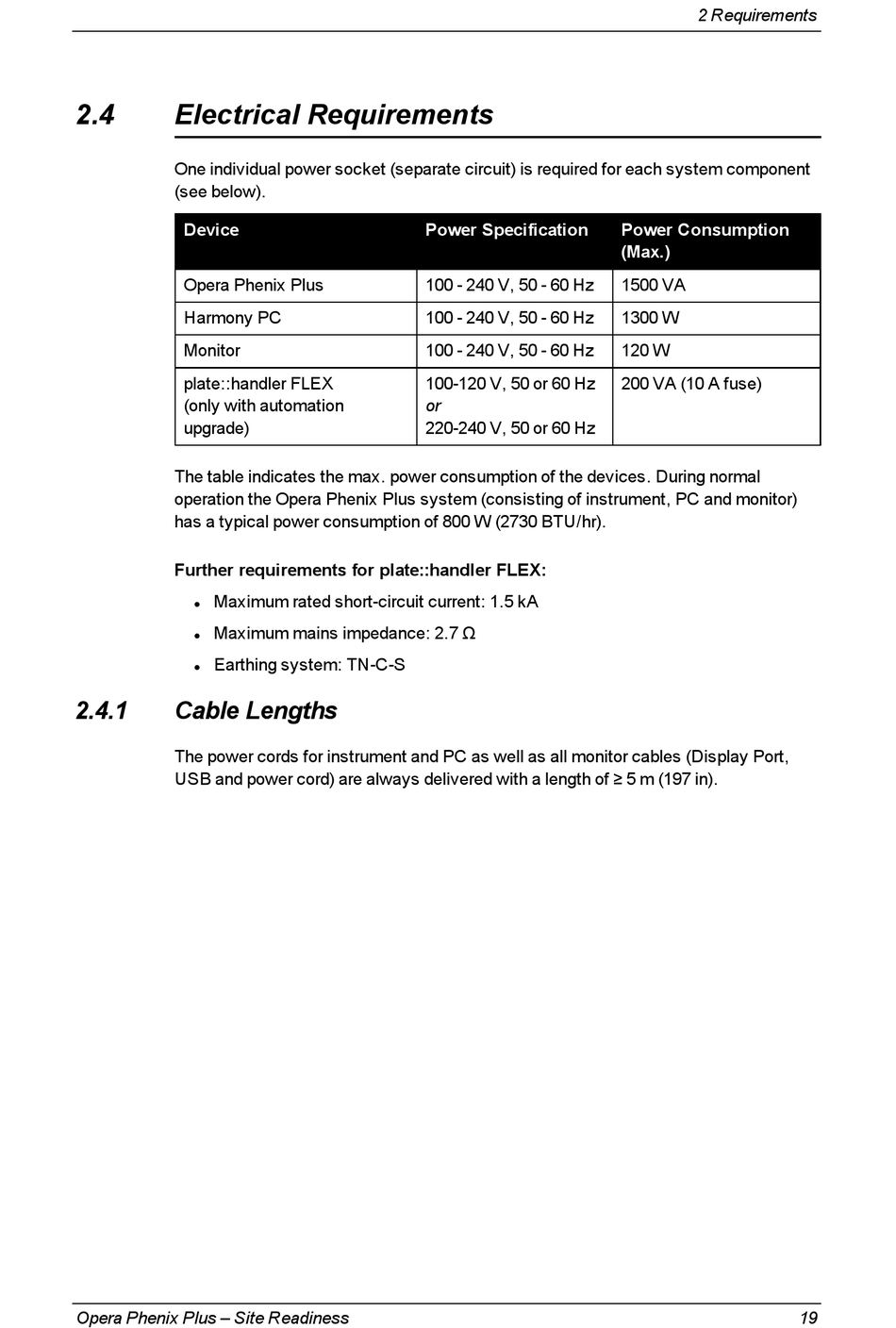

2.4

Electrical Requirements

One individual power socket (separate circuit) is required for each system component
(see below).
Device
Opera Phenix Plus
Harmony PC
Monitor
plate::handler FLEX
(only with automation
upgrade)
The table indicates the max. power consumption of the devices. During normal
operation the Opera Phenix Plus system (consisting of instrument, PC and monitor)
has a typical power consumption of 800 W (2730 BTU/hr).
Further requirements for plate::handler FLEX:
Maximum rated short-circuit current: 1.5 kA
l
Maximum mains impedance: 2.7 Ω
l
Earthing system: TN-C-S
l
2.4.1

Cable Lengths

The power cords for instrument and PC as well as all monitor cables (Display Port,
USB and power cord) are always delivered with a length of ≥ 5 m (197 in).
Opera Phenix Plus – Site Readiness
Power Specification
100 - 240 V, 50 - 60 Hz
100 - 240 V, 50 - 60 Hz
100 - 240 V, 50 - 60 Hz
100-120 V, 50 or 60 Hz
or
220-240 V, 50 or 60 Hz
2 Requirements
Power Consumption
(Max.)
1500 VA
1300 W
120 W
200 VA (10 A fuse)
