2.3.3
Installation with Automation Upgrade
2.3.3.1
plate::handler FLEX

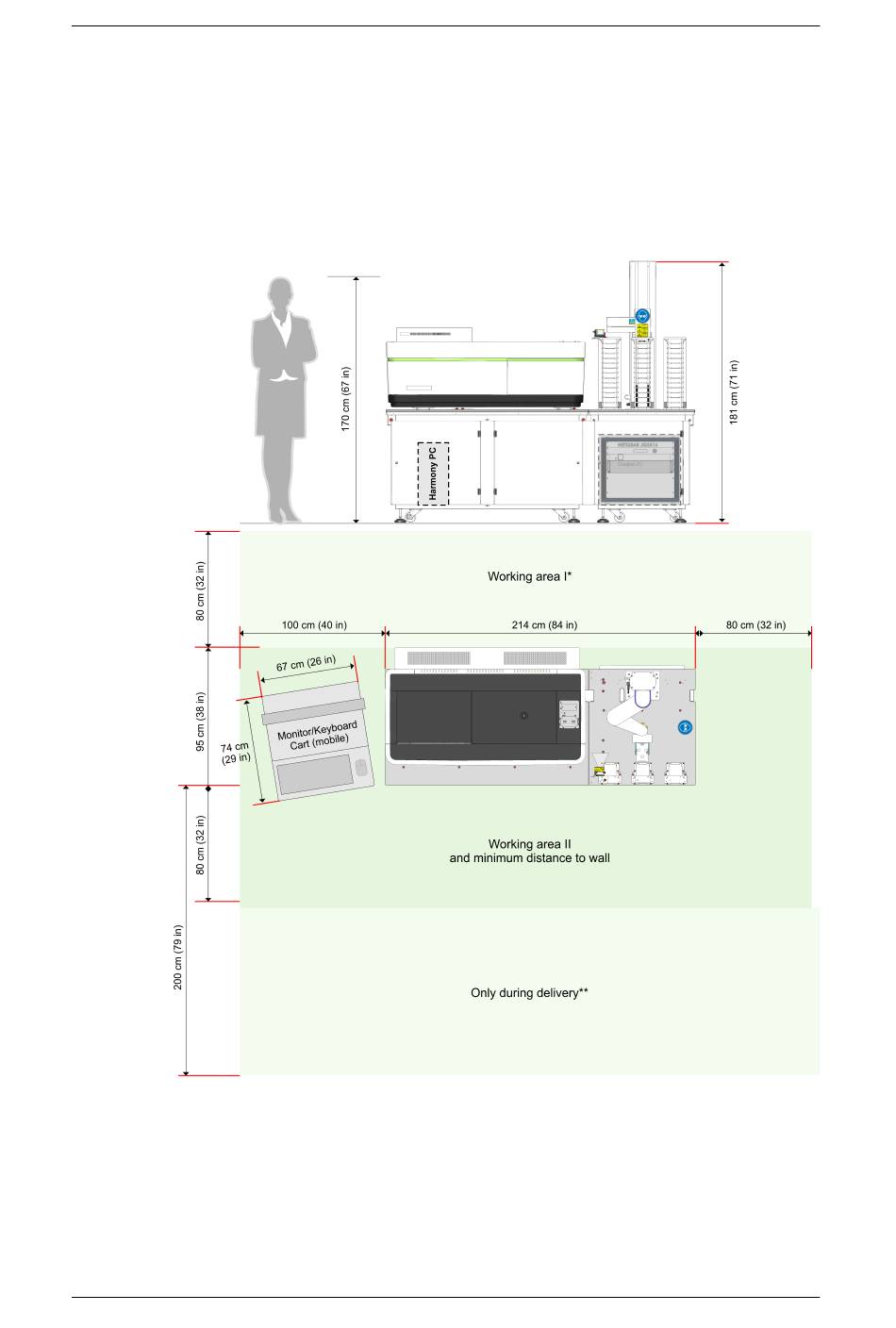

With the optional automation upgrade, the Opera Phenix Plus and the plate::handler
FLEX robot are installed on the provided workstation. An installation on tables provided
by the customer is not possible.
* "Working area I" is required during service visits. The depth of this area can be
reduced from 80 to 15 cm if the automation system consists only of the plate:handler
robot (no incubator) and if the entire system is rollable.
** If the space required during delivery is not available in the lab, installation can also
take place in a different room, as long as the table can be rolled to the destination lab.
Opera Phenix Plus – Site Readiness
2 Requirements
17
