System Board Removal/Replacement

Removing the Bus Bar Shield

1. Remove the bus bar shield by pulling outward on its latch, and then

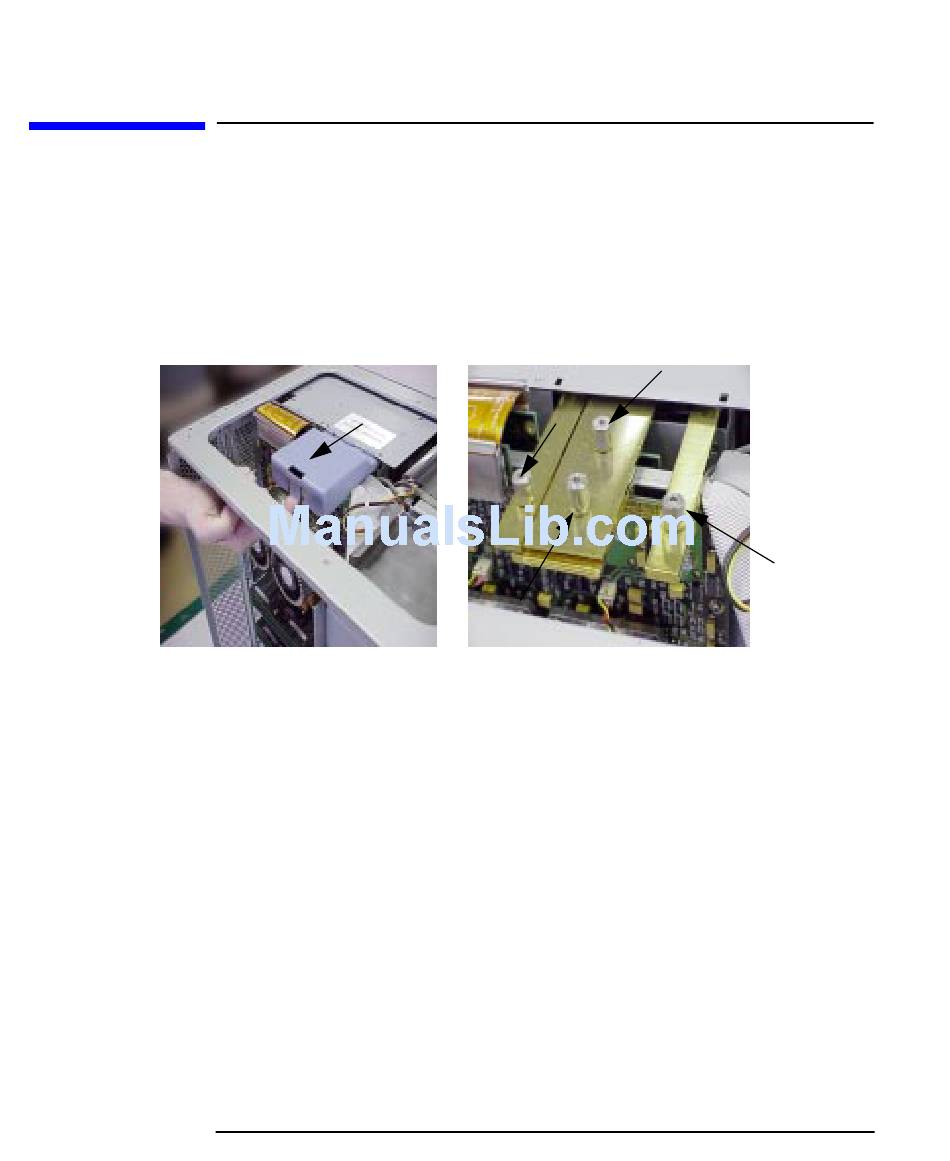

Figure 2-5

Removing the Bus Bar Shield

Step 1: Remove Bus bar Shield

2. Remove the four T-15 Torx thumbscrews from the power supply bus

lifting it up. This shield can be used to hold the screws you will

remove in the next step.

bar. The bus bar screws are longer than the other T-15 Torx screws.

Step 2: Remove Bus bar Screws

Chapter 2
