Wiring Diagram - Directed DIRECTECHS DS3 Plus Installation Manual

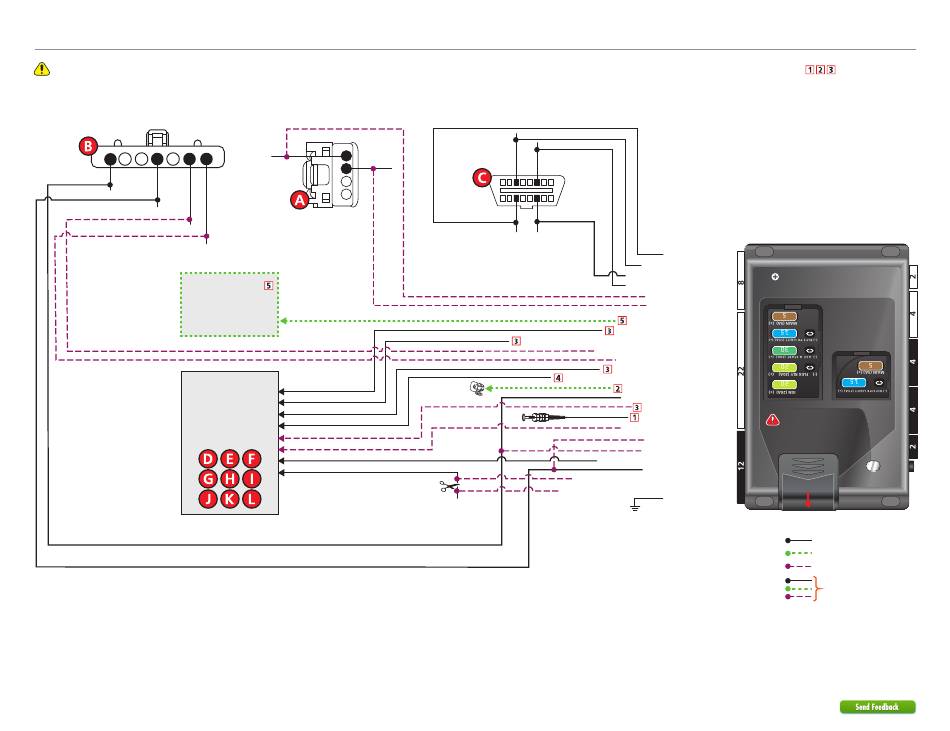

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Ignition Switch
(black connector)
1 2 3 4 5 6 7
(+) Ignition: Pin 1
(+) 12V: Pin 4
(+) Accessory: Pin 6
(+) Starter: Pin 7
Refer to the
"Optional starter
disable connection"
section for relay and
connection details.
Refer to the
"Vehicle
connections"
section for the
connector, pin
and wire color.
7 933.FORD6 3.24.195.3 2010 Lincoln MKS
