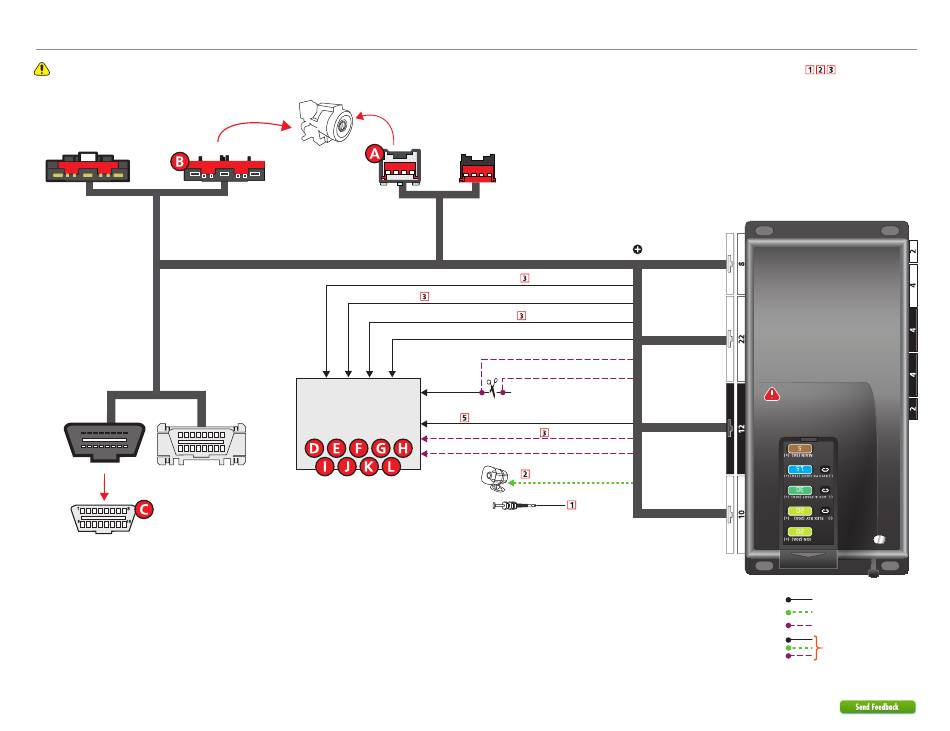

Wiring diagram with T-Harness (THFON1)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Ignition Switch
Connector
(connector side)
1
1 2 3 4 5 6 7
2 3
male
female
OBDII Diagnostic
6 933.FORD6 3.24.195.3 2010 Lincoln MKS
©2022 VOXX•DEI LLC. All rights reserved.
Ignition
Barrel
4 7
5 6
Refer to the
"Vehicle connections"
section for the connector,
pin and wire color.
P.A.T.S.
4-pin Connector
(connector side)
THFON1
(optional T-Harness for
(-) Lock Output: Green/Black
(-) Trunk/Hatch Release/Power Liftgate Output: Red/White
(-) Unlock Output: Blue/Black
(+) Parking Lights Output: White
RAP Off Interrupt: Lt. Green
RAP Off Interrupt: Lt. Green/White
Cut
Driver's Door Trigger
(-) Factory Alarm Disarm Output: Lt.Blue/Black
(+) Brake Input: Brown
(AC) Tach Input: Violet/White
(+) Siren Output: Brown/Red
Siren
Hood Pin: Gray
Hood Pin
module only)
8-Pin White Connector
22-Pin White Connector
IMPORTANT:
Position the
fuses correctly!
12-Pin Black Connector
10-Pin White Connector
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
).
Remote Start + Security
