Fig. 12
before proceeding with installation .

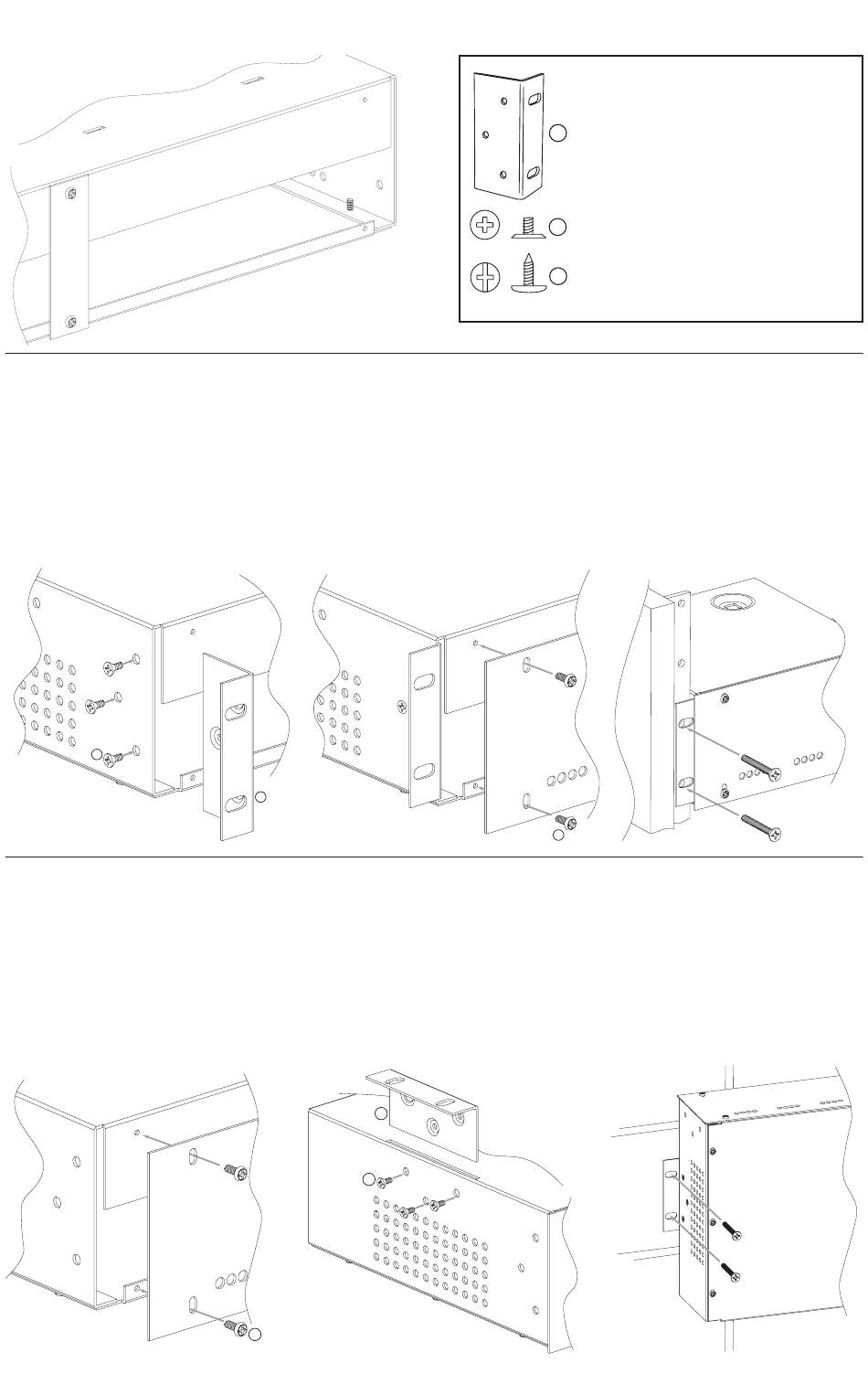

Rack Mount Installation

1 . Remove center brace from rack mount chassis (Fig. 12) .
2 . Slide mounting brackets (A) into slots located on left and right side of rack enclosure (Fig. 13a).
Use three (3) flat head screws (B) to secure brackets .
3 . Carefully place faceplate over LEDs, and secure using three (3) pan head screws (C) on top and
three (3) pan head screws (C) on the bottom of faceplate (Fig. 13b).
4 . Slide unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 13c).
Fig. 13
Fig. 13a
B

Wall Mount Installation

1 . Carefully place faceplate over LEDs, and secure using three (3) pan head screws (C) on top and three (3)
pan head screws (C) on the bottom of faceplate (Fig. 14a).
2 . Place mounting brackets (A) onto the side of the left and right side of rack enclosure (Fig. 14b).
Use three (3) flat head screws (B) to secure mounting brackets .
3 . Mount rack and secure with mounting screws (not included) (Fig. 14c).
Fig. 14
Fig. 14a
- 10 -

Mounting Options:

Remove center brace
from rack mount chassis
A
A
B
C
Two (2) mounting brackets .
A
Eight (8) flat head screws
B
for mounting brackets .
C
Eight (8) pan head screws
for faceplate .
Fig. 13b
C
Fig. 14b

Mounting Hardware

(Included):
Fig. 14c
MaximalRDV Rack Access Power Controllers (PTC)
Fig. 13c
